NEC Corporation Express5800/GT110b SPECpower_ssj2008 = 1,730 overall ssj_ops/watt
Test Sponsor: NEC Corporation SPEC License #: 9006 Test Method: Single Node
Tested By: NEC Corporation Test Location: Fuchu, Tokyo, Japan Test Date: Feb 15, 2010
Hardware Availability: Apr-2010 Software Availability: May-2009 Publication: May 13, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 95.9 20.8
Calibration 2 99.4 20.7
Calibration 3 100 20.7
100% 100 20.7
90% 93.6 20.7
80% 86.1 20.6
70% 77.0 20.5
60% 68.0 20.5
50% 59.8 20.5
40% 53.0 20.6
30% 46.6 20.6
20% 41.5 20.6
10% 37.2 20.6
Active Idle 32.6 20.6

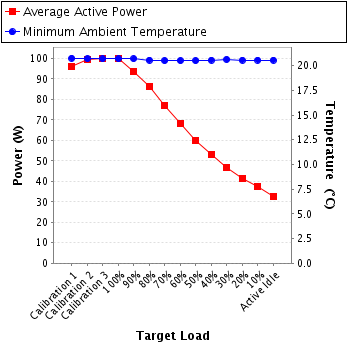

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91H928026
Connectivity: RS-232C
Input Connection: Default
Calibration Institute: AIST (National Institute of Advanced Science and Technology)
Accredited by: JQA (Japan Quality Assurance Organization)
Calibration Label: 150-91977
Date of Calibration: 10-Aug-2009
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.9-49c8760c
Setup Description: None
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: None
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 100 150.0 0.969 2.0 0.988 95.9 0.4%
Calibration 2 100 150.0 1.00 2.0 0.989 99.4 0.4%
Calibration 3 100 150.0 1.01 2.0 0.989 100 0.4%
100% 100 150.0 1.01 2.0 0.988 100 0.4%
90% 100 150.0 0.952 2.0 0.979 93.6 0.5%
80% 100 150.0 0.887 2.0 0.968 86.1 0.5%
70% 100 150.0 0.806 2.0 0.952 77.0 0.6%
60% 101 150.0 0.726 1.0 0.933 68.0 0.4%
50% 101 150.0 0.649 1.0 0.918 59.8 0.4%
40% 101 150.0 0.576 1.0 0.915 53.0 0.5%
30% 101 150.0 0.501 1.0 0.922 46.6 0.5%
20% 101 150.0 0.443 1.0 0.929 41.5 0.5%
10% 101 150.0 0.398 1.0 0.927 37.2 0.6%
Active Idle 101 150.0 0.344 1.0 0.934 32.6 0.6%
Power details for pwr1
