NEC Corporation Express5800/GT110b-S (Water Cooling) SPECpower_ssj2008 = 1,468 overall ssj_ops/watt
Test Sponsor: NEC Corporation SPEC License #: 9006 Test Method: Single Node
Tested By: NEC Corporation Test Location: Fuchu, Tokyo, Japan Test Date: Mar 1, 2010
Hardware Availability: Apr-2010 Software Availability: May-2009 Publication: May 13, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 60.6 20.2
Calibration 2 61.3 20.2
Calibration 3 61.5 20.2
100% 60.9 20.2
90% 57.9 20.2
80% 54.2 20.2
70% 51.1 20.2
60% 48.1 20.2
50% 44.9 20.2
40% 42.0 20.2
30% 38.6 20.2
20% 35.0 20.2
10% 30.8 20.1
Active Idle 25.8 20.1

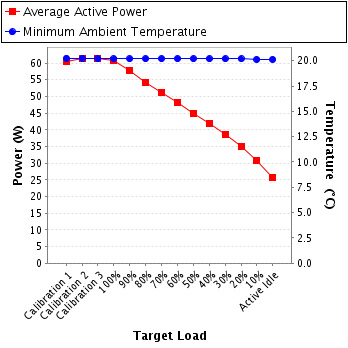

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91H928026
Connectivity: RS-232C
Input Connection: Default
Calibration Institute: AIST (National Institute of Advanced Science and Technology)
Accredited by: JQA (Japan Quality Assurance Organization)
Calibration Label: 150-91977
Date of Calibration: 10-Aug-2009
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.10-511c8daa
Setup Description: None
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: None
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 101 150.0 0.608 1.0 0.983 60.6 0.4%
Calibration 2 101 150.0 0.614 1.0 0.983 61.3 0.4%
Calibration 3 101 150.0 0.616 1.0 0.983 61.5 0.4%
100% 101 150.0 0.611 1.0 0.983 60.9 0.4%
90% 101 150.0 0.583 1.0 0.978 57.9 0.4%
80% 102 150.0 0.550 1.0 0.972 54.2 0.4%
70% 102 150.0 0.520 1.0 0.967 51.1 0.4%
60% 102 150.0 0.492 1.0 0.963 48.1 0.5%
50% 102 150.0 0.461 1.0 0.959 44.9 0.5%
40% 102 150.0 0.432 1.0 0.957 42.0 0.5%
30% 102 150.0 0.398 1.0 0.954 38.6 0.6%
20% 102 150.0 0.364 1.0 0.948 35.0 0.6%
10% 102 150.0 0.322 1.0 0.943 30.8 0.7%
Active Idle 102 150.0 0.266 1.0 0.955 25.8 0.7%

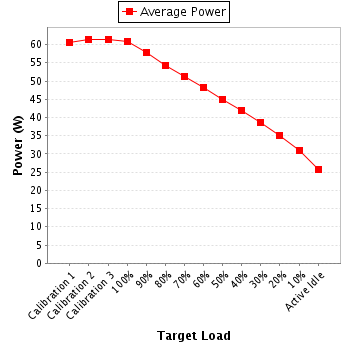

Power details for pwr1
