SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2010 Standard Performance Evaluation Corporation
| Hewlett-Packard Company ProLiant DL170h G6 (2.93 GHz, Intel Xeon X5670 processor) | SPECpower_ssj2008 = 2,882 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett-Packard Company | SPEC License #: | 3 | Test Method: | Multi Node |
| Tested By: | Hewlett-Packard Company | Test Location: | Houston, TX, USA | Test Date: | Apr 5, 2010 |
| Hardware Availability: | Jun-2010 | Software Availability: | Sep-2009 | Publication: | Apr 21, 2010 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

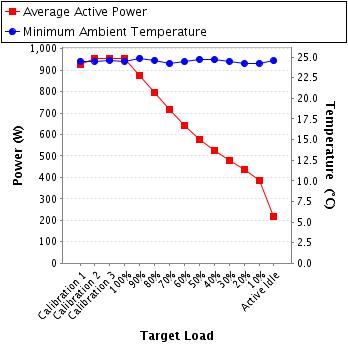

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 927 | 24.5 |
| Calibration 2 | 954 | 24.5 |
| Calibration 3 | 955 | 24.6 |
| 100% | 952 | 24.5 |
| 90% | 874 | 24.9 |
| 80% | 793 | 24.6 |
| 70% | 715 | 24.2 |
| 60% | 641 | 24.4 |
| 50% | 576 | 24.8 |
| 40% | 524 | 24.7 |
| 30% | 480 | 24.5 |
| 20% | 436 | 24.2 |
| 10% | 384 | 24.2 |
| Active Idle | 219 | 24.6 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91GB47168 |
| Connectivity: | GPIB |
| Input Connection: | Default |
| Calibration Institute: | NIST |
| Accredited by: | Yokogawa Electric International Pte. Ltd. |
| Calibration Label: | 705449 |
| Date of Calibration: | 10-Dec-2009 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.10-511c8daa |
| Setup Description: | SUT Power Supplies |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 4.50.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 25 mm in front of SUT main air intake |

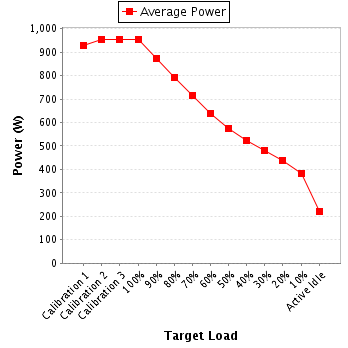

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 211 | 300.0 | 4.47 | 5.0 | 0.986 | 927 | 0.3% |
| Calibration 2 | 210 | 300.0 | 4.60 | 5.0 | 0.987 | 954 | 0.3% |
| Calibration 3 | 210 | 300.0 | 4.60 | 5.0 | 0.987 | 955 | 0.3% |
| 100% | 210 | 300.0 | 4.59 | 5.0 | 0.987 | 952 | 0.3% |
| 90% | 211 | 300.0 | 4.22 | 5.0 | 0.984 | 874 | 0.3% |
| 80% | 211 | 300.0 | 3.83 | 5.0 | 0.983 | 793 | 0.3% |
| 70% | 211 | 300.0 | 3.46 | 5.0 | 0.980 | 715 | 0.4% |
| 60% | 211 | 300.0 | 3.10 | 5.0 | 0.979 | 641 | 0.4% |
| 50% | 211 | 300.0 | 2.79 | 5.0 | 0.975 | 576 | 0.4% |
| 40% | 211 | 300.0 | 2.56 | 5.0 | 0.971 | 524 | 0.4% |
| 30% | 210 | 300.0 | 2.36 | 5.0 | 0.967 | 480 | 0.5% |
| 20% | 210 | 300.0 | 2.16 | 5.0 | 0.963 | 436 | 0.5% |
| 10% | 210 | 300.0 | 1.92 | 2.0 | 0.953 | 384 | 0.3% |
| Active Idle | 210 | 300.0 | 1.15 | 2.0 | 0.903 | 219 | 0.5% |
