Hewlett-Packard Company ProLiant DL360 G6 (2.93 GHz, Intel Xeon X5670 processor) ssj_ops@100% = 872,258
ssj_ops@100% per JVM = 145,376
Test Sponsor: Hewlett-Packard Company SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett-Packard Company Test Location: Houston, TX, USA Test Date: Apr 1, 2010
Hardware Availability: Jun-2010 Software Availability: Sep-2009 Publication: Apr 21, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     871,404
Calibration 2     875,293
Calibration 3     876,815
ssj_ops@calibrated=876,054
100% 99.6% 876,054 872,258
90% 91.1% 788,449 797,730
80% 79.9% 700,843 699,532
70% 70.3% 613,238 616,297
60% 60.0% 525,633 525,729
50% 50.4% 438,027 441,105
40% 39.9% 350,422 349,832
30% 29.9% 262,816 262,022
20% 20.0% 175,211 175,071
10% 10.1% 87,605 88,327
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: ProLiant DL360 G6
# of Identical Nodes: 1
Comment: System Under Test
Hardware
Hardware Vendor: Hewlett-Packard Company
Model: ProLiant DL360 G6 (2.93 GHz, Intel Xeon X5670 processor)
Form Factor: 1U
CPU Name: Intel Xeon X5670
CPU Characteristics: Six-Core, 2.93 GHz, 12 MB L3 cache
CPU Frequency (MHz): 2933
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 4 x 4096 MB
Memory Details: 4GB 2Rx8 PC3-10600E; slots 3 and 6 populated on each processor
Power Supply Quantity and Rating (W): 1 x 460
Power Supply Details: HP part #: 503296-B21
Disk Drive: 1 x 60GB SSD 2.5" SATA, HP part #:572071-B21
Disk Controller: HP Smart Array P410i
# and type of Network Interface Cards (NICs) Installed: 2 x NC382i Dual Port Multifunction Gigabit Server Adapters
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power saver enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa660sr5-20090519_35743 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1500m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: Used "start /AFFINITY [0xF, 0xF0, 0xF00, 0xF000, 0xF0000, 0xF00000]
JVM Instances: 6
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: P64 03/01/2010
Management Firmware Version: 2.00 12/17/2009
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: none
Boot Firmware Settings
See SUT notes
Management Firmware Settings
Persistent Keyboard and Mouse Disabled
System Under Test Notes
Notes
none
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-I5RF3B36MAD.001 144,667
WIN-I5RF3B36MAD.002 145,831
WIN-I5RF3B36MAD.003 148,683
WIN-I5RF3B36MAD.004 144,822
WIN-I5RF3B36MAD.005 143,808
WIN-I5RF3B36MAD.006 144,447
ssj_ops@100% 872,258
ssj_ops@100% per JVM 145,376

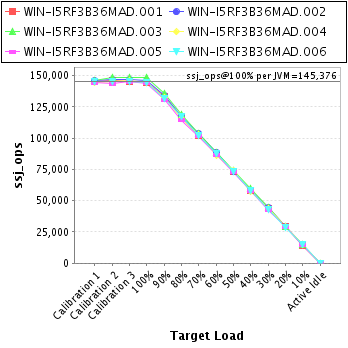

Graph of per-instance results
JVM 'WIN-I5RF3B36MAD.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     145,483
Calibration 2     145,759
Calibration 3     145,586
ssj_ops@calibrated=145,672
100% 99.3% 145,672 144,667
90% 91.5% 131,105 133,332
80% 79.8% 116,538 116,302
70% 70.1% 101,971 102,090
60% 60.0% 87,403 87,462
50% 50.4% 72,836 73,404
40% 40.2% 58,269 58,538
30% 30.1% 43,702 43,814
20% 19.9% 29,134 28,987
10% 9.9% 14,567 14,382
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-I5RF3B36MAD.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     145,713
Calibration 2     146,709
Calibration 3     146,919
ssj_ops@calibrated=146,814
100% 99.3% 146,814 145,831
90% 91.4% 132,133 134,228
80% 80.0% 117,451 117,487
70% 70.6% 102,770 103,627
60% 60.5% 88,088 88,762
50% 50.2% 73,407 73,645
40% 39.8% 58,726 58,409
30% 30.2% 44,044 44,403
20% 19.8% 29,363 29,092
10% 10.1% 14,681 14,787
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

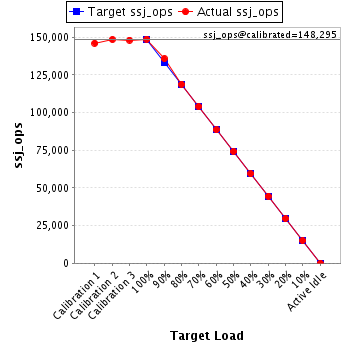

JVM 'WIN-I5RF3B36MAD.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     146,049
Calibration 2     148,490
Calibration 3     148,099
ssj_ops@calibrated=148,295
100% 100.3% 148,295 148,683
90% 91.5% 133,465 135,743
80% 80.2% 118,636 118,866
70% 70.1% 103,806 103,975
60% 59.7% 88,977 88,545
50% 50.1% 74,147 74,322
40% 40.0% 59,318 59,346
30% 30.1% 44,488 44,573
20% 19.9% 29,659 29,583
10% 10.2% 14,829 15,095
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

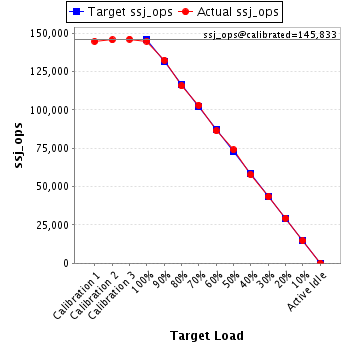

JVM 'WIN-I5RF3B36MAD.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     144,634
Calibration 2     145,578
Calibration 3     146,088
ssj_ops@calibrated=145,833
100% 99.3% 145,833 144,822
90% 90.8% 131,250 132,464
80% 79.3% 116,666 115,579
70% 70.6% 102,083 103,026
60% 59.2% 87,500 86,298
50% 50.7% 72,916 73,954
40% 39.5% 58,333 57,594
30% 29.8% 43,750 43,480
20% 20.2% 29,167 29,454
10% 10.1% 14,583 14,697
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-I5RF3B36MAD.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     144,086
Calibration 2     143,438
Calibration 3     144,845
ssj_ops@calibrated=144,141
100% 99.8% 144,141 143,808
90% 90.6% 129,727 130,599
80% 79.3% 115,313 114,285
70% 70.5% 100,899 101,627
60% 60.2% 86,485 86,757
50% 50.3% 72,071 72,575
40% 40.3% 57,656 58,123
30% 29.4% 43,242 42,399
20% 20.3% 28,828 29,235
10% 10.1% 14,414 14,512
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-I5RF3B36MAD.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     145,440
Calibration 2     145,320
Calibration 3     145,278
ssj_ops@calibrated=145,299
100% 99.4% 145,299 144,447
90% 90.4% 130,769 131,364
80% 80.5% 116,239 117,014
70% 70.2% 101,709 101,953
60% 60.5% 87,180 87,906
50% 50.4% 72,650 73,204
40% 39.8% 58,120 57,822
30% 29.8% 43,590 43,354
20% 19.8% 29,060 28,720
10% 10.2% 14,530 14,854
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
