SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2010 Standard Performance Evaluation Corporation
| Hewlett-Packard Company ProLiant SL2X170z G6 | SPECpower_ssj2008 = 3,106 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett-Packard Company | SPEC License #: | 3 | Test Method: | Multi Node |
| Tested By: | Hewlett-Packard Company | Test Location: | Houston, TX, USA | Test Date: | Apr 6, 2010 |
| Hardware Availability: | Jun-2010 | Software Availability: | Sep-2009 | Publication: | Apr 21, 2010 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

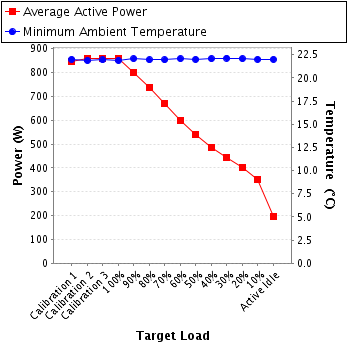

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 845 | 22.0 |
| Calibration 2 | 860 | 21.9 |
| Calibration 3 | 860 | 21.9 |
| 100% | 858 | 21.9 |
| 90% | 798 | 22.1 |
| 80% | 736 | 21.9 |
| 70% | 669 | 21.9 |
| 60% | 599 | 22.1 |
| 50% | 538 | 22.0 |
| 40% | 487 | 22.1 |
| 30% | 442 | 22.1 |
| 20% | 401 | 22.1 |
| 10% | 351 | 22.0 |
| Active Idle | 194 | 22.0 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91GB47167 |
| Connectivity: | GPIB |
| Input Connection: | Default |
| Calibration Institute: | NIST |
| Accredited by: | Yokogawa Electric International Pte. Ltd. |
| Calibration Label: | 07-5436 |
| Date of Calibration: | 21-Jan-2010 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.10-511c8daa |
| Setup Description: | SUT Power Supplies |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 4.50.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 25 mm in front of SUT main air intake |

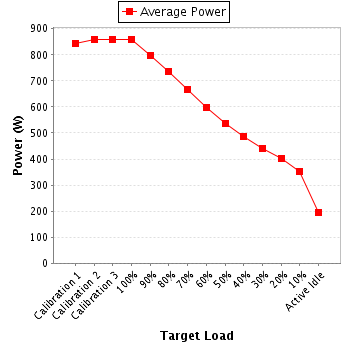

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 211 | 300.0 | 4.08 | 5.0 | 0.981 | 845 | 0.3% |
| Calibration 2 | 211 | 300.0 | 4.15 | 5.0 | 0.981 | 860 | 0.3% |
| Calibration 3 | 211 | 300.0 | 4.15 | 5.0 | 0.981 | 860 | 0.3% |
| 100% | 211 | 300.0 | 4.14 | 5.0 | 0.981 | 858 | 0.3% |
| 90% | 212 | 300.0 | 3.85 | 5.0 | 0.980 | 798 | 0.3% |
| 80% | 211 | 300.0 | 3.57 | 5.0 | 0.977 | 736 | 0.3% |
| 70% | 211 | 300.0 | 3.25 | 5.0 | 0.976 | 669 | 0.4% |
| 60% | 211 | 300.0 | 2.92 | 5.0 | 0.971 | 599 | 0.4% |
| 50% | 211 | 300.0 | 2.63 | 5.0 | 0.966 | 538 | 0.4% |
| 40% | 212 | 300.0 | 2.39 | 5.0 | 0.961 | 487 | 0.5% |
| 30% | 212 | 300.0 | 2.19 | 5.0 | 0.955 | 442 | 0.5% |
| 20% | 212 | 300.0 | 1.99 | 5.0 | 0.949 | 401 | 0.5% |
| 10% | 212 | 300.0 | 1.77 | 5.0 | 0.937 | 351 | 0.6% |
| Active Idle | 212 | 300.0 | 1.06 | 2.0 | 0.867 | 194 | 0.5% |
