Acer Incorporated Acer AT350 F1 ssj_ops@100% = 466,089
ssj_ops@100% per JVM = 116,522
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: San Jose, CA, USA Test Date: Mar 16, 2010
Hardware Availability: May-2010 Software Availability: Jun-2009 Publication: Apr 21, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     463,889
Calibration 2     466,464
Calibration 3     468,491
ssj_ops@calibrated=467,477
100% 99.7% 467,477 466,089
90% 89.6% 420,730 418,871
80% 79.7% 373,982 372,786
70% 69.9% 327,234 326,714
60% 60.4% 280,486 282,269
50% 50.4% 233,739 235,599
40% 39.6% 186,991 185,089
30% 30.2% 140,243 141,389
20% 20.3% 93,495 95,012
10% 10.1% 46,748 47,165
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Acer Incorporated
Model: Acer AT350 F1
Form Factor: 4U
CPU Name: Intel Xeon L5530
CPU Characteristics: Quad-Core, 2.40GHz, 8MB L3 Cache
CPU Frequency (MHz): 2400
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 16 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8.0
# and size of DIMM: 4 x 2048 MB
Memory Details: 2GB 2Rx8 PC3-10600E; slots 1A and 2A are populated on each processor
Power Supply Quantity and Rating (W): 1 x 720
Power Supply Details: Supermicro PWS-721P-1R
Disk Drive: 1 x Intel X25-E Extreme 64 GB SLC SSD - SSDSA2SH064G1GC
Disk Controller: Intel ICH10R SATA 3.0Gbps Controller
# and type of Network Interface Cards (NICs) Installed: 2 x Intel 82576 Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced power enabled in OS
Operating System (OS): Windows Server 2008 x64, Enterprise Edition
OS Version: SP2
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle JRockit(R) 6 P28.0.0 (build P28.0.0-29-114096-1.6.0_11-20090427-1759-windows-x86_64, compiled mode)
JVM Command-line Options: -Xms1600m -Xmx1600m -Xns1500m -XXaggressive -XlargePages -XXthroughputCompaction -XXcallprofiling -XXlazyUnlocking -Xgc:genpar -XXgcthreads:4 -XXtlasize:min=12k,preferred=1024k
JVM Affinity: start /affinity [0xF, 0xF0, 0xF00, 0xF000]
JVM Instances: 4
JVM Initial Heap (MB): 1600
JVM Maximum Heap (MB): 1600
JVM Address Bits: 64
Boot Firmware Version: D11 03/08/2010
Management Firmware Version: 1.00 03/15/2010
Workload Version: SSJ 1.2.6
Director Location: SUT
Other Software: None
Boot Firmware Settings
See SUT Notes
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
Acer-AT350-F1.001 115,039
Acer-AT350-F1.002 117,394
Acer-AT350-F1.003 116,360
Acer-AT350-F1.004 117,296
ssj_ops@100% 466,089
ssj_ops@100% per JVM 116,522

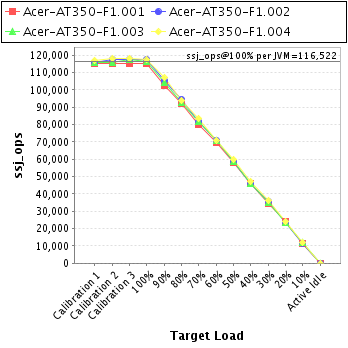

Graph of per-instance results
JVM 'Acer-AT350-F1.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     115,049
Calibration 2     115,405
Calibration 3     115,442
ssj_ops@calibrated=115,424
100% 99.7% 115,424 115,039
90% 88.7% 103,881 102,418
80% 79.6% 92,339 91,895
70% 69.2% 80,797 79,832
60% 60.3% 69,254 69,623
50% 50.6% 57,712 58,368
40% 39.6% 46,169 45,731
30% 30.1% 34,627 34,709
20% 20.7% 23,085 23,918
10% 9.9% 11,542 11,479
Active Idle   0 0

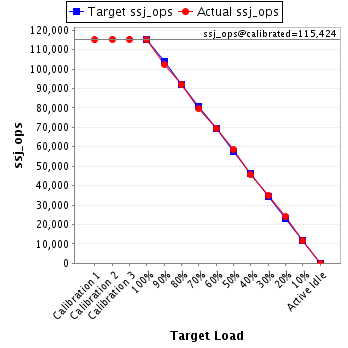

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Acer-AT350-F1.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     116,022
Calibration 2     117,265
Calibration 3     117,386
ssj_ops@calibrated=117,325
100% 100.1% 117,325 117,394
90% 89.6% 105,593 105,094
80% 80.5% 93,860 94,446
70% 69.6% 82,128 81,646
60% 60.6% 70,395 71,060
50% 50.1% 58,663 58,753
40% 39.4% 46,930 46,216
30% 30.2% 35,198 35,404
20% 20.1% 23,465 23,591
10% 9.8% 11,733 11,550
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Acer-AT350-F1.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     115,905
Calibration 2     115,908
Calibration 3     117,418
ssj_ops@calibrated=116,663
100% 99.7% 116,663 116,360
90% 89.5% 104,997 104,387
80% 79.4% 93,331 92,648
70% 70.2% 81,664 81,863
60% 60.5% 69,998 70,550
50% 50.3% 58,332 58,685
40% 39.5% 46,665 46,047
30% 30.1% 34,999 35,085
20% 20.2% 23,333 23,554
10% 10.4% 11,666 12,154
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Acer-AT350-F1.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     116,913
Calibration 2     117,886
Calibration 3     118,245
ssj_ops@calibrated=118,065
100% 99.3% 118,065 117,296
90% 90.6% 106,259 106,971
80% 79.4% 94,452 93,797
70% 70.6% 82,646 83,372
60% 60.2% 70,839 71,036
50% 50.6% 59,033 59,793
40% 39.9% 47,226 47,096
30% 30.7% 35,420 36,192
20% 20.3% 23,613 23,949
10% 10.1% 11,807 11,983
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
