Hewlett-Packard Company ProLiant DL385 G7 (2.2GHz, AMD Opteron 6174) ssj_ops@100% = 888,819
ssj_ops@100% per JVM = 222,205
Test Sponsor: Hewlett-Packard Company SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett-Packard Company Test Location: Houston, Tx, USA Test Date: Mar 21, 2010
Hardware Availability: Jun-2010 Software Availability: Mar-2010 Publication: Apr 7, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     861,244
Calibration 2     895,961
Calibration 3     900,120
ssj_ops@calibrated=898,041
100% 99.0% 898,041 888,819
90% 90.5% 808,237 812,675
80% 79.8% 718,433 716,817
70% 70.4% 628,629 632,017
60% 60.4% 538,825 542,510
50% 50.2% 449,020 450,956
40% 40.0% 359,216 359,460
30% 30.0% 269,412 269,094
20% 20.0% 179,608 179,177
10% 10.1% 89,804 90,777
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Hewlett-Packard Company
Model: ProLiant DL385 G7 (2.2GHz, AMD Opteron 6174)
Form Factor: 3U
CPU Name: AMD Opteron 6174
CPU Characteristics: 12 core, 2.20 GHz, 10MB L2 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 24 cores, 2 chips, 12 cores/chip
Hardware Threads: 24 (1 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 MB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip, 6 MB shared / 6 cores
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 4 x 4096 MB
Memory Details: 4GB 2Rx4 PC3-10600E; slots 1,7 are populated on each processor
Power Supply Quantity and Rating (W): 1 x 460
Power Supply Details: part number: 499250-101
Disk Drive: 1 x 120GB SFF SATA SSD, HP Part #572073-B21
Disk Controller: HP Smart Array P410i
# and type of Network Interface Cards (NICs) Installed: 2 x integrated Broadcom 5709 dual port
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: No
Other Hardware: 1 x HP DL38X(1) x16 PCI-E riser kit (P/N 494323-B21)
Software
Power Management: Balanced Mode
Operating System (OS): Windows Server 2008 Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa64 60sr5-20090519_35743 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1500m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [3F,FC0,3F000,FC0000]
JVM Instances: 4
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: A18 03/50/2010
Management Firmware Version: 1.00 pass 60
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT Notes
Management Firmware Settings
Disabled Persistent Keyboard and Mouse
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-FIV3R7BJF63.001 222,070
WIN-FIV3R7BJF63.002 225,469
WIN-FIV3R7BJF63.003 217,191
WIN-FIV3R7BJF63.004 224,089
ssj_ops@100% 888,819
ssj_ops@100% per JVM 222,205

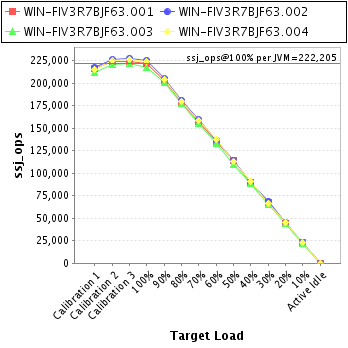

Graph of per-instance results

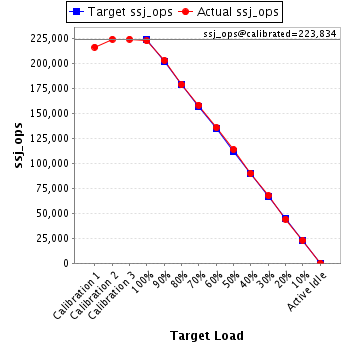

JVM 'WIN-FIV3R7BJF63.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     215,974
Calibration 2     223,771
Calibration 3     223,897
ssj_ops@calibrated=223,834
100% 99.2% 223,834 222,070
90% 90.6% 201,451 202,854
80% 79.7% 179,067 178,428
70% 70.6% 156,684 157,938
60% 60.6% 134,300 135,638
50% 50.8% 111,917 113,765
40% 40.1% 89,534 89,700
30% 30.2% 67,150 67,576
20% 19.7% 44,767 44,136
10% 10.3% 22,383 23,024
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-FIV3R7BJF63.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     217,661
Calibration 2     226,127
Calibration 3     227,929
ssj_ops@calibrated=227,028
100% 99.3% 227,028 225,469
90% 90.3% 204,326 204,976
80% 79.8% 181,623 181,275
70% 70.3% 158,920 159,581
60% 59.9% 136,217 136,021
50% 50.4% 113,514 114,489
40% 39.5% 90,811 89,621
30% 30.3% 68,109 68,896
20% 19.8% 45,406 44,965
10% 10.2% 22,703 23,079
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

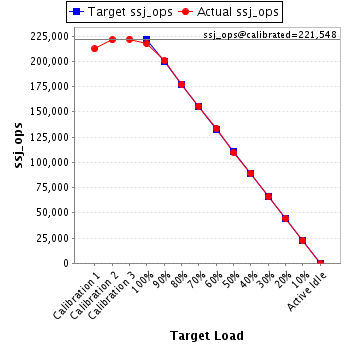

JVM 'WIN-FIV3R7BJF63.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     212,291
Calibration 2     221,201
Calibration 3     221,896
ssj_ops@calibrated=221,548
100% 98.0% 221,548 217,191
90% 90.5% 199,393 200,547
80% 79.9% 177,239 177,068
70% 70.3% 155,084 155,691
60% 60.3% 132,929 133,657
50% 49.4% 110,774 109,512
40% 40.3% 88,619 89,180
30% 29.7% 66,464 65,809
20% 20.0% 44,310 44,257
10% 10.0% 22,155 22,141
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-FIV3R7BJF63.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     215,318
Calibration 2     224,862
Calibration 3     226,398
ssj_ops@calibrated=225,630
100% 99.3% 225,630 224,089
90% 90.5% 203,067 204,298
80% 79.8% 180,504 180,046
70% 70.4% 157,941 158,808
60% 60.8% 135,378 137,195
50% 50.2% 112,815 113,191
40% 40.3% 90,252 90,960
30% 29.6% 67,689 66,812
20% 20.3% 45,126 45,819
10% 10.0% 22,563 22,534
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
