Hewlett-Packard Company ProLiant DL385 G7 (2.2GHz, AMD Opteron 6174) SPECpower_ssj2008 = 2,355 overall ssj_ops/watt
Test Sponsor: Hewlett-Packard Company SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett-Packard Company Test Location: Houston, Tx, USA Test Date: Mar 21, 2010
Hardware Availability: Jun-2010 Software Availability: Mar-2010 Publication: Apr 7, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 265 22.7
Calibration 2 272 22.8
Calibration 3 273 22.8
100% 271 22.2
90% 261 22.2
80% 244 22.4
70% 223 22.4
60% 202 22.2
50% 188 22.3
40% 180 22.8
30% 156 22.6
20% 143 22.1
10% 132 22.7
Active Idle 101 22.7

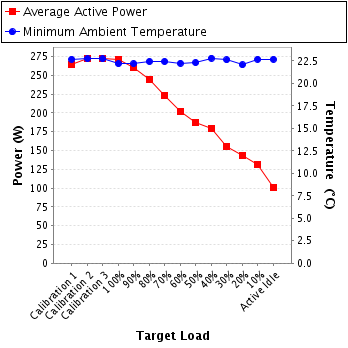

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91GB45372
Connectivity: GPIB
Input Connection: Default
Calibration Institute: NIST
Accredited by: HP Metrology
Calibration Label: 705450
Date of Calibration: 10-Dec-2009
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.10-511c8daa
Setup Description: Unknown
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 4.50.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: Unknown
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 210 300.0 1.30 2.0 0.969 265 0.4%
Calibration 2 210 300.0 1.33 2.0 0.971 272 0.4%
Calibration 3 210 300.0 1.34 2.0 0.972 273 0.4%
100% 210 300.0 1.33 2.0 0.971 271 0.4%
90% 210 300.0 1.28 2.0 0.969 261 0.4%
80% 210 300.0 1.20 2.0 0.966 244 0.4%
70% 210 300.0 1.11 2.0 0.962 223 0.4%
60% 210 300.0 1.01 2.0 0.957 202 0.5%
50% 210 300.0 0.939 2.0 0.952 188 0.5%
40% 210 300.0 0.902 1.0 0.949 180 0.3%
30% 210 300.0 0.789 1.0 0.940 156 0.4%
20% 210 300.0 0.731 1.0 0.932 143 0.4%
10% 210 300.0 0.679 1.0 0.925 132 0.4%
Active Idle 210 300.0 0.539 1.0 0.890 101 0.5%

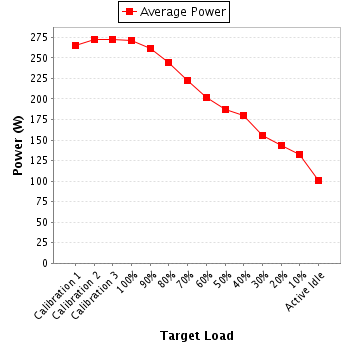

Power details for pwr1
