IBM Corporation IBM System x iDataPlex dx360 M3 ssj_ops@100% = 894,921
ssj_ops@100% per JVM = 149,153
Test Sponsor: IBM Corporation SPEC License #: 11 Test Method: Multi Node
Tested By: IBM Corporation Test Location: Nankang, Taipei, Taiwan Test Date: Mar 10, 2010
Hardware Availability: Jun-2010 Software Availability: Oct-2009 Publication: Apr 7, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     898,072
Calibration 2     899,687
Calibration 3     899,670
ssj_ops@calibrated=899,679
100% 99.5% 899,679 894,921
90% 89.8% 809,711 808,051
80% 80.1% 719,743 720,266
70% 69.7% 629,775 627,115
60% 60.1% 539,807 540,658
50% 50.0% 449,839 449,520
40% 40.0% 359,871 360,118
30% 30.0% 269,904 269,517
20% 20.0% 179,936 179,998
10% 10.1% 89,968 90,684
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 2
Comment: None
Hardware
Hardware Vendor: IBM Corporation
Model: IBM System x iDataPlex dx360 M3
Form Factor: 2U
CPU Name: Intel Xeon X5670
CPU Characteristics: Six-Core, 2.93GHz, 12MB L3 Cache
CPU Frequency (MHz): 2933
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 12
# and size of DIMM: 6 x 2048 MB
Memory Details: 2GB 2Rx8 PC3L-10600R; slots 3, 6, 8, 11, 14, and 16 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 50 GB SATA SSD, feature code 5197
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 2 x Integrated Intel 82575 Gigabit Ethernet Controller
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: No
Other Hardware: None
Software
Power Management: Power saver plan in OS
Operating System (OS): Microsoft Windows Server 2008 x64 Datacenter Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build pwa6460sr5-20090529_04(SR5))
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1100m -Xms1500m -Xmx1500m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [F,F0,F00,F000,F0000,F00000]
JVM Instances: 6
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: TME145U
Management Firmware Version: YUOO57F
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT Notes
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-77M9M0Q7TKL.001 146,308
WIN-77M9M0Q7TKL.002 146,073
WIN-77M9M0Q7TKL.003 148,025
WIN-77M9M0Q7TKL.004 150,118
WIN-77M9M0Q7TKL.005 151,943
WIN-77M9M0Q7TKL.006 152,453
ssj_ops@100% 894,921
ssj_ops@100% per JVM 149,153

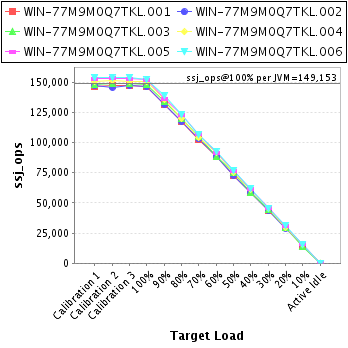

Graph of per-instance results
JVM 'WIN-77M9M0Q7TKL.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     146,625
Calibration 2     146,836
Calibration 3     147,104
ssj_ops@calibrated=146,970
100% 99.5% 146,970 146,308
90% 89.4% 132,273 131,348
80% 79.6% 117,576 117,013
70% 69.5% 102,879 102,214
60% 60.1% 88,182 88,297
50% 49.5% 73,485 72,730
40% 39.8% 58,788 58,561
30% 30.0% 44,091 44,063
20% 20.2% 29,394 29,643
10% 10.0% 14,697 14,707
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-77M9M0Q7TKL.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     146,848
Calibration 2     145,735
Calibration 3     147,216
ssj_ops@calibrated=146,476
100% 99.7% 146,476 146,073
90% 89.9% 131,828 131,645
80% 80.4% 117,181 117,717
70% 70.3% 102,533 102,947
60% 60.4% 87,885 88,471
50% 49.9% 73,238 73,052
40% 39.9% 58,590 58,426
30% 30.0% 43,943 43,978
20% 19.9% 29,295 29,132
10% 10.4% 14,648 15,216
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-77M9M0Q7TKL.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     148,032
Calibration 2     148,527
Calibration 3     148,596
ssj_ops@calibrated=148,561
100% 99.6% 148,561 148,025
90% 90.4% 133,705 134,344
80% 80.5% 118,849 119,565
70% 70.4% 103,993 104,596
60% 59.3% 89,137 88,134
50% 50.4% 74,281 74,829
40% 39.5% 59,425 58,708
30% 29.9% 44,568 44,388
20% 19.8% 29,712 29,482
10% 9.6% 14,856 14,200
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-77M9M0Q7TKL.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     150,345
Calibration 2     151,090
Calibration 3     150,198
ssj_ops@calibrated=150,644
100% 99.7% 150,644 150,118
90% 90.0% 135,580 135,527
80% 79.7% 120,515 120,040
70% 68.9% 105,451 103,836
60% 60.8% 90,386 91,558
50% 50.1% 75,322 75,499
40% 40.3% 60,258 60,731
30% 30.2% 45,193 45,440
20% 19.9% 30,129 29,965
10% 10.2% 15,064 15,400
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-77M9M0Q7TKL.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     152,629
Calibration 2     153,411
Calibration 3     152,717
ssj_ops@calibrated=153,064
100% 99.3% 153,064 151,943
90% 89.1% 137,757 136,331
80% 80.3% 122,451 122,856
70% 69.9% 107,145 106,930
60% 59.7% 91,838 91,334
50% 50.1% 76,532 76,751
40% 40.2% 61,226 61,493
30% 30.1% 45,919 46,116
20% 20.1% 30,613 30,752
10% 10.2% 15,306 15,641
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-77M9M0Q7TKL.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     153,592
Calibration 2     154,088
Calibration 3     153,838
ssj_ops@calibrated=153,963
100% 99.0% 153,963 152,453
90% 90.2% 138,567 138,857
80% 79.9% 123,171 123,076
70% 69.2% 107,774 106,591
60% 60.3% 92,378 92,865
50% 49.8% 76,982 76,658
40% 40.4% 61,585 62,198
30% 29.6% 46,189 45,532
20% 20.2% 30,793 31,025
10% 10.1% 15,396 15,521
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
