SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2010 Standard Performance Evaluation Corporation
| IBM Corporation IBM System x iDataPlex dx360 M3 | SPECpower_ssj2008 = 3,038 overall ssj_ops/watt | ||||
| Test Sponsor: | IBM Corporation | SPEC License #: | 11 | Test Method: | Multi Node |
| Tested By: | IBM Corporation | Test Location: | Nankang, Taipei, Taiwan | Test Date: | Mar 10, 2010 |
| Hardware Availability: | Jun-2010 | Software Availability: | Oct-2009 | Publication: | Apr 7, 2010 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

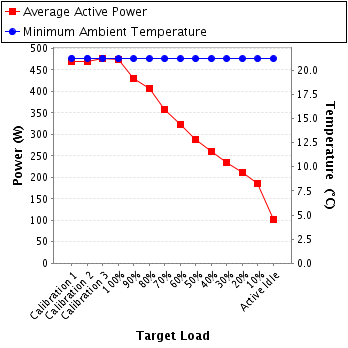

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 469 | 21.2 |
| Calibration 2 | 469 | 21.2 |
| Calibration 3 | 477 | 21.2 |
| 100% | 475 | 21.2 |
| 90% | 430 | 21.2 |
| 80% | 406 | 21.2 |
| 70% | 358 | 21.2 |
| 60% | 323 | 21.2 |
| 50% | 289 | 21.2 |
| 40% | 260 | 21.2 |
| 30% | 234 | 21.2 |
| 20% | 211 | 21.2 |
| 10% | 185 | 21.2 |
| Active Idle | 101 | 21.2 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. LTD |
| Model: | WT210 |
| Serial Number: | 91H245649 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | NML/ROC |
| Accredited by: | ETC, Taiwan |
| Calibration Label: | 09-04-BAC-150-01 |
| Date of Calibration: | 13-Apr-2009 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.9-49c8760c |
| Setup Description: | SUT Power Supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 1 cm in front of SUT main air intake |

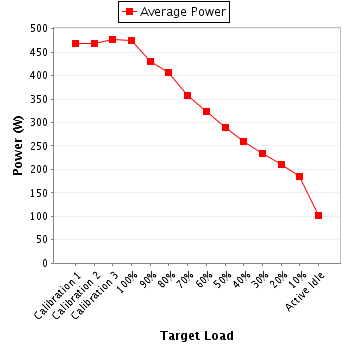

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 202 | 300.0 | 2.36 | 5.0 | 0.982 | 469 | 0.5% |
| Calibration 2 | 203 | 300.0 | 2.36 | 5.0 | 0.982 | 469 | 0.5% |
| Calibration 3 | 203 | 300.0 | 2.40 | 5.0 | 0.983 | 477 | 0.5% |
| 100% | 203 | 300.0 | 2.39 | 5.0 | 0.983 | 475 | 0.5% |
| 90% | 203 | 300.0 | 2.16 | 5.0 | 0.980 | 430 | 0.5% |
| 80% | 203 | 300.0 | 2.05 | 2.0 | 0.978 | 406 | 0.3% |
| 70% | 203 | 300.0 | 1.81 | 2.0 | 0.975 | 358 | 0.3% |
| 60% | 203 | 300.0 | 1.63 | 2.0 | 0.974 | 323 | 0.3% |
| 50% | 204 | 300.0 | 1.46 | 2.0 | 0.973 | 289 | 0.4% |
| 40% | 204 | 300.0 | 1.31 | 2.0 | 0.972 | 260 | 0.4% |
| 30% | 204 | 300.0 | 1.19 | 2.0 | 0.970 | 234 | 0.4% |
| 20% | 203 | 300.0 | 1.07 | 2.0 | 0.968 | 211 | 0.4% |
| 10% | 203 | 300.0 | 0.947 | 1.0 | 0.960 | 185 | 0.3% |
| Active Idle | 204 | 300.0 | 0.743 | 1.0 | 0.670 | 101 | 0.6% |
