Acer Incorporated Gateway GR380 F1 SPECpower_ssj2008 = 1,592 overall ssj_ops/watt
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: San Jose, CA, USA Test Date: Feb 25, 2010
Hardware Availability: May-2010 Software Availability: Jun-2009 Publication: Apr 7, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 197 23.0
Calibration 2 198 22.9
Calibration 3 198 22.9
100% 198 22.8
90% 187 22.6
80% 177 22.7
70% 167 22.6
60% 156 22.4
50% 147 22.3
40% 138 22.3
30% 128 22.4
20% 119 22.3
10% 107 22.2
Active Idle 88.2 22.2

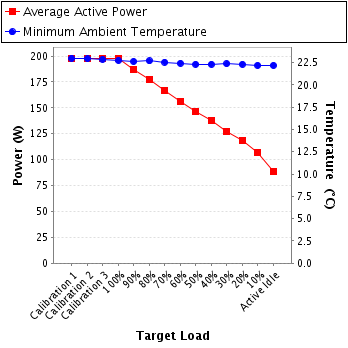

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91H520530
Connectivity: RS232
Input Connection: Default
Calibration Institute: NIST
Accredited by: SE-Laboratories
Calibration Label: C56-0066
Date of Calibration: 22-Dec-2009
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.9-49c8760c
Setup Description: None
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.0.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: None
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 208 300.0 0.993 2.0 0.956 197 0.5%
Calibration 2 208 300.0 0.995 2.0 0.956 198 0.5%
Calibration 3 208 300.0 0.994 2.0 0.956 198 0.5%
100% 208 300.0 0.993 2.0 0.956 198 0.5%
90% 208 300.0 0.946 2.0 0.953 187 0.5%
80% 208 300.0 0.898 2.0 0.949 177 0.5%
70% 208 300.0 0.849 2.0 0.944 167 0.5%
60% 208 300.0 0.799 2.0 0.939 156 0.6%
50% 208 300.0 0.754 2.0 0.934 147 0.6%
40% 208 300.0 0.712 2.0 0.929 138 0.6%
30% 208 300.0 0.665 2.0 0.922 128 0.7%
20% 208 300.0 0.623 2.0 0.915 119 0.7%
10% 208 300.0 0.571 2.0 0.903 107 0.8%
Active Idle 208 300.0 0.481 2.0 0.881 88.2 0.9%

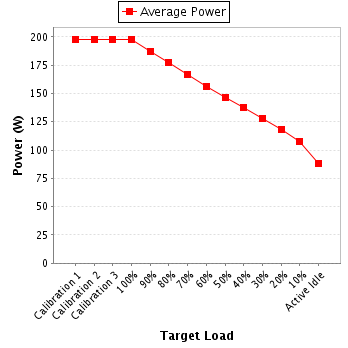

Power details for pwr1
