Acer Incorporated Acer AR380 F1 ssj_ops@100% = 466,636
ssj_ops@100% per JVM = 116,659
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: San Jose, CA, USA Test Date: Feb 26, 2010
Hardware Availability: May-2010 Software Availability: Jun-2009 Publication: Apr 7, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     464,175
Calibration 2     468,845
Calibration 3     465,755
ssj_ops@calibrated=467,300
100% 99.9% 467,300 466,636
90% 90.0% 420,570 420,349
80% 79.8% 373,840 373,017
70% 69.9% 327,110 326,520
60% 60.0% 280,380 280,436
50% 49.8% 233,650 232,609
40% 40.1% 186,920 187,535
30% 30.1% 140,190 140,832
20% 20.1% 93,460 93,713
10% 9.8% 46,730 46,011
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Acer Incorporated
Model: Acer AR380 F1
Form Factor: 2U
CPU Name: Intel Xeon L5530
CPU Characteristics: Quad-Core, 2.40GHz, 8MB L3 Cache
CPU Frequency (MHz): 2400
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 16 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8.0
# and size of DIMM: 4 x 2048 MB
Memory Details: 2GB 2Rx8 PC3-10600E; slots 1A and 2A are populated on each processor
Power Supply Quantity and Rating (W): 1 x 720
Power Supply Details: Supermicro PWS-721P-1R
Disk Drive: 1 x Intel X25-E Extreme 64 GB SLC SSD - SSDSA2SH064G1GC
Disk Controller: Intel ICH10R SATA 3.0Gbps Controller
# and type of Network Interface Cards (NICs) Installed: 4 x Intel 82576 Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced power enabled in OS
Operating System (OS): Windows Server 2008 x64, Enterprise Edition
OS Version: SP2
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle JRockit(R) 6 P28.0.0 (build P28.0.0-29-114096-1.6.0_11-20090427-1759-windows-x86_64, compiled mode)
JVM Command-line Options: -Xms1600m -Xmx1600m -Xns1500m -XXaggressive -XlargePages -XXthroughputCompaction -XXcallprofiling -XXlazyUnlocking -Xgc:genpar -XXgcthreads:4 -XXtlasize:min=12k,preferred=1024k
JVM Affinity: start /affinity [0xF, 0xF0, 0xF00, 0xF000]
JVM Instances: 4
JVM Initial Heap (MB): 1600
JVM Maximum Heap (MB): 1600
JVM Address Bits: 64
Boot Firmware Version: D07 02/25/2010
Management Firmware Version: 1.00 02/23/2010
Workload Version: SSJ 1.2.6
Director Location: SUT
Other Software: None
Boot Firmware Settings
See SUT Notes
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
Acer-AR380.001 116,998
Acer-AR380.002 117,034
Acer-AR380.003 116,989
Acer-AR380.004 115,616
ssj_ops@100% 466,636
ssj_ops@100% per JVM 116,659

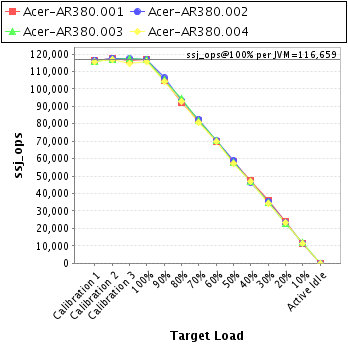

Graph of per-instance results
JVM 'Acer-AR380.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     116,239
Calibration 2     117,216
Calibration 3     116,422
ssj_ops@calibrated=116,819
100% 100.2% 116,819 116,998
90% 89.7% 105,137 104,782
80% 79.0% 93,455 92,283
70% 69.9% 81,773 81,664
60% 59.9% 70,092 70,022
50% 49.9% 58,410 58,292
40% 40.5% 46,728 47,323
30% 30.6% 35,046 35,795
20% 20.3% 23,364 23,722
10% 9.8% 11,682 11,396
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Acer-AR380.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     116,561
Calibration 2     117,640
Calibration 3     117,171
ssj_ops@calibrated=117,405
100% 99.7% 117,405 117,034
90% 90.6% 105,665 106,356
80% 79.6% 93,924 93,418
70% 70.4% 82,184 82,638
60% 59.8% 70,443 70,198
50% 50.1% 58,703 58,851
40% 39.6% 46,962 46,508
30% 30.4% 35,222 35,657
20% 20.1% 23,481 23,578
10% 9.7% 11,741 11,446
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Acer-AR380.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     115,844
Calibration 2     117,149
Calibration 3     117,413
ssj_ops@calibrated=117,281
100% 99.8% 117,281 116,989
90% 89.6% 105,553 105,123
80% 80.7% 93,825 94,694
70% 69.6% 82,097 81,652
60% 59.9% 70,369 70,234
50% 49.4% 58,641 57,978
40% 39.9% 46,913 46,739
30% 29.7% 35,184 34,885
20% 19.6% 23,456 23,018
10% 10.0% 11,728 11,698
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Acer-AR380.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     115,531
Calibration 2     116,840
Calibration 3     114,749
ssj_ops@calibrated=115,794
100% 99.8% 115,794 115,616
90% 89.9% 104,215 104,087
80% 80.0% 92,635 92,622
70% 69.6% 81,056 80,566
60% 60.4% 69,476 69,982
50% 49.6% 57,897 57,489
40% 40.6% 46,318 46,965
30% 29.8% 34,738 34,495
20% 20.2% 23,159 23,395
10% 9.9% 11,579 11,472
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
