Acer Incorporated Gateway GW2000h-GW170h F1 SPECpower_ssj2008 = 1,674 overall ssj_ops/watt
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Multi Node
Tested By: Acer Incorporated Test Location: San Jose, CA, USA Test Date: Nov 2, 2009
Hardware Availability: Jan-2010 Software Availability: Jun-2009 Publication: Dec 30, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.5% 1,803,189 748 2,411
90% 90.1% 1,633,514 710 2,299
80% 79.8% 1,446,601 669 2,163
70% 70.2% 1,271,390 629 2,020
60% 60.1% 1,088,835 587 1,856
50% 50.1% 907,495 546 1,663
40% 39.9% 722,759 509 1,420
30% 30.0% 543,601 474 1,148
20% 20.0% 362,394 436 831
10% 9.9% 180,025 380 473
Active Idle 0 260 0
∑ssj_ops / ∑power = 1,674

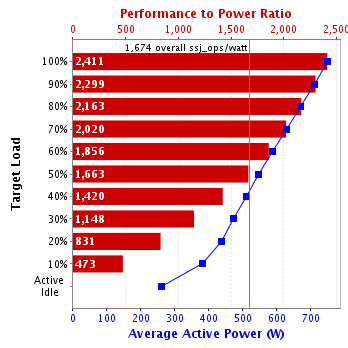

Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
4 8 32 64 32.0 4 16
System Under Test
Shared Hardware
Shared Hardware
Enclosure: GW2000h
Form Factor: 2U
Power Supply Quantity and Rating (W): 1 x 1400
Power Supply Details: Supermicro PWS-1K41P-1R
Network Switch: 5-PORT Gigabit Switch
Network Switch Details: PROSAFE 5-PORT Gigabit Switch GS105
KVM Switch: IOGear MiniView Extreme GCS1734 4-port KVM Switch
KVM Switch Details: None
Other Hardware: None
Comment: Network switch is a standalone device and is not included in the measured power.
Set: 'sut'
Set Identifier: sut
Set Description: None
# of Identical Nodes: 4
Comment: System Under Test
Hardware per Node
Hardware Vendor: Acer Incorporated
Model: Gateway GW2000h-GW170h F1
Form Factor: 1U
CPU Name: Intel Xeon L5520
CPU Characteristics: Quad-Core, 2.26GHz, 8MB L3 Cache
CPU Frequency (MHz): 2266
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 16 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 4 x 2048 MB
Memory Details: 2GB 2Rx8 PC3-10600E; slots 1A and 2A are populated on each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: Intel X25-E Extreme 64 GB SLC SSD - SSDSA2SH064G1GC
Disk Controller: Intel ICH10R SATA 3.0Gbps Controller
# and type of Network Interface Cards (NICs) Installed: 2 x Intel 82576 Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Balanced power enabled in OS
Operating System (OS): Windows Server 2008 x64, Enterprise Edition
OS Version: SP2
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle JRockit(R) 6 P28.0.0 (build P28.0.0-29-114096-1.6.0_11-20090427-1759-windows-x86_64, compiled mode)
JVM Command-line Options: -Xms1600m -Xmx1500m -Xns1600m -XXaggressive -XlargePages -XXthroughputCompaction -XXcallprofiling -XXlazyUnlocking -Xgc:genpar -XXgcthreads:4 -XXtlasize:min=12k,preferred=1024k
JVM Affinity: start /affinity [0xF, 0xF0, 0xF00, 0xF000]
JVM Instances: 4
JVM Initial Heap (MB): 1600
JVM Maximum Heap (MB): 1600
JVM Address Bits: 64
Boot Firmware Version: D02 10/15/2009
Management Firmware Version: 0.03 10/26/2009
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT Notes
Management Firmware Settings
None
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Acer Incorporated
Model: Gateway GR160 F1
CPU Description: Intel Xeon E5504
Memory amount (GB): 4
Software
Operating System (OS): Windows Server 2008 x64, Enterprise Edition SP2
JVM Vendor: Oracle Corporation
JVM Version: Oracle JRockit(R) 6 P28.0.0 (build P28.0.0-29-114096-1.6.0_11-20090427-1759-windows-x86_64, compiled mode)
CCS Version: 1.2.4
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91H851272
Connectivity: RS232
Input Connection: Default
Calibration Institute: NIST
Accredited by: SE-Laboratories
Calibration Label: C56-0071
Date of Calibration: 15-Jun-2009
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.8-76a9e72a
Setup Description: None
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.0.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: None
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 748 21.2
90% 710 21.2
80% 669 21.2
70% 629 21.2
60% 587 21.2
50% 546 21.1
40% 509 21.1
30% 474 21.2
20% 436 21.1
10% 380 21.0
Active Idle 260 21.0
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 21.0 26
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,794,846
Calibration 2     1,813,123
Calibration 3     1,811,034
ssj_ops@calibrated=1,812,079
100% 99.5% 1,812,079 1,803,189
90% 90.1% 1,630,871 1,633,514
80% 79.8% 1,449,663 1,446,601
70% 70.2% 1,268,455 1,271,390
60% 60.1% 1,087,247 1,088,835
50% 50.1% 906,039 907,495
40% 39.9% 724,831 722,759
30% 30.0% 543,624 543,601
20% 20.0% 362,416 362,394
10% 9.9% 181,208 180,025
Active Idle   0 0

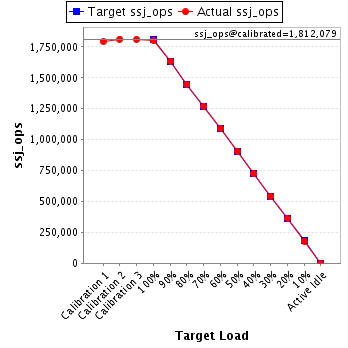

Graph of results
See the Aggregate Performance Report for additional details.
