SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2009 Standard Performance Evaluation Corporation
| IBM Corporation IBM System x3250 M3 | SPECpower_ssj2008 = 2,098 overall ssj_ops/watt | ||||
| Test Sponsor: | IBM Corporation | SPEC License #: | 11 | Test Method: | Single Node |
| Tested By: | IBM Corporation | Test Location: | NanKang, Taipei, Taiwan | Test Date: | Nov 2, 2009 |
| Hardware Availability: | Sep-2009 | Software Availability: | Jun-2009 | Publication: | Nov 18, 2009 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

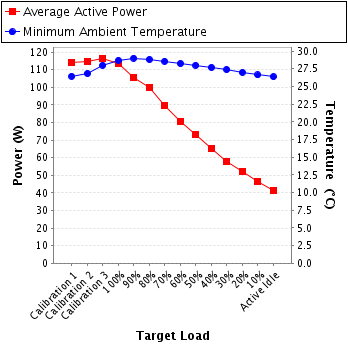

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 114 | 26.4 |
| Calibration 2 | 114 | 26.8 |
| Calibration 3 | 117 | 28.0 |
| 100% | 113 | 28.7 |
| 90% | 105 | 29.0 |
| 80% | 99.6 | 28.8 |
| 70% | 89.5 | 28.6 |
| 60% | 80.7 | 28.2 |
| 50% | 73.0 | 28.0 |
| 40% | 65.4 | 27.7 |
| 30% | 57.9 | 27.4 |
| 20% | 52.3 | 27.0 |
| 10% | 46.7 | 26.6 |
| Active Idle | 41.6 | 26.4 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. LTD |
| Model: | WT210 |
| Serial Number: | 91H245649 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Calibration Institute: | NML/ROC |
| Accredited by: | ETC, Taiwan |
| Calibration Label: | 09-04-BAC-150-03 |
| Date of Calibration: | 13-Apr-2009 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.8-76a9e72a |
| Setup Description: | Unknown |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | Unknown |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 206 | 300.0 | 0.583 | 1.0 | 0.950 | 114 | 0.4% |
| Calibration 2 | 207 | 300.0 | 0.581 | 1.0 | 0.949 | 114 | 0.4% |
| Calibration 3 | 208 | 300.0 | 0.591 | 1.0 | 0.950 | 117 | 0.4% |
| 100% | 207 | 300.0 | 0.577 | 1.0 | 0.948 | 113 | 0.4% |
| 90% | 208 | 300.0 | 0.541 | 1.0 | 0.939 | 105 | 0.5% |
| 80% | 208 | 300.0 | 0.516 | 1.0 | 0.930 | 99.6 | 0.5% |
| 70% | 208 | 300.0 | 0.472 | 1.0 | 0.914 | 89.5 | 0.5% |
| 60% | 208 | 300.0 | 0.433 | 0.5 | 0.896 | 80.7 | 0.4% |
| 50% | 208 | 300.0 | 0.400 | 0.5 | 0.879 | 73.0 | 0.4% |
| 40% | 208 | 300.0 | 0.366 | 0.5 | 0.860 | 65.4 | 0.4% |
| 30% | 208 | 300.0 | 0.332 | 0.5 | 0.840 | 57.9 | 0.5% |
| 20% | 207 | 300.0 | 0.307 | 0.5 | 0.821 | 52.3 | 0.5% |
| 10% | 208 | 300.0 | 0.283 | 0.5 | 0.793 | 46.7 | 0.6% |
| Active Idle | 209 | 300.0 | 0.262 | 0.5 | 0.761 | 41.6 | 0.6% |
