Acer Incorporated Gateway GW1000-GW170 F1 ssj_ops@100% = 448,639
ssj_ops@100% per JVM = 112,160
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Multi Node
Tested By: Acer Incorporated Test Location: San Jose, CA, USA Test Date: Oct 29, 2009
Hardware Availability: Dec-2009 Software Availability: Jun-2009 Publication: Nov 18, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     444,769
Calibration 2     449,636
Calibration 3     450,653
ssj_ops@calibrated=450,144
100% 99.7% 450,144 448,639
90% 90.0% 405,130 404,981
80% 80.2% 360,115 361,073
70% 69.8% 315,101 314,238
60% 59.7% 270,087 268,954
50% 50.3% 225,072 226,226
40% 39.8% 180,058 179,083
30% 30.1% 135,043 135,409
20% 20.0% 90,029 89,917
10% 10.2% 45,014 45,737
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: None
# of Identical Nodes: 2
Comment: System Under Test
Hardware
Hardware Vendor: Acer Incorporated
Model: Gateway GW1000-GW170 F1
Form Factor: 1U
CPU Name: Intel Xeon L5520
CPU Characteristics: Quad-Core, 2.26GHz, 8MB L3 Cache
CPU Frequency (MHz): 2266
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 16 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 4 x 2048 MB
Memory Details: 2GB 2Rx8 PC3-10600E; slots 1A and 2A are populated on each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: Intel X25-E Extreme 64 GB SLC SSD - SSDSA2SH064G1GC
Disk Controller: Intel ICH10R SATA 3.0Gbps Controller
# and type of Network Interface Cards (NICs) Installed: 2 x Intel 82576 Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced power enabled in OS
Operating System (OS): Windows Server 2008 x64, Enterprise Edition
OS Version: SP2
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle JRockit(R) 6 P28.0.0 (build P28.0.0-29-114096-1.6.0_11-20090427-1759-windows-x86_64, compiled mode)
JVM Command-line Options: -Xms1600m -Xmx1500m -Xns1600m -XXaggressive -XlargePages -XXthroughputCompaction -XXcallprofiling -XXlazyUnlocking -Xgc:genpar -XXgcthreads:4 -XXtlasize:min=12k,preferred=1024k
JVM Affinity: start /affinity [0xF, 0xF0, 0xF00, 0xF000]
JVM Instances: 4
JVM Initial Heap (MB): 1600
JVM Maximum Heap (MB): 1600
JVM Address Bits: 64
Boot Firmware Version: D02 10/15/2009
Management Firmware Version: 0.03 10/26/2009
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT Notes
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
Acer-GW1000-Sut1.001 112,987
Acer-GW1000-Sut1.002 112,468
Acer-GW1000-Sut1.003 110,946
Acer-GW1000-Sut1.004 112,238
ssj_ops@100% 448,639
ssj_ops@100% per JVM 112,160

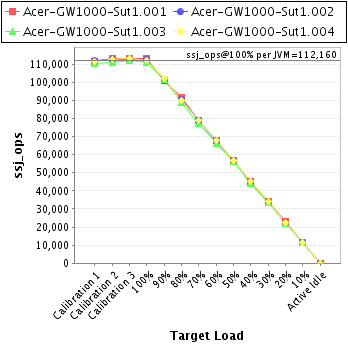

Graph of per-instance results
JVM 'Acer-GW1000-Sut1.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,378
Calibration 2     113,284
Calibration 3     112,929
ssj_ops@calibrated=113,106
100% 99.9% 113,106 112,987
90% 89.0% 101,796 100,689
80% 80.7% 90,485 91,311
70% 69.8% 79,174 78,962
60% 59.7% 67,864 67,541
50% 50.0% 56,553 56,529
40% 39.8% 45,243 44,994
30% 30.1% 33,932 34,053
20% 20.4% 22,621 23,072
10% 10.2% 11,311 11,554
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Acer-GW1000-Sut1.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,743
Calibration 2     112,561
Calibration 3     112,695
ssj_ops@calibrated=112,628
100% 99.9% 112,628 112,468
90% 89.7% 101,365 100,989
80% 80.6% 90,102 90,722
70% 70.1% 78,839 78,975
60% 59.9% 67,577 67,455
50% 50.4% 56,314 56,712
40% 39.8% 45,051 44,878
30% 29.8% 33,788 33,597
20% 19.8% 22,526 22,255
10% 10.2% 11,263 11,534
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Acer-GW1000-Sut1.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,411
Calibration 2     111,161
Calibration 3     111,913
ssj_ops@calibrated=111,537
100% 99.5% 111,537 110,946
90% 91.0% 100,383 101,448
80% 79.8% 89,229 89,026
70% 69.2% 78,076 77,230
60% 59.4% 66,922 66,274
50% 50.4% 55,768 56,199
40% 39.4% 44,615 43,914
30% 30.1% 33,461 33,583
20% 19.8% 22,307 22,125
10% 10.1% 11,154 11,221
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'Acer-GW1000-Sut1.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,238
Calibration 2     112,630
Calibration 3     113,117
ssj_ops@calibrated=112,873
100% 99.4% 112,873 112,238
90% 90.2% 101,586 101,856
80% 79.7% 90,299 90,013
70% 70.1% 79,011 79,072
60% 60.0% 67,724 67,684
50% 50.3% 56,437 56,786
40% 40.1% 45,149 45,298
30% 30.3% 33,862 34,176
20% 19.9% 22,575 22,465
10% 10.1% 11,287 11,429
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
