SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2009 Standard Performance Evaluation Corporation
| IBM Corporation IBM System x3650 M2 | SPECpower_ssj2008 = 2,053 overall ssj_ops/watt | ||||
| Test Sponsor: | IBM Corporation | SPEC License #: | 11 | Test Method: | Single Node |
| Tested By: | IBM Corporation | Test Location: | Nangang, Taipei, Taiwan | Test Date: | Oct 23, 2009 |
| Hardware Availability: | Sep-2009 | Software Availability: | Jun-2009 | Publication: | Oct 23, 2009 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

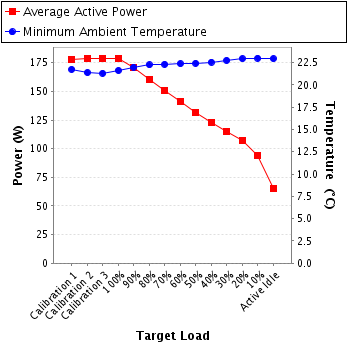

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 178 | 21.8 |
| Calibration 2 | 179 | 21.4 |
| Calibration 3 | 179 | 21.3 |
| 100% | 179 | 21.6 |
| 90% | 171 | 22.0 |
| 80% | 161 | 22.2 |
| 70% | 150 | 22.3 |
| 60% | 141 | 22.4 |
| 50% | 132 | 22.4 |
| 40% | 123 | 22.6 |
| 30% | 115 | 22.8 |
| 20% | 107 | 22.9 |
| 10% | 94.5 | 23.0 |
| Active Idle | 65.4 | 22.9 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | YOKOGAWA |
| Model: | WT210+ RS-232 |
| Serial Number: | 91H245648 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Calibration Institute: | NML/ROC |
| Accredited by: | ETC, Taiwan |
| Calibration Label: | 09-04-BAC-150-02 |
| Date of Calibration: | 13-Apr-2009 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.8-76a9e72a |
| Setup Description: | Unknown |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi, Inc. |
| Model: | Watchport/H USB |
| Driver Version: | 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | Unknown |

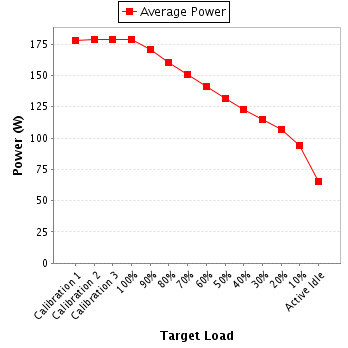

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 207 | 300.0 | 0.920 | 1.0 | 0.933 | 178 | 0.3% |
| Calibration 2 | 207 | 300.0 | 0.925 | 1.0 | 0.934 | 179 | 0.3% |
| Calibration 3 | 206 | 300.0 | 0.930 | 1.0 | 0.935 | 179 | 0.3% |
| 100% | 206 | 300.0 | 0.930 | 1.0 | 0.935 | 179 | 0.3% |
| 90% | 205 | 300.0 | 0.893 | 1.0 | 0.930 | 171 | 0.4% |
| 80% | 206 | 300.0 | 0.848 | 1.0 | 0.921 | 161 | 0.4% |
| 70% | 208 | 300.0 | 0.797 | 1.0 | 0.909 | 150 | 0.4% |
| 60% | 208 | 300.0 | 0.754 | 1.0 | 0.898 | 141 | 0.4% |
| 50% | 208 | 300.0 | 0.714 | 1.0 | 0.888 | 132 | 0.4% |
| 40% | 208 | 300.0 | 0.676 | 1.0 | 0.875 | 123 | 0.5% |
| 30% | 208 | 300.0 | 0.644 | 1.0 | 0.863 | 115 | 0.5% |
| 20% | 208 | 300.0 | 0.609 | 1.0 | 0.845 | 107 | 0.5% |
| 10% | 208 | 300.0 | 0.560 | 1.0 | 0.811 | 94.5 | 0.6% |
| Active Idle | 208 | 300.0 | 0.444 | 1.0 | 0.708 | 65.4 | 0.8% |
