IBM Corporation System x3250 M3 ssj_ops@100% = 314,314
ssj_ops@100% per JVM = 157,157
Test Sponsor: IBM Corporation SPEC License #: 11 Test Method: Single Node
Tested By: IBM Corporation Test Location: NanKang, Taipei, Taiwan Test Date: Sep 18, 2009
Hardware Availability: Sep-2009 Software Availability: Jun-2009 Publication: Oct 8, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     312,802
Calibration 2     314,956
Calibration 3     314,699
ssj_ops@calibrated=314,827
100% 99.8% 314,827 314,314
90% 89.8% 283,345 282,737
80% 80.0% 251,862 251,799
70% 69.9% 220,379 220,131
60% 60.1% 188,896 189,289
50% 50.3% 157,414 158,237
40% 39.8% 125,931 125,154
30% 29.9% 94,448 94,143
20% 19.9% 62,965 62,765
10% 10.1% 31,483 31,774
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: IBM Corporation
Model: System x3250 M3
Form Factor: 1U
CPU Name: Intel Xeon X3470
CPU Characteristics: Quad-Core, 2.93GHz, 1333MHz system Bus, 8MB L3 Cache
CPU Frequency (MHz): 2933
CPU(s) Enabled: 4 cores, 1 chip, 4 cores/chip
Hardware Threads: 8 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 2 x 4096 MB
Memory Details: 4GB 2Rx8 PC3-10600R ECC CL9; slots 1 and 4 populated
Power Supply Quantity and Rating (W): 1 x 350
Power Supply Details: IBM P/N:49Y4662
Disk Drive: 1 x 250GB 7200RPM 3.5" SATA (IBM P/N:42C0463)
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 2 x Integrated Intel 82574L Gigabit Ethernet Controller
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: Yes
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2008 x64 Enterprise Edition
OS Version: SP2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build pwa6460sr5-20090529_04(SR5))
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1400m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [0F,F0]
JVM Instances: 2
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: GYE119TUS
Management Firmware Version: YU0039B
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT Notes
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-Y6SQTOEX1RY.001 157,233
WIN-Y6SQTOEX1RY.002 157,081
ssj_ops@100% 314,314
ssj_ops@100% per JVM 157,157

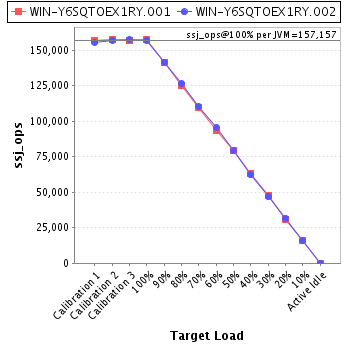

Graph of per-instance results
JVM 'WIN-Y6SQTOEX1RY.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     157,143
Calibration 2     157,794
Calibration 3     157,170
ssj_ops@calibrated=157,482
100% 99.8% 157,482 157,233
90% 89.6% 141,733 141,160
80% 79.6% 125,985 125,430
70% 69.7% 110,237 109,819
60% 59.5% 94,489 93,732
50% 50.3% 78,741 79,144
40% 40.0% 62,993 62,961
30% 30.1% 47,244 47,368
20% 19.7% 31,496 31,066
10% 10.2% 15,748 16,037
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-Y6SQTOEX1RY.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     155,660
Calibration 2     157,162
Calibration 3     157,529
ssj_ops@calibrated=157,346
100% 99.8% 157,346 157,081
90% 90.0% 141,611 141,577
80% 80.3% 125,877 126,369
70% 70.1% 110,142 110,311
60% 60.7% 94,407 95,557
50% 50.3% 78,673 79,092
40% 39.5% 62,938 62,193
30% 29.7% 47,204 46,776
20% 20.1% 31,469 31,699
10% 10.0% 15,735 15,737
Active Idle   0 0

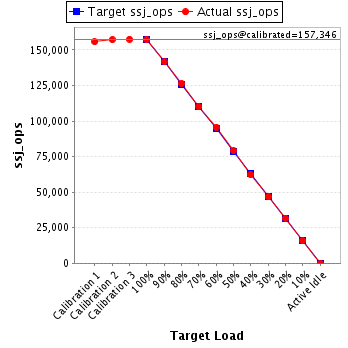

Graph of results
See the JVM Instance Performance Report for additional details.
