Hewlett-Packard Company ProLiant DL380 G6 ssj_ops@100% = 534,763
ssj_ops@100% per JVM = 133,691
Test Sponsor: Hewlett-Packard Company SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett-Packard Company Test Location: Houston, TX, USA Test Date: Sep 8, 2009
Hardware Availability: Sep-2009 Software Availability: Jul-2009 Publication: Nov 4, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     533,027
Calibration 2     535,605
Calibration 3     535,491
ssj_ops@calibrated=535,548
100% 99.9% 535,548 534,763
90% 90.4% 481,993 483,969
80% 80.0% 428,439 428,697
70% 69.8% 374,884 373,744
60% 60.1% 321,329 321,617
50% 50.2% 267,774 269,050
40% 39.9% 214,219 213,803
30% 30.0% 160,664 160,870
20% 19.9% 107,110 106,339
10% 9.9% 53,555 53,228
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: ProLiant DL380 G6 (2.40GHz, Intel Xeon processor L5530)
# of Identical Nodes: 1
Comment: System Under Test
Hardware
Hardware Vendor: Hewlett-Packard Company
Model: ProLiant DL380 G6
Form Factor: 2U
CPU Name: Intel Xeon L5530
CPU Characteristics: Quad-Core, 2.40 GHz, 8 MB L3 cache
CPU Frequency (MHz): 2400
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 16 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 4 x 2048 MB
Memory Details: PC3-10600E CL9; 4 slots populated
Power Supply Quantity and Rating (W): 1 x 460
Power Supply Details: HP Part #503296-B21
Disk Drive: 1 x 60 GB SSD 2.5" SATA; HP part #572071-B21
Disk Controller: HP Smart Array P410i
# and type of Network Interface Cards (NICs) Installed: 2 x NC382i Dual Port Multifunction Gigabit Server Adapters
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced power enabled in OS
Operating System (OS): Microsoft Windows Server 2008 x64, Enterprise Edition
OS Version: SP2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa64 60sr5-20090519_35743 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1100m -Xms1500m -Xmx1500m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /AFFINITY [0xf, 0xf0, 0xf00, 0xf000]
JVM Instances: 4
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: P62 07/24/2009
Management Firmware Version: 1.79
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: NIC driver, HP component cp010995.exe. Driver version: 5.0.16.0
Boot Firmware Settings
See SUT notes
Management Firmware Settings
Remote Console Settings - Persistent Keyboard and Mouse Disabled
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
dl380g6-pwr.001 134,117
dl380g6-pwr.002 133,823
dl380g6-pwr.003 134,314
dl380g6-pwr.004 132,509
ssj_ops@100% 534,763
ssj_ops@100% per JVM 133,691

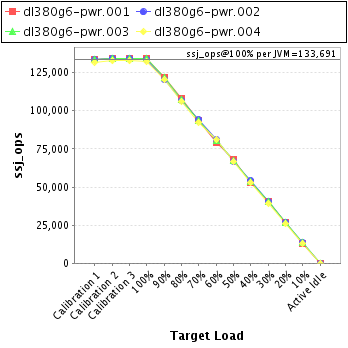

Graph of per-instance results
JVM 'dl380g6-pwr.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     133,797
Calibration 2     134,160
Calibration 3     134,251
ssj_ops@calibrated=134,206
100% 99.9% 134,206 134,117
90% 90.7% 120,785 121,666
80% 80.5% 107,365 108,016
70% 69.6% 93,944 93,419
60% 59.1% 80,523 79,265
50% 50.6% 67,103 67,851
40% 39.7% 53,682 53,277
30% 30.1% 40,262 40,432
20% 19.8% 26,841 26,616
10% 9.8% 13,421 13,129
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'dl380g6-pwr.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     133,386
Calibration 2     134,494
Calibration 3     134,145
ssj_ops@calibrated=134,319
100% 99.6% 134,319 133,823
90% 89.6% 120,887 120,357
80% 79.5% 107,455 106,774
70% 70.2% 94,024 94,266
60% 60.2% 80,592 80,921
50% 49.7% 67,160 66,770
40% 40.5% 53,728 54,368
30% 30.1% 40,296 40,459
20% 20.1% 26,864 27,013
10% 10.1% 13,432 13,604
Active Idle   0 0

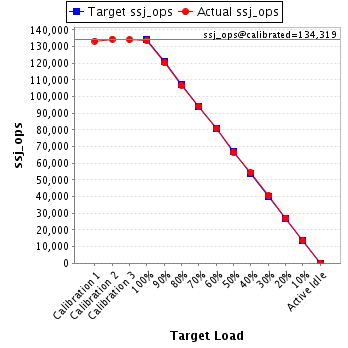

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'dl380g6-pwr.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     133,895
Calibration 2     134,243
Calibration 3     134,347
ssj_ops@calibrated=134,295
100% 100.0% 134,295 134,314
90% 90.5% 120,865 121,546
80% 80.1% 107,436 107,525
70% 69.7% 94,006 93,589
60% 59.9% 80,577 80,429
50% 50.3% 67,147 67,571
40% 39.7% 53,718 53,338
30% 30.2% 40,288 40,592
20% 20.0% 26,859 26,877
10% 9.9% 13,429 13,325
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'dl380g6-pwr.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     131,949
Calibration 2     132,709
Calibration 3     132,748
ssj_ops@calibrated=132,729
100% 99.8% 132,729 132,509
90% 90.7% 119,456 120,400
80% 80.2% 106,183 106,383
70% 69.7% 92,910 92,470
60% 61.0% 79,637 81,002
50% 50.4% 66,364 66,857
40% 39.8% 53,092 52,820
30% 29.7% 39,819 39,388
20% 19.5% 26,546 25,833
10% 9.9% 13,273 13,171
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
