SPECpower_ssj2008
Copyright © 2007-2009 Standard Performance Evaluation Corporation
| Hewlett-Packard Company ProLiant DL360 G6 | SPECpower_ssj2008 = 2,013 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett-Packard Company | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett-Packard Company | Test Location: | Houston, TX, USA | Test Date: | Aug 14, 2009 |
| Hardware Availability: | Sep-2009 | Software Availability: | Jul-2009 | Publication: | Nov 4, 2009 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

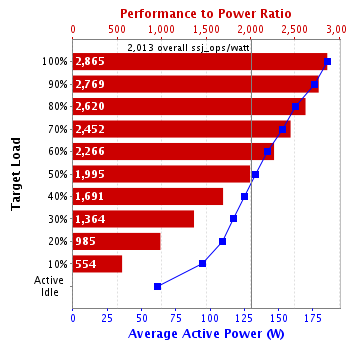

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.8% | 531,629 | 186 | 2,865 |
| 90% | 91.8% | 488,851 | 177 | 2,769 |
| 80% | 80.0% | 425,867 | 163 | 2,620 |
| 70% | 70.4% | 374,718 | 153 | 2,452 |
| 60% | 60.3% | 321,102 | 142 | 2,266 |
| 50% | 49.9% | 265,902 | 133 | 1,995 |
| 40% | 39.8% | 212,062 | 125 | 1,691 |
| 30% | 30.1% | 160,217 | 117 | 1,364 |
| 20% | 20.1% | 107,292 | 109 | 985 |
| 10% | 9.8% | 52,385 | 94.6 | 554 |
| Active Idle | 0 | 62.0 | 0 | |
| ∑ssj_ops / ∑power = | 2,013 | |||
| Set Identifier: | sut |
| Set Description: | ProLiant DL360 G6 (2.40GHz, Intel Xeon L5530 processor) |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Hewlett-Packard Company |
| Model: | ProLiant DL360 G6 |
| Form Factor: | 1U |
| CPU Name: | Intel Xeon L5530 |
| CPU Characteristics: | Quad-Core, 2.40GHz, 8 MB L3 cache |
| CPU Frequency (MHz): | 2400 |
| CPU(s) Enabled: | 8 cores, 2 chips, 4 cores/chip |
| Hardware Threads: | 16 (2 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 8 |
| # and size of DIMM: | 4 x 2048 MB |
| Memory Details: | 2GB 2Rx4 PC3-10600E; slots 3 and 6 are populated on each processor |
| Power Supply Quantity and Rating (W): | 1 x 460 |
| Power Supply Details: | HP part #503296-B21 |
| Disk Drive: | 1 x 60GB SSD 2.5" SATA; HP part #572071-B21 |
| Disk Controller: | HP Smart Array P410i |
| # and type of Network Interface Cards (NICs) Installed: | 2 x NC382i Dual Port Multifunction Gigabit Server Adapters |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Balanced power enabled in OS |
| Operating System (OS): | Microsoft Windows Server 2008 x64, Enterprise Edition |
| OS Version: | SP2 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr5-20090519_35743 (JIT enabled, AOT enabled) |
| JVM Command-line Options: | -Xmn1100m -Xms1500m -Xmx1500m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
| JVM Affinity: | start /AFFINITY [0xF, 0xF0, 0xF00, 0xF000] |
| JVM Instances: | 4 |
| JVM Initial Heap (MB): | 1500 |
| JVM Maximum Heap (MB): | 1500 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | P64 08/14/2009 |
| Management Firmware Version: | 1.79 |
| Workload Version: | SSJ 1.2.6 |
| Director Location: | Controller |
| Other Software: | NIC driver, HP component cp010995.exe. Driver version: 5.0.16.0 |
| Hardware | |
|---|---|
| Hardware Vendor: | Hewlett-Packard Company |
| Model: | ProLiant DL360 G5 |
| CPU Description: | Intel Xeon E5440 |
| Memory amount (GB): | 1 |
| Software | |
|---|---|
| Operating System (OS): | Windows 2003 R2 Enterprise Edition |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | BEA JRockit(R) (build R27.6.0-50_o-100423-1.6.0_05-20080626-2105-windows-ia32, compiled mode) |
| CCS Version: | 1.2.4 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91GC23225 |
| Connectivity: | GPIB |
| Input Connection: | Default |
| Calibration Institute: | NIST |
| Accredited by: | Yokogawa Electric International Pte. Ltd. |
| Calibration Label: | 705418 |
| Date of Calibration: | 26-Nov-2008 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.8-76a9e72a |
| Setup Description: | None |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 4.50.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | None |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 186 | 22.8 |
| 90% | 177 | 22.8 |
| 80% | 163 | 22.6 |
| 70% | 153 | 22.6 |
| 60% | 142 | 22.7 |
| 50% | 133 | 22.6 |
| 40% | 125 | 22.5 |
| 30% | 117 | 22.5 |
| 20% | 109 | 22.4 |
| 10% | 94.6 | 22.3 |
| Active Idle | 62.0 | 22.4 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 208V / 60 Hz / 1 phase / 2 wires | 22.3 | 132 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 530,796 | ||
| Calibration 2 | 532,793 | ||
| Calibration 3 | 532,204 | ||
| ssj_ops@calibrated=532,499 | |||
| 100% | 99.8% | 532,499 | 531,629 |
| 90% | 91.8% | 479,249 | 488,851 |
| 80% | 80.0% | 425,999 | 425,867 |
| 70% | 70.4% | 372,749 | 374,718 |
| 60% | 60.3% | 319,499 | 321,102 |
| 50% | 49.9% | 266,249 | 265,902 |
| 40% | 39.8% | 213,000 | 212,062 |
| 30% | 30.1% | 159,750 | 160,217 |
| 20% | 20.1% | 106,500 | 107,292 |
| 10% | 9.8% | 53,250 | 52,385 |
| Active Idle | 0 | 0 | |
