SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2009 Standard Performance Evaluation Corporation
| Acer Incorporated Altos G540 M2 | SPECpower_ssj2008 = 1,522 overall ssj_ops/watt | ||||
| Test Sponsor: | Acer Incorporated | SPEC License #: | 97 | Test Method: | Single Node |
| Tested By: | Acer Incorporated | Test Location: | Taipei, Taiwan, R.O.C. | Test Date: | Jun 18, 2009 |
| Hardware Availability: | Mar-2009 | Software Availability: | Apr-2009 | Publication: | Sep 23, 2009 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

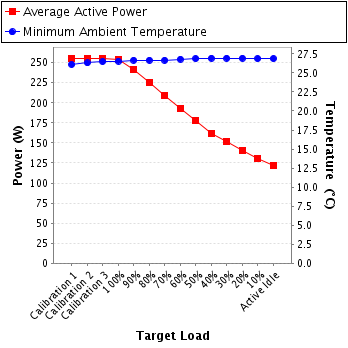

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 255 | 26.1 |
| Calibration 2 | 256 | 26.3 |
| Calibration 3 | 255 | 26.5 |
| 100% | 254 | 26.6 |
| 90% | 242 | 26.7 |
| 80% | 225 | 26.7 |
| 70% | 209 | 26.7 |
| 60% | 193 | 26.8 |
| 50% | 178 | 26.9 |
| 40% | 162 | 26.9 |
| 30% | 151 | 26.9 |
| 20% | 140 | 26.9 |
| 10% | 130 | 26.9 |
| Active Idle | 121 | 26.9 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd |
| Model: | WT210 |
| Serial Number: | 91H534921 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Calibration Institute: | NML (National Measurement Laboratory, R.O.C.) |
| Accredited by: | ETC,TAIWAN |
| Calibration Label: | 09-06-BAC-017-01 |
| Date of Calibration: | 4-Jun-2009 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.8-76a9e72a |
| Setup Description: | None |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc |
| Model: | Watchport/H |
| Driver Version: | 4.50.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | None |

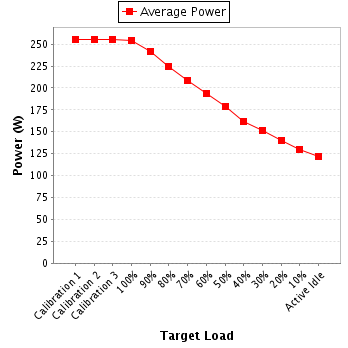

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 213 | 300.0 | 1.24 | 5.0 | 0.965 | 255 | 0.7% |
| Calibration 2 | 213 | 300.0 | 1.25 | 5.0 | 0.965 | 256 | 0.7% |
| Calibration 3 | 213 | 300.0 | 1.24 | 5.0 | 0.965 | 255 | 0.7% |
| 100% | 212 | 300.0 | 1.24 | 5.0 | 0.965 | 254 | 0.7% |
| 90% | 213 | 300.0 | 1.18 | 5.0 | 0.962 | 242 | 0.8% |
| 80% | 214 | 300.0 | 1.10 | 5.0 | 0.956 | 225 | 0.8% |
| 70% | 215 | 300.0 | 1.02 | 2.0 | 0.951 | 209 | 0.5% |
| 60% | 215 | 300.0 | 0.951 | 2.0 | 0.946 | 193 | 0.5% |
| 50% | 214 | 300.0 | 0.883 | 2.0 | 0.943 | 178 | 0.5% |
| 40% | 215 | 300.0 | 0.814 | 2.0 | 0.925 | 162 | 0.6% |
| 30% | 215 | 300.0 | 0.764 | 2.0 | 0.921 | 151 | 0.6% |
| 20% | 216 | 300.0 | 0.713 | 2.0 | 0.914 | 140 | 0.6% |
| 10% | 216 | 300.0 | 0.666 | 2.0 | 0.906 | 130 | 0.7% |
| Active Idle | 216 | 300.0 | 0.625 | 2.0 | 0.897 | 121 | 0.7% |
