SPECpower_ssj2008
Host 'WIN-GKXFR7VVD7O' Performance Report
Copyright © 2007-2009 Standard Performance Evaluation Corporation
| Hewlett-Packard Company ProLiant DL385 G6 (2.6GHz, AMD Opteron 2435 processor) | ssj_ops@100% = 535,814 ssj_ops@100% per JVM = 267,907 |
||||
| Test Sponsor: | Hewlett-Packard Company | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett-Packard Company | Test Location: | Houston, TX, USA | Test Date: | Aug 11, 2009 |
| Hardware Availability: | Aug-2009 | Software Availability: | Jul-2009 | Publication: | Aug 26, 2009 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 539,898 | ||
| Calibration 2 | 538,737 | ||
| Calibration 3 | 538,930 | ||
| ssj_ops@calibrated=538,834 | |||
| 100% | 99.4% | 538,834 | 535,814 |
| 90% | 89.7% | 484,950 | 483,541 |
| 80% | 80.0% | 431,067 | 431,269 |
| 70% | 70.1% | 377,184 | 377,831 |
| 60% | 60.2% | 323,300 | 324,171 |
| 50% | 50.0% | 269,417 | 269,338 |
| 40% | 39.7% | 215,533 | 213,708 |
| 30% | 29.7% | 161,650 | 160,021 |
| 20% | 20.1% | 107,767 | 108,342 |
| 10% | 10.0% | 53,883 | 54,143 |
| Active Idle | 0 | 0 | |
| Set Identifier: | sut |
| Set Description: | ProLiant DL385 G6 (2.6GHz, AMD Opteron 2435 processor) |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Hewlett-Packard Company |
| Model: | ProLiant DL385 G6 (2.6GHz, AMD Opteron 2435 processor) |
| Form Factor: | 2U |
| CPU Name: | 2.6 GHz AMD Opteron 2435 |
| CPU Characteristics: | Six-core, 2.6 GHz, 6MB L3 Cache |
| CPU Frequency (MHz): | 2600 |
| CPU(s) Enabled: | 12 cores, 2 chips, 6 cores/chip |
| Hardware Threads: | 12 (1 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 64 KB I + 64 KB D on chip per core |
| Secondary Cache: | 512 KB I+D on chip per core |
| Tertiary Cache: | 6 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 16 |
| # and size of DIMM: | 4 x 4096 MB |
| Memory Details: | 4GB 2Rx4 PC2-6400P; slots 1 & 2 are populated on each processor |
| Power Supply Quantity and Rating (W): | 1 x 460 |
| Power Supply Details: | HP part # 503296-B21 |
| Disk Drive: | 1 x 120GB 5.4K RPM SFF SATA |
| Disk Controller: | Hp Smart Array P410/512 |
| # and type of Network Interface Cards (NICs) Installed: | 2 x HP NC382i Dual Port Multifunction Gigabit Server Adapters |
| NICs Enabled in Firmware / OS / Connected: | 4/4/2 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Power Saver mode |
| Operating System (OS): | Windows Server 2008 x64, Enterprise Edition |
| OS Version: | SP2 |
| Filesystem: | NFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr5-20090519_35743 (JIT enabled, AOT enabled) |
| JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1450m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
| JVM Affinity: | start /affinity [3F,FC0] |
| JVM Instances: | 2 |
| JVM Initial Heap (MB): | 1875 |
| JVM Maximum Heap (MB): | 1875 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | A22 07/10/2009 |
| Management Firmware Version: | 1.79 08/07/2009 |
| Workload Version: | SSJ 1.2.6 |
| Director Location: | Controller |
| Other Software: | None |

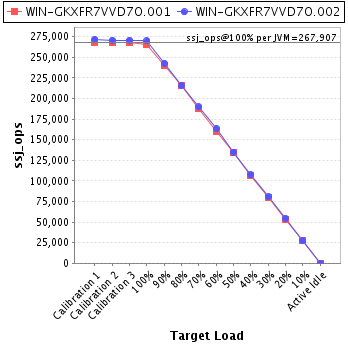

| JVM Instance | ssj_ops@100% |
|---|---|
| WIN-GKXFR7VVD7O.001 | 265,806 |
| WIN-GKXFR7VVD7O.002 | 270,008 |
| ssj_ops@100% | 535,814 |
| ssj_ops@100% per JVM | 267,907 |

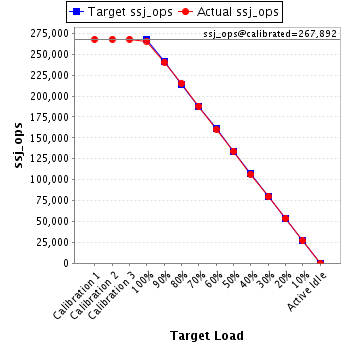

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 267,760 | ||
| Calibration 2 | 267,757 | ||
| Calibration 3 | 268,028 | ||
| ssj_ops@calibrated=267,892 | |||
| 100% | 99.2% | 267,892 | 265,806 |
| 90% | 89.8% | 241,103 | 240,582 |
| 80% | 80.4% | 214,314 | 215,313 |
| 70% | 70.2% | 187,525 | 187,999 |
| 60% | 59.9% | 160,735 | 160,508 |
| 50% | 50.1% | 133,946 | 134,251 |
| 40% | 39.7% | 107,157 | 106,389 |
| 30% | 29.7% | 80,368 | 79,505 |
| 20% | 20.0% | 53,578 | 53,675 |
| 10% | 10.1% | 26,789 | 27,048 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 272,138 | ||
| Calibration 2 | 270,980 | ||
| Calibration 3 | 270,903 | ||
| ssj_ops@calibrated=270,941 | |||
| 100% | 99.7% | 270,941 | 270,008 |
| 90% | 89.7% | 243,847 | 242,959 |
| 80% | 79.7% | 216,753 | 215,956 |
| 70% | 70.1% | 189,659 | 189,831 |
| 60% | 60.4% | 162,565 | 163,663 |
| 50% | 49.9% | 135,471 | 135,088 |
| 40% | 39.6% | 108,376 | 107,319 |
| 30% | 29.7% | 81,282 | 80,516 |
| 20% | 20.2% | 54,188 | 54,667 |
| 10% | 10.0% | 27,094 | 27,095 |
| Active Idle | 0 | 0 | |
