SPECpower_ssj2008
Host 'WIN-47TCWGC97XT' Performance Report
Copyright © 2007-2009 Standard Performance Evaluation Corporation
| ZT Systems 1224Ra Datacenter Server | ssj_ops@100% = 406,954 ssj_ops@100% per JVM = 203,477 |
||||
| Test Sponsor: | Advanced Micro Devices | SPEC License #: | 49 | Test Method: | Single Node |
| Tested By: | Advanced Micro Devices | Test Location: | Austin, TX, USA | Test Date: | Aug 11, 2009 |
| Hardware Availability: | Sep-2009 | Software Availability: | Aug-2009 | Publication: | Aug 26, 2009 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 406,181 | ||
| Calibration 2 | 408,349 | ||
| Calibration 3 | 408,060 | ||
| ssj_ops@calibrated=408,205 | |||
| 100% | 99.7% | 408,205 | 406,954 |
| 90% | 90.3% | 367,384 | 368,764 |
| 80% | 80.6% | 326,564 | 328,855 |
| 70% | 70.0% | 285,743 | 285,672 |
| 60% | 59.8% | 244,923 | 244,308 |
| 50% | 49.7% | 204,102 | 202,968 |
| 40% | 40.1% | 163,282 | 163,637 |
| 30% | 30.1% | 122,461 | 122,754 |
| 20% | 19.9% | 81,641 | 81,063 |
| 10% | 9.9% | 40,820 | 40,391 |
| Active Idle | 0 | 0 | |
| Set Identifier: | sut |
| Set Description: | System Under Test |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | ZT Systems |
| Model: | 1224Ra Datacenter Server |
| Form Factor: | 1U |
| CPU Name: | AMD Opteron 2419 EE |
| CPU Characteristics: | Six-Core, 1.8GHz, 6MB L3 Cache |
| CPU Frequency (MHz): | 1800 |
| CPU(s) Enabled: | 12 cores, 2 chips, 6 cores/chip |
| Hardware Threads: | 12 (1 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 64 KB I + 64 KB D on chip per core |
| Secondary Cache: | 512 KB I+D on chip per core |
| Tertiary Cache: | 6 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 8 |
| # and size of DIMM: | 4 x 2048 MB |
| Memory Details: | 2GB 2Rx4 PC2-6400F ECC CL5; slots 1, 2 populated per processor |
| Power Supply Quantity and Rating (W): | 1 x 460 |
| Power Supply Details: | Sparkle Power Inc SPI4601UG |
| Disk Drive: | 1 x 128GB 2.5" Samsung MMCRE28G5MXP-0VB SATA II SSD |
| Disk Controller: | Integrated Nvidia nForce SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 2 x Nvidia nForce Networking Controller |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | None |
| Mouse: | None |
| Monitor: | Direct |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Balanced Profile Enabled |
| Operating System (OS): | Microsoft Windows Server 2008 Enterprise Edition |
| OS Version: | SP1 (64-bit) |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr5ifx-20090612_37149 (JIT enabled, AOT enabled)) |
| JVM Command-line Options: | -Xms1875m -Xmn1400m -Xmx1875m -Xcompressedrefs -Xaggressive -Xgcpolicy:gencon -Xlp -Xnoloa -XlockReservation -XtlhPrefetch |
| JVM Affinity: | start /affinity [03F,FC0] |
| JVM Instances: | 2 |
| JVM Initial Heap (MB): | 1875 |
| JVM Maximum Heap (MB): | 1875 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | 2.05 |
| Management Firmware Version: | None |
| Workload Version: | SSJ 1.2.6 |
| Director Location: | Controller |
| Other Software: | None |

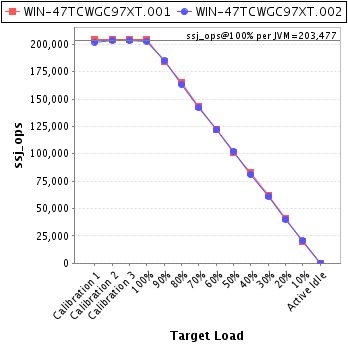

| JVM Instance | ssj_ops@100% |
|---|---|
| WIN-47TCWGC97XT.001 | 204,201 |
| WIN-47TCWGC97XT.002 | 202,753 |
| ssj_ops@100% | 406,954 |
| ssj_ops@100% per JVM | 203,477 |

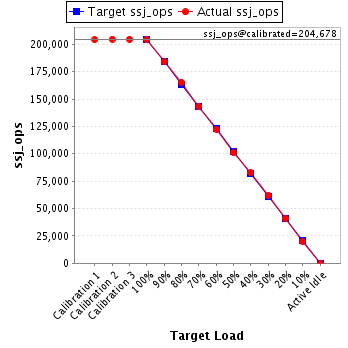

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 204,186 | ||
| Calibration 2 | 204,699 | ||
| Calibration 3 | 204,656 | ||
| ssj_ops@calibrated=204,678 | |||
| 100% | 99.8% | 204,678 | 204,201 |
| 90% | 89.9% | 184,210 | 183,959 |
| 80% | 80.8% | 163,742 | 165,333 |
| 70% | 70.1% | 143,274 | 143,538 |
| 60% | 59.9% | 122,807 | 122,540 |
| 50% | 49.3% | 102,339 | 100,904 |
| 40% | 40.4% | 81,871 | 82,622 |
| 30% | 30.1% | 61,403 | 61,634 |
| 20% | 20.0% | 40,936 | 40,884 |
| 10% | 9.7% | 20,468 | 19,941 |
| Active Idle | 0 | 0 | |

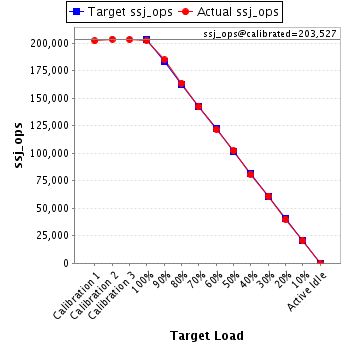

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 201,995 | ||
| Calibration 2 | 203,650 | ||
| Calibration 3 | 203,404 | ||
| ssj_ops@calibrated=203,527 | |||
| 100% | 99.6% | 203,527 | 202,753 |
| 90% | 90.8% | 183,174 | 184,805 |
| 80% | 80.3% | 162,822 | 163,522 |
| 70% | 69.8% | 142,469 | 142,134 |
| 60% | 59.8% | 122,116 | 121,769 |
| 50% | 50.1% | 101,764 | 102,064 |
| 40% | 39.8% | 81,411 | 81,015 |
| 30% | 30.0% | 61,058 | 61,120 |
| 20% | 19.7% | 40,705 | 40,180 |
| 10% | 10.0% | 20,353 | 20,449 |
| Active Idle | 0 | 0 | |
