ZT Systems 1224Ra Datacenter Server SPECpower_ssj2008 = 1,614 overall ssj_ops/watt
Test Sponsor: Advanced Micro Devices SPEC License #: 49 Test Method: Single Node
Tested By: Advanced Micro Devices Test Location: Austin, TX, USA Test Date: Aug 11, 2009
Hardware Availability: Sep-2009 Software Availability: Aug-2009 Publication: Aug 26, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 176 21.2
Calibration 2 179 21.4
Calibration 3 179 21.4
100% 178 21.4
90% 169 21.4
80% 158 21.3
70% 146 21.4
60% 136 21.4
50% 126 21.4
40% 116 21.6
30% 106 21.6
20% 95.6 21.6
10% 85.1 21.6
Active Idle 74.6 21.9

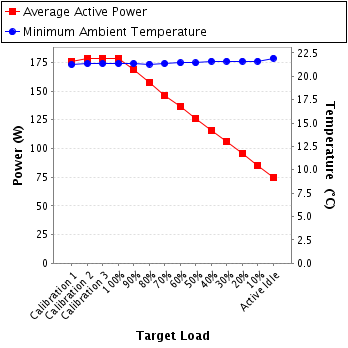

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. LTD
Model: WT210
Serial Number: 91GB53037
Connectivity: RS-232
Input Connection: Default
Calibration Institute: NIST
Accredited by: Davis Calibration
Calibration Label: 3158212
Date of Calibration: 13-Mar-2009
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.8-76a9e72a
Setup Description: Unknown
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 4.20.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: Unknown
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 118 150.0 1.50 2.0 0.992 176 0.3%
Calibration 2 118 150.0 1.52 2.0 0.992 179 0.3%
Calibration 3 118 150.0 1.53 2.0 0.992 179 0.3%
100% 118 150.0 1.52 2.0 0.992 178 0.3%
90% 118 150.0 1.44 2.0 0.992 169 0.3%
80% 118 150.0 1.35 2.0 0.991 158 0.3%
70% 118 150.0 1.25 2.0 0.990 146 0.3%
60% 118 150.0 1.17 2.0 0.988 136 0.4%
50% 118 150.0 1.08 2.0 0.985 126 0.4%
40% 118 150.0 0.998 2.0 0.982 116 0.4%
30% 118 150.0 0.914 2.0 0.980 106 0.4%
20% 118 150.0 0.827 1.0 0.977 95.6 0.3%
10% 118 150.0 0.738 1.0 0.975 85.1 0.3%
Active Idle 118 150.0 0.649 1.0 0.971 74.6 0.3%

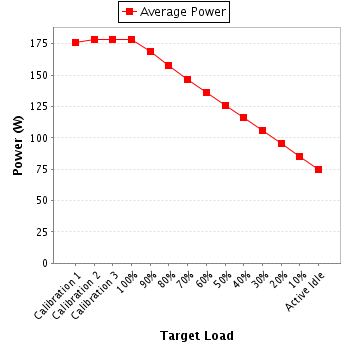

Power details for pwr1
