Plat'Home Cloud Station E SPECpower_ssj2008 = 1,846 overall ssj_ops/watt
Test Sponsor: Plat'Home SPEC License #: 3835 Test Method: Single Node
Tested By: Plat'Home Test Location: Chiyoda-Ku, Tokyo, Japan Test Date: Jul 21, 2009
Hardware Availability: Mar-2009 Software Availability: Jun-2009 Publication: Aug 24, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 169 20.6
Calibration 2 170 20.6
Calibration 3 170 20.7
100% 169 20.4
90% 161 20.8
80% 151 20.4
70% 140 20.6
60% 131 20.5
50% 121 20.5
40% 113 20.6
30% 104 20.6
20% 96.0 20.9
10% 83.3 20.8
Active Idle 56.7 20.8

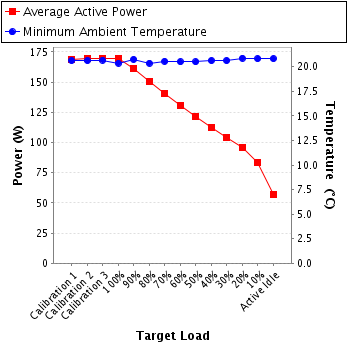

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91J340816
Connectivity: RS-232
Input Connection: Default
Calibration Institute: AIST, JEMIC, and JQA
Accredited by: Yokogawa Electric International Pte. Ltd.
Calibration Label: B091354
Date of Calibration: 25-Mar-2009
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.3.8-76a9e72a
Setup Description: Unknown
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 4.40.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: Unknown
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 103 300.0 1.68 2.0 0.982 169 0.5%
Calibration 2 103 300.0 1.68 2.0 0.982 170 0.5%
Calibration 3 103 300.0 1.68 2.0 0.982 170 0.5%
100% 103 300.0 1.68 2.0 0.982 169 0.5%
90% 103 300.0 1.59 2.0 0.981 161 0.5%
80% 103 300.0 1.49 2.0 0.980 151 0.5%
70% 103 300.0 1.39 2.0 0.978 140 0.6%
60% 102 300.0 1.30 2.0 0.978 131 0.6%
50% 102 300.0 1.22 2.0 0.977 121 0.6%
40% 102 300.0 1.14 2.0 0.974 113 0.7%
30% 101 300.0 1.06 2.0 0.970 104 0.7%
20% 101 300.0 0.985 2.0 0.963 96.0 0.8%
10% 101 300.0 0.871 1.0 0.944 83.3 0.5%
Active Idle 102 300.0 0.586 1.0 0.953 56.7 0.7%

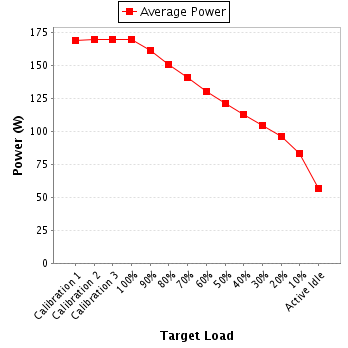

Power details for pwr1
