Hewlett Packard ProLiant DL170h G6 ssj_ops@100% = 1,787,585
ssj_ops@100% per Host = 446,896
ssj_ops@100% per JVM = 111,724
Test Sponsor: Hewlett-Packard Company SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett-Packard Company Test Location: Houston, TX, USA Test Date: Jul 13, 2009
Hardware Availability: Sep-2009 Software Availability: Jun-2009 Publication: Jul 29, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,779,559
Calibration 2     1,795,076
Calibration 3     1,795,698
ssj_ops@calibrated=1,795,387
100% 99.6% 1,795,387 1,787,585
90% 90.0% 1,615,848 1,616,472
80% 79.8% 1,436,310 1,432,751
70% 69.9% 1,256,771 1,255,227
60% 59.7% 1,077,232 1,071,740
50% 49.9% 897,693 895,440
40% 40.1% 718,155 719,161
30% 30.0% 538,616 537,819
20% 20.1% 359,077 360,223
10% 10.1% 179,539 180,608
Active Idle   0 0
Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
4 8 32 64 32.0 4 16
System Under Test
Shared Hardware
Shared Hardware
Enclosure: ProLiant h1000 G6
Form Factor: 2U
Power Supply Quantity and Rating (W): 2 x 750
Power Supply Details: HP part number:512327-B21
Network Switch: HP Procurve 6108
Network Switch Details: 8-Port Gigabit switch.
KVM Switch: None
KVM Switch Details: None
Other Hardware: None
Comment: Network switch is a standalone device and is not included in the measured power.
Set: 'sut'
Set Identifier: sut
Set Description: ProLiant DL4x170h G6
# of Identical Nodes: 4
Comment: None
Hardware per Node
Hardware Vendor: Hewlett Packard
Model: ProLiant DL170h G6
Form Factor: 1U
CPU Name: Intel Xeon L5520
CPU Characteristics: Quad-Core, 2.27 GHz, 8 MB L3 Cache
CPU Frequency (MHz): 2267
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 16 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 4 x 2048 MB
Memory Details: 4 x 2 GB 2Rx4 PC3-10600E, slots 2 and 4 are populated on each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 120 GB 2.5" SSD SATA; HP part #572073-B21
Disk Controller: On board SATA
# and type of Network Interface Cards (NICs) Installed: 2 x HP NC362i
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Enabled ("Power saver" power scheme)
Operating System (OS): Windows Server 2008 Enterprise Edition x64
OS Version: SP2
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle JRockit(R) 6 P28.0.0 (build P28.0.0-29-114096-1.6.0_11-20090427-1759-windows-x86_64, compiled mode)
JVM Command-line Options: -Xms1600m -Xmx1600m -Xns1500m -XXaggressive -XlargePages -XXthroughputCompaction -XXcallprofiling -XXlazyUnlocking -Xgc:genpar -XXgcthreads:4 -XXtlasize:min=12k,preferred=1024k
JVM Affinity: start /affinity [F,F0,F00,F000]
JVM Instances: 4
JVM Initial Heap (MB): 1600
JVM Maximum Heap (MB): 1600
JVM Address Bits: 64
Boot Firmware Version: O34 06/08/09
Management Firmware Version: 9.19, 3/18/2009
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT notes
Management Firmware Settings
none
System Under Test Notes
Notes
Host Instance Summary
Host ssj_ops@100%
Node-1 450,961
Node-2 446,308
Node-3 446,745
Node-4 443,571
ssj_ops@100% 1,787,585
ssj_ops@100% per Host 446,896
ssj_ops@100% per JVM 111,724

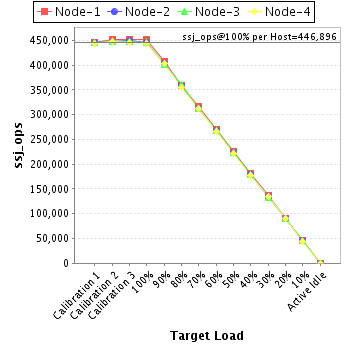

Graph of per-host results
Host 'Node-1' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     446,024
Calibration 2     452,521
Calibration 3     452,616
ssj_ops@calibrated=452,569
100% 99.6% 452,569 450,961
90% 90.0% 407,312 407,313
80% 79.4% 362,055 359,392
70% 70.1% 316,798 317,060
60% 59.5% 271,541 269,191
50% 49.8% 226,284 225,292
40% 40.2% 181,027 181,714
30% 30.0% 135,771 135,926
20% 19.9% 90,514 89,889
10% 10.1% 45,257 45,831
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'Node-2' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     445,098
Calibration 2     446,974
Calibration 3     449,197
ssj_ops@calibrated=448,085
100% 99.6% 448,085 446,308
90% 90.3% 403,277 404,404
80% 80.0% 358,468 358,318
70% 70.0% 313,660 313,477
60% 59.9% 268,851 268,263
50% 50.0% 224,043 223,836
40% 40.0% 179,234 179,155
30% 29.9% 134,426 134,191
20% 20.0% 89,617 89,610
10% 10.1% 44,809 45,099
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'Node-3' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     445,355
Calibration 2     447,784
Calibration 3     448,676
ssj_ops@calibrated=448,230
100% 99.7% 448,230 446,745
90% 89.6% 403,407 401,811
80% 80.4% 358,584 360,418
70% 69.8% 313,761 312,817
60% 59.7% 268,938 267,718
50% 50.0% 224,115 224,268
40% 40.2% 179,292 180,107
30% 29.8% 134,469 133,488
20% 20.2% 89,646 90,504
10% 10.2% 44,823 45,534
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'Node-4' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     443,082
Calibration 2     447,798
Calibration 3     445,209
ssj_ops@calibrated=446,503
100% 99.3% 446,503 443,571
90% 90.2% 401,853 402,944
80% 79.4% 357,203 354,622
70% 69.8% 312,552 311,873
60% 59.7% 267,902 266,568
50% 49.7% 223,252 222,044
40% 39.9% 178,601 178,186
30% 30.1% 133,951 134,213
20% 20.2% 89,301 90,220
10% 9.9% 44,650 44,145
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
