SPECpower_ssj2008
Host 'dl385g6-w2k8' Performance Report
Copyright © 2007-2009 Standard Performance Evaluation Corporation
| Hewlett-Packard ProLiant DL385 G6 (2.6GHz, AMD Opteron 2435 processor) | ssj_ops@100% = 491,305 ssj_ops@100% per JVM = 245,652 |
||||
| Test Sponsor: | Hewlett-Packard Company | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett-Packard Company | Test Location: | Houston, TX, USA | Test Date: | May 31, 2009 |
| Hardware Availability: | Jun-2009 | Software Availability: | Apr-2009 | Publication: | Jul 2, 2009 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 501,520 | ||
| Calibration 2 | 500,007 | ||
| Calibration 3 | 492,388 | ||
| ssj_ops@calibrated=496,198 | |||
| 100% | 99.0% | 496,198 | 491,305 |
| 90% | 90.4% | 446,578 | 448,732 |
| 80% | 80.3% | 396,958 | 398,391 |
| 70% | 70.2% | 347,338 | 348,571 |
| 60% | 59.9% | 297,719 | 297,182 |
| 50% | 50.3% | 248,099 | 249,755 |
| 40% | 39.8% | 198,479 | 197,516 |
| 30% | 30.3% | 148,859 | 150,243 |
| 20% | 19.9% | 99,240 | 98,570 |
| 10% | 10.0% | 49,620 | 49,540 |
| Active Idle | 0 | 0 | |
| Set Identifier: | sut |
| Set Description: | ProLiant DL385 G6 |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Hewlett-Packard |
| Model: | ProLiant DL385 G6 (2.6GHz, AMD Opteron 2435 processor) |
| Form Factor: | 2U |
| CPU Name: | 2.6 GHz AMD Opteron 2435 |
| CPU Characteristics: | Six-Core, 2.6GHz, 6MB L3 Cache |
| CPU Frequency (MHz): | 2600 |
| CPU(s) Enabled: | 12 cores, 2 chips, 6 cores/chip |
| Hardware Threads: | 12 (1 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 64 KB I + 64 KB D on chip per core |
| Secondary Cache: | 512 MB I+D on chip per core |
| Tertiary Cache: | 6 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 16 |
| # and size of DIMM: | 4 x 4096 MB |
| Memory Details: | 4GB 2Rx4 PC2-6400P LP; slots 1 & 2 are populated on each processor |
| Power Supply Quantity and Rating (W): | 1 x 460 |
| Power Supply Details: | part number: 503296-B21 |
| Disk Drive: | 1 x 120 GB 5.4K RPM SFF SATA |
| Disk Controller: | HP Smart Array P410/256 (base model) |
| # and type of Network Interface Cards (NICs) Installed: | 2 x HP NC382i |
| NICs Enabled in Firmware / OS / Connected: | 4/1/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Balanced power enabled in OS |
| Operating System (OS): | Windows Server 2008 x64, Enterprise Edition |
| OS Version: | SP2 |
| Filesystem: | NTFS |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Oracle JRockit(R) 6 P28.0.0 (build P28.0.0-29-114096-1.6.0_11-20090427-1759-windows-x86_64, compiled mode) |
| JVM Command-line Options: | -Xms3700m -Xmx3700m -Xns3200m -XXaggressive -XlargePages -XXcallprofiling -Xgc:genpar -XXgcthreads:6 -XXtlasize:min=12k,preferred=1024k |
| JVM Affinity: | start /affinity [0x3F, 0xFC0] |
| JVM Instances: | 2 |
| JVM Initial Heap (MB): | 3700 |
| JVM Maximum Heap (MB): | 3700 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | A22_0416.09 |
| Management Firmware Version: | 9.19 3/18/07 |
| Workload Version: | SSJ 1.2.6 |
| Director Location: | Controller |
| Other Software: | None |
| JVM Instance | ssj_ops@100% |
|---|---|
| dl385g6-w2k8.001 | 246,110 |
| dl385g6-w2k8.002 | 245,194 |
| ssj_ops@100% | 491,305 |
| ssj_ops@100% per JVM | 245,652 |

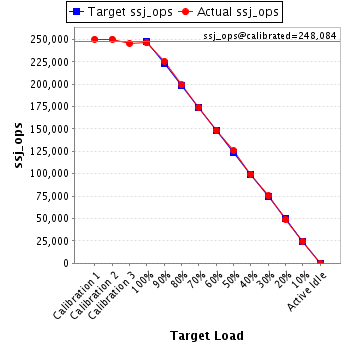

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 250,287 | ||
| Calibration 2 | 250,360 | ||
| Calibration 3 | 245,809 | ||
| ssj_ops@calibrated=248,084 | |||
| 100% | 99.2% | 248,084 | 246,110 |
| 90% | 90.9% | 223,276 | 225,534 |
| 80% | 80.3% | 198,468 | 199,199 |
| 70% | 70.1% | 173,659 | 173,916 |
| 60% | 59.9% | 148,851 | 148,484 |
| 50% | 50.7% | 124,042 | 125,866 |
| 40% | 40.1% | 99,234 | 99,403 |
| 30% | 30.3% | 74,425 | 75,171 |
| 20% | 19.8% | 49,617 | 49,053 |
| 10% | 9.9% | 24,808 | 24,674 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 251,233 | ||
| Calibration 2 | 249,648 | ||
| Calibration 3 | 246,579 | ||
| ssj_ops@calibrated=248,113 | |||
| 100% | 98.8% | 248,113 | 245,194 |
| 90% | 90.0% | 223,302 | 223,198 |
| 80% | 80.3% | 198,491 | 199,193 |
| 70% | 70.4% | 173,679 | 174,655 |
| 60% | 59.9% | 148,868 | 148,697 |
| 50% | 49.9% | 124,057 | 123,889 |
| 40% | 39.5% | 99,245 | 98,113 |
| 30% | 30.3% | 74,434 | 75,072 |
| 20% | 20.0% | 49,623 | 49,518 |
| 10% | 10.0% | 24,811 | 24,866 |
| Active Idle | 0 | 0 | |
