IBM Corporation IBM System x3400 M2 ssj_ops@100% = 548,091
ssj_ops@100% per JVM = 137,023
Test Sponsor: IBM Corporation SPEC License #: 11 Test Method: Single Node
Tested By: IBM Corporation Test Location: Nankang, Taipei, Taiwan Test Date: May 19, 2009
Hardware Availability: May-2009 Software Availability: May-2009 Publication: Jun 3, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     548,451
Calibration 2     551,000
Calibration 3     551,190
ssj_ops@calibrated=551,095
100% 99.5% 551,095 548,091
90% 90.1% 495,985 496,282
80% 80.2% 440,876 441,866
70% 70.2% 385,766 387,041
60% 59.9% 330,657 329,878
50% 50.2% 275,547 276,523
40% 40.0% 220,438 220,639
30% 29.9% 165,328 164,754
20% 20.0% 110,219 110,104
10% 10.0% 55,109 55,235
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: none
Hardware
Hardware Vendor: IBM Corporation
Model: IBM System x3400 M2
Form Factor: Tower
CPU Name: Intel Xeon E5540
CPU Characteristics: Quad-Core, 2.53GHz, 8MB L3 Cache
CPU Frequency (MHz): 2533
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 16 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 4 x 2048 MB
Memory Details: Samsung M393B5673EH1-CH9 DDR3-10600R CL9 ECC; slots 3, 6, 11 and 14 populated
Power Supply Quantity and Rating (W): 1 x 670
Power Supply Details: IBM P/N 39Y7392
Disk Drive: 1 x 160 GB 7.2K RPM SATA
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 2 x Integrated Broadcom NetXtreme II Gigabit NIC
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: Yes
Other Hardware: None
Software
Power Management: Enabled ("Balanced" power scheme)
Operating System (OS): Windows Server 2008 Enterprise Edition x64
OS Version: SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvm pwa6460sr5-20090406_01(SR5) (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1200m -Xms1675m -Xmx1675m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [000F,00F0,0F00,F000]
JVM Instances: 4
JVM Initial Heap (MB): 1675
JVM Maximum Heap (MB): 1675
JVM Address Bits: 64
Boot Firmware Version: 24W
Management Firmware Version: 22A
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT Notes
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-TX4AT0CS0KZ.001 137,224
WIN-TX4AT0CS0KZ.002 137,366
WIN-TX4AT0CS0KZ.003 135,634
WIN-TX4AT0CS0KZ.004 137,867
ssj_ops@100% 548,091
ssj_ops@100% per JVM 137,023

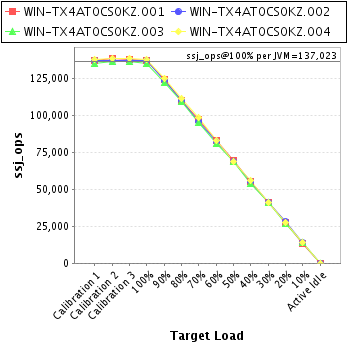

Graph of per-instance results
JVM 'WIN-TX4AT0CS0KZ.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     137,214
Calibration 2     138,467
Calibration 3     138,240
ssj_ops@calibrated=138,354
100% 99.2% 138,354 137,224
90% 90.0% 124,518 124,524
80% 79.7% 110,683 110,334
70% 70.2% 96,848 97,101
60% 60.2% 83,012 83,227
50% 50.4% 69,177 69,714
40% 40.1% 55,342 55,446
30% 29.5% 41,506 40,879
20% 19.9% 27,671 27,503
10% 9.8% 13,835 13,545
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TX4AT0CS0KZ.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     137,733
Calibration 2     137,486
Calibration 3     137,470
ssj_ops@calibrated=137,478
100% 99.9% 137,478 137,366
90% 90.2% 123,730 124,063
80% 80.4% 109,982 110,584
70% 69.9% 96,235 96,073
60% 60.0% 82,487 82,554
50% 50.1% 68,739 68,864
40% 40.1% 54,991 55,145
30% 30.1% 41,243 41,381
20% 20.3% 27,496 27,970
10% 10.0% 13,748 13,774
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TX4AT0CS0KZ.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     135,412
Calibration 2     136,457
Calibration 3     136,505
ssj_ops@calibrated=136,481
100% 99.4% 136,481 135,634
90% 89.6% 122,833 122,288
80% 80.3% 109,185 109,554
70% 69.9% 95,537 95,332
60% 59.5% 81,888 81,166
50% 50.7% 68,240 69,169
40% 39.7% 54,592 54,166
30% 30.3% 40,944 41,354
20% 19.6% 27,296 26,799
10% 10.1% 13,648 13,799
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-TX4AT0CS0KZ.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     138,092
Calibration 2     138,590
Calibration 3     138,975
ssj_ops@calibrated=138,782
100% 99.3% 138,782 137,867
90% 90.4% 124,904 125,407
80% 80.3% 111,026 111,394
70% 71.0% 97,148 98,534
60% 59.8% 83,269 82,931
50% 49.6% 69,391 68,776
40% 40.3% 55,513 55,882
30% 29.6% 41,635 41,140
20% 20.1% 27,756 27,832
10% 10.2% 13,878 14,116
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
