SPECpower_ssj2008
Copyright © 2007-2009 Standard Performance Evaluation Corporation
| IBM Corporation IBM System x3650 M2 | SPECpower_ssj2008 = 1,929 overall ssj_ops/watt | ||||
| Test Sponsor: | IBM Corporation | SPEC License #: | 11 | Test Method: | Single Node |
| Tested By: | IBM Corporation | Test Location: | RTP, NC, USA | Test Date: | May 14, 2009 |
| Hardware Availability: | Jun-2009 | Software Availability: | Jun-2009 | Publication: | May 20, 2009 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

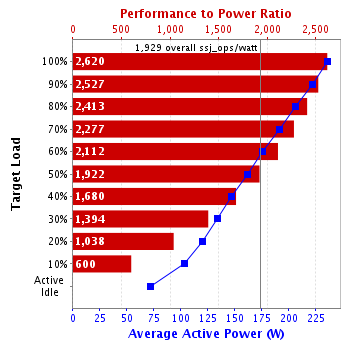

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.6% | 617,957 | 236 | 2,620 |
| 90% | 90.3% | 560,266 | 222 | 2,527 |
| 80% | 80.4% | 498,387 | 207 | 2,413 |
| 70% | 70.2% | 435,441 | 191 | 2,277 |
| 60% | 60.0% | 372,068 | 176 | 2,112 |
| 50% | 50.1% | 310,402 | 162 | 1,922 |
| 40% | 39.9% | 247,578 | 147 | 1,680 |
| 30% | 30.1% | 186,675 | 134 | 1,394 |
| 20% | 20.0% | 124,334 | 120 | 1,038 |
| 10% | 10.0% | 62,296 | 104 | 600 |
| Active Idle | 0 | 72.2 | 0 | |
| ∑ssj_ops / ∑power = | 1,929 | |||
| Set Identifier: | sut |
| Set Description: | System Under Test |
| # of Identical Nodes: | 1 |
| Comment: | Here is a comment for this set. |
| Hardware | |
|---|---|
| Hardware Vendor: | IBM Corporation |
| Model: | IBM System x3650 M2 |
| Form Factor: | 2U |
| CPU Name: | Intel Xeon X5570 |
| CPU Characteristics: | Quad-Core, 2.93GHz, 8MB L3 Cache |
| CPU Frequency (MHz): | 2933 |
| CPU(s) Enabled: | 8 cores, 2 chips, 4 cores/chip |
| Hardware Threads: | 16 (2 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 8 |
| # and size of DIMM: | 4 x 2048 MB |
| Memory Details: | Samsung M393B5673EH1-CH9 DDR3-10600R CL9 ECC; slots 3, 6, 11, and 14 populated |
| Power Supply Quantity and Rating (W): | 1 x 675 |
| Power Supply Details: | IBM P/N 46M1075 |
| Disk Drive: | 1 x 32 GB SATA SSD, IBM Feature code 3747 |
| Disk Controller: | Integrated SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 2 x Integrated Broadcom NetXtreme II Gigabit NIC |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | Yes |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Enabled ("Balanced" power scheme) |
| Operating System (OS): | Microsoft Windows Server 2008 Enterprise Edition x64 |
| OS Version: | SP1 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa6460sr5-20090326_01(SR5) (JIT enabled, AOT enabled) |
| JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1200m -Xms1675m -Xmx1675m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
| JVM Affinity: | start /affinity [0x000F,0x00F0,0x0F00,0xF000] |
| JVM Instances: | 4 |
| JVM Initial Heap (MB): | 1675 |
| JVM Maximum Heap (MB): | 1675 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | 22T |
| Management Firmware Version: | YU0019E |
| Workload Version: | SSJ 1.2.6 |
| Director Location: | SUT |
| Other Software: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | IBM Corporation |
| Model: | System x 3250 |
| CPU Description: | Intel Xeon 2.4GHz |
| Memory amount (GB): | 4 |
| Software | |
|---|---|
| Operating System (OS): | Windows Server 2003 Enterprise Edition |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2003 x86-32 jvmwi3260-20080923_23375 (JIT enabled, AOT enabled) |
| CCS Version: | 1.2.4 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91GB51131 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Calibration Institute: | NIST |
| Accredited by: | SIMCO Electronics |
| Calibration Label: | 34441 |
| Date of Calibration: | 19-Jan-2009 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.8-76a9e72a |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International, Inc. |
| Model: | Watchport/H |
| Driver Version: | 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | Unknown |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 236 | 21.6 |
| 90% | 222 | 21.5 |
| 80% | 207 | 21.3 |
| 70% | 191 | 21.3 |
| 60% | 176 | 21.2 |
| 50% | 162 | 21.1 |
| 40% | 147 | 21.1 |
| 30% | 134 | 21.1 |
| 20% | 120 | 21.0 |
| 10% | 104 | 21.0 |
| Active Idle | 72.2 | 20.9 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 208V / 60 Hz / 1 phase / 2 wires | 20.9 | 132 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 618,775 | ||
| Calibration 2 | 620,106 | ||
| Calibration 3 | 620,227 | ||
| ssj_ops@calibrated=620,167 | |||
| 100% | 99.6% | 620,167 | 617,957 |
| 90% | 90.3% | 558,150 | 560,266 |
| 80% | 80.4% | 496,133 | 498,387 |
| 70% | 70.2% | 434,117 | 435,441 |
| 60% | 60.0% | 372,100 | 372,068 |
| 50% | 50.1% | 310,083 | 310,402 |
| 40% | 39.9% | 248,067 | 247,578 |
| 30% | 30.1% | 186,050 | 186,675 |
| 20% | 20.0% | 124,033 | 124,334 |
| 10% | 10.0% | 62,017 | 62,296 |
| Active Idle | 0 | 0 | |
