SPECpower_ssj2008
Copyright © 2007-2009 Standard Performance Evaluation Corporation
| Hewlett-Packard Company ProLiant DL785 G5 (2.50GHz, AMD Opteron 8381 HE) | SPECpower_ssj2008 = 927 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett-Packard Company | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett-Packard Company | Test Location: | Cupertino, CA, USA | Test Date: | Apr 15, 2009 |
| Hardware Availability: | Jun-2009 | Software Availability: | May-2009 | Publication: | Jun 3, 2009 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

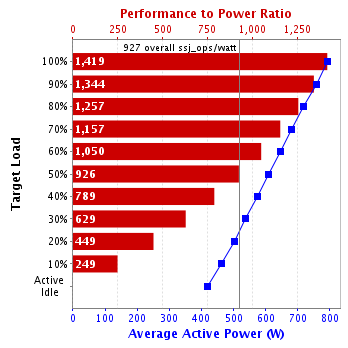

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.5% | 1,123,158 | 792 | 1,419 |
| 90% | 90.1% | 1,016,891 | 757 | 1,344 |
| 80% | 80.0% | 903,399 | 719 | 1,257 |
| 70% | 69.8% | 787,767 | 681 | 1,157 |
| 60% | 60.1% | 678,362 | 646 | 1,050 |
| 50% | 50.0% | 564,590 | 610 | 926 |
| 40% | 40.2% | 453,405 | 575 | 789 |
| 30% | 30.0% | 338,645 | 538 | 629 |
| 20% | 20.0% | 225,706 | 502 | 449 |
| 10% | 10.2% | 114,637 | 461 | 249 |
| Active Idle | 0 | 418 | 0 | |
| ∑ssj_ops / ∑power = | 927 | |||
| Set Identifier: | sut |
| Set Description: | ProLiant DL785 G5 (2.50GHz, AMD Opteron 8381 HE) |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Hewlett-Packard Company |
| Model: | ProLiant DL785 G5 (2.50GHz, AMD Opteron 8381 HE) |
| Form Factor: | 7U |
| CPU Name: | Quad-Core AMD Opteron(r) Processor 8381 HE |
| CPU Characteristics: | Quad-Core, 2.5GHz, 6MB L3 Cache |
| CPU Frequency (MHz): | 2500 |
| CPU(s) Enabled: | 32 cores, 8 chips, 4 cores/chip |
| Hardware Threads: | 32 (1 / core) |
| CPU(s) Orderable: | 4,8 chips |
| Primary Cache: | 64 KB I + 64 KB D on chip per core |
| Secondary Cache: | 512 KB I+D on chip per chip |
| Tertiary Cache: | 6 MB I+D off chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 32 |
| # and size of DIMM: | 16 x 2048 MB |
| Memory Details: | 4GB Reg PC2-5300 2x2GB LP Kit 483401-B21; slots 1 and 2 populated on each board |
| Power Supply Quantity and Rating (W): | 3 x 1200 |
| Power Supply Details: | HP P/N 437572-B21 |
| Disk Drive: | 1 x 73GB 10K RPM SAS |
| Disk Controller: | Integrated P400i SmartArray controller |
| # and type of Network Interface Cards (NICs) Installed: | 2 x NC373i NIC |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | None |
| Optical Drives: | Yes |
| Other Hardware: | none |
| Software | |
|---|---|
| Power Management: | OS Control Mode enabled |
| Operating System (OS): | Microsoft Windows Server 2008 x64 Enterprise Edition |
| OS Version: | Build 6002: Service Pack 2 |
| Filesystem: | NTFS |
| JVM Vendor: | Oracle |
| JVM Version: | Oracle JRockit(R) (build P28.0.0-8-109238-1.6.0_05-20090130-1408-windows-x86_64, compiled mode) |
| JVM Command-line Options: | -Xms3600m -Xmx3600m -Xns3100m -XXaggressive -XlargePages -XXthroughputCompaction -XXcallprofiling -Xgc:genpar -XXgcthreads:4 -XXtlasize:min=12k,preferred=1024k |
| JVM Affinity: | Used "start /AFFINITY" "0xF","0xF0","0xF00","0xF000","0xF0000","0xF00000","0xF000000" and "0xF0000000" CPU masks. |
| JVM Instances: | 16 |
| JVM Initial Heap (MB): | 3600 |
| JVM Maximum Heap (MB): | 3600 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | A15 05/05/2009 |
| Management Firmware Version: | 1.70 |
| Workload Version: | SSJ 1.1.3 |
| Director Location: | Controller |
| Other Software: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Hewlett-Packard Company |
| Model: | Compaq nc6220 |
| CPU Description: | Pentium M |
| Memory amount (GB): | 0.5 |
| Software | |
|---|---|
| Operating System (OS): | Ubuntu 8.10 Intrepid Ibex |
| JVM Vendor: | Sun Microsystems |
| JVM Version: | 1.6.0_u10 |
| CCS Version: | 1.1.3 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91FB02050 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Calibration Institute: | NIST |
| Accredited by: | Instrument Calibration Service |
| Calibration Label: | 67961 |
| Date of Calibration: | 02-Dec-2008 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.2-62d59d34 |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | OS Supplied |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | -- |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 792 | 20.2 |
| 90% | 757 | 20.2 |
| 80% | 719 | 20.2 |
| 70% | 681 | 20.2 |
| 60% | 646 | 20.2 |
| 50% | 610 | 20.2 |
| 40% | 575 | 20.2 |
| 30% | 538 | 20.2 |
| 20% | 502 | 20.2 |
| 10% | 461 | 20.2 |
| Active Idle | 418 | 20.2 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 208V / 60 Hz / 1 phase / 2 wires | 20.2 | 72 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 1,155,021 | ||
| Calibration 2 | 1,132,743 | ||
| Calibration 3 | 1,125,622 | ||
| ssj_ops@calibrated=1,129,183 | |||
| 100% | 99.5% | 1,129,183 | 1,123,158 |
| 90% | 90.1% | 1,016,264 | 1,016,891 |
| 80% | 80.0% | 903,346 | 903,399 |
| 70% | 69.8% | 790,428 | 787,767 |
| 60% | 60.1% | 677,510 | 678,362 |
| 50% | 50.0% | 564,591 | 564,590 |
| 40% | 40.2% | 451,673 | 453,405 |
| 30% | 30.0% | 338,755 | 338,645 |
| 20% | 20.0% | 225,837 | 225,706 |
| 10% | 10.2% | 112,918 | 114,637 |
| Active Idle | 0 | 0 | |
