SPECpower_ssj2008
Host '0001' Performance Report
Copyright © 2007-2009 Standard Performance Evaluation Corporation
| Hewlett-Packard Company ProLiant DL360 G6 (2.93GHz, Intel Xeon processor X5570) | ssj_ops@100% = 533,105 ssj_ops@100% per JVM = 266,552 |
||||
| Test Sponsor: | Hewlett-Packard Company | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett-Packard Company | Test Location: | Houston, TX | Test Date: | Mar 20, 2009 |
| Hardware Availability: | Apr-2009 | Software Availability: | May-2009 | Publication: | Apr 23, 2009 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 530,760 | ||
| Calibration 2 | 540,332 | ||
| Calibration 3 | 538,111 | ||
| ssj_ops@calibrated=539,222 | |||
| 100% | 98.9% | 539,222 | 533,105 |
| 90% | 91.1% | 485,300 | 491,034 |
| 80% | 80.1% | 431,377 | 431,992 |
| 70% | 70.0% | 377,455 | 377,295 |
| 60% | 60.4% | 323,533 | 325,509 |
| 50% | 50.0% | 269,611 | 269,398 |
| 40% | 39.8% | 215,689 | 214,521 |
| 30% | 29.9% | 161,767 | 161,073 |
| 20% | 19.8% | 107,844 | 106,890 |
| 10% | 10.0% | 53,922 | 53,694 |
| Active Idle | 0 | 0 | |
| Set Identifier: | sut |
| Set Description: | ProLiant DL360 G6 (2.93GHz, Intel Xeon processor X5570) |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Hewlett-Packard Company |
| Model: | ProLiant DL360 G6 (2.93GHz, Intel Xeon processor X5570) |
| Form Factor: | -- |
| CPU Name: | Intel Xeon X5570 |
| CPU Characteristics: | Quad-Core, 2.93GHz, 8MB L3 Cache |
| CPU Frequency (MHz): | 2933 |
| CPU(s) Enabled: | 8 cores, 2 chips, 4 cores/chip |
| Hardware Threads: | 16 (2 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 8 |
| # and size of DIMM: | 4 x 2048 GB |
| Memory Details: | PC3-10600E; 4 slots populated |
| Power Supply Quantity and Rating (W): | 1 x 460 |
| Power Supply Details: | HP part # 503296-B21 |
| Disk Drive: | 1 x 120GB HP, 1.5G, 5.4 K RPM 2.5" SATA |
| Disk Controller: | HP Smart Array P410i |
| # and type of Network Interface Cards (NICs) Installed: | 2 x NC382i Dual Port Multifunction Gigabit Server Adapters |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Power Saver mode |
| Operating System (OS): | Microsoft Windows Server 2008 x64 Enterprise Edition |
| OS Version: | SP 1 |
| Filesystem: | NTFS |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Oracle JRockit(R) 6 P28.0.0 (build P28.0.0-14-111048-1.6.0_05-20090303-1104-windows-x86_64, compiled mode) |
| JVM Command-line Options: | -Xms3350m -Xmx3350m -Xns2900m -XXaggressive -Xlargepages -Xgc:genpar -XXcallprofiling -XXgcthreads=8 -XXtlasize:min=4k,preferred=1024k |
| JVM Affinity: | Used "start /AFFINITY" "0xFF", "0xFF00" CPU masks. |
| JVM Instances: | 4 |
| JVM Initial Heap (MB): | 3350 |
| JVM Maximum Heap (MB): | 3350 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | -- |
| Management Firmware Version: | -- |
| Workload Version: | SSJ 1.1.3 |
| Director Location: | Controller |
| Other Software: | None |

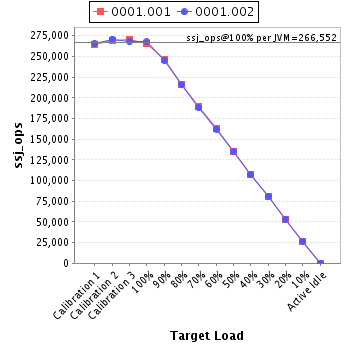

| JVM Instance | ssj_ops@100% |
|---|---|
| 0001.001 | 265,580 |
| 0001.002 | 267,525 |
| ssj_ops@100% | 533,105 |
| ssj_ops@100% per JVM | 266,552 |

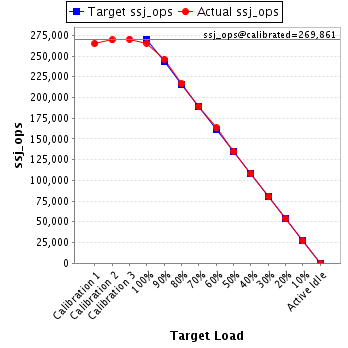

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 264,885 | ||
| Calibration 2 | 269,395 | ||
| Calibration 3 | 270,327 | ||
| ssj_ops@calibrated=269,861 | |||
| 100% | 98.4% | 269,861 | 265,580 |
| 90% | 91.2% | 242,875 | 246,113 |
| 80% | 80.2% | 215,889 | 216,340 |
| 70% | 70.1% | 188,902 | 189,130 |
| 60% | 60.5% | 161,916 | 163,364 |
| 50% | 50.0% | 134,930 | 134,875 |
| 40% | 39.9% | 107,944 | 107,689 |
| 30% | 29.8% | 80,958 | 80,433 |
| 20% | 19.8% | 53,972 | 53,493 |
| 10% | 10.0% | 26,986 | 26,891 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 265,875 | ||
| Calibration 2 | 270,938 | ||
| Calibration 3 | 267,784 | ||
| ssj_ops@calibrated=269,361 | |||
| 100% | 99.3% | 269,361 | 267,525 |
| 90% | 90.9% | 242,425 | 244,921 |
| 80% | 80.1% | 215,489 | 215,652 |
| 70% | 69.9% | 188,553 | 188,165 |
| 60% | 60.2% | 161,617 | 162,145 |
| 50% | 49.9% | 134,681 | 134,523 |
| 40% | 39.7% | 107,744 | 106,832 |
| 30% | 29.9% | 80,808 | 80,640 |
| 20% | 19.8% | 53,872 | 53,397 |
| 10% | 10.0% | 26,936 | 26,803 |
| Active Idle | 0 | 0 | |
