SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2009 Standard Performance Evaluation Corporation
| Hewlett-Packard Company ProLiant DL380 G4 (3.8GHz, Intel Xeon processor) | SPECpower_ssj2008 = 45.2 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett-Packard Company | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett-Packard Company | Test Location: | Houston, TX | Test Date: | Mar 16, 2009 |
| Hardware Availability: | Sep-2004 | Software Availability: | Oct-2005 | Publication: | Apr 8, 2009 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

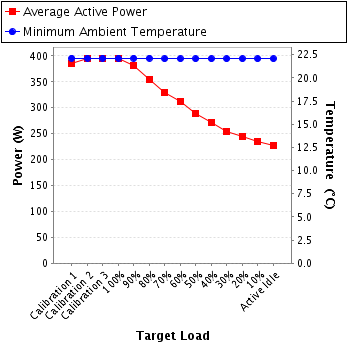

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 386 | 22.1 |
| Calibration 2 | 394 | 22.1 |
| Calibration 3 | 396 | 22.1 |
| 100% | 394 | 22.1 |
| 90% | 381 | 22.1 |
| 80% | 355 | 22.1 |
| 70% | 330 | 22.1 |
| 60% | 312 | 22.1 |
| 50% | 289 | 22.1 |
| 40% | 271 | 22.1 |
| 30% | 255 | 22.1 |
| 20% | 245 | 22.1 |
| 10% | 236 | 22.1 |
| Active Idle | 226 | 22.1 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91GB4571 |
| Connectivity: | GPIB |
| Input Connection: | Default |
| Calibration Institute: | NIST |
| Accredited by: | HP Metrology |
| Calibration Label: | 705420 |
| Date of Calibration: | 26-Nov-2008 |
| PTDaemon Host System: | Controller |
| PTDaemon Host OS: | Windows XP Professional |
| PTDaemon Version: | 1.3.2-e0c92e60 |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | Controller |
| PTDaemon Host OS: | Windows XP Professional |
| Setup Description: | -- |

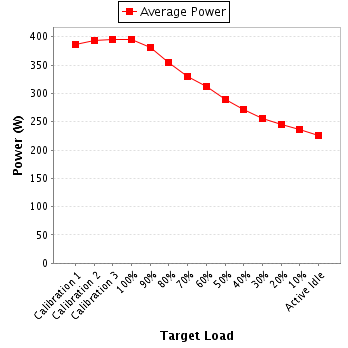

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 204 | 300 | 1.92 | 5 | 0.985 | 386 | -- |
| Calibration 2 | 204 | 300 | 1.96 | 5 | 0.985 | 394 | -- |
| Calibration 3 | 204 | 300 | 1.97 | 5 | 0.985 | 396 | -- |
| 100% | 204 | 300 | 1.96 | 5 | 0.985 | 394 | -- |
| 90% | 204 | 300 | 1.90 | 5 | 0.984 | 381 | -- |
| 80% | 204 | 300 | 1.77 | 5 | 0.980 | 355 | -- |
| 70% | 204 | 300 | 1.66 | 5 | 0.977 | 330 | -- |
| 60% | 204 | 300 | 1.57 | 5 | 0.976 | 312 | -- |
| 50% | 204 | 300 | 1.46 | 5 | 0.974 | 289 | -- |
| 40% | 204 | 300 | 1.37 | 5 | 0.974 | 271 | -- |
| 30% | 204 | 300 | 1.29 | 5 | 0.974 | 255 | -- |
| 20% | 204 | 300 | 1.24 | 5 | 0.974 | 245 | -- |
| 10% | 204 | 300 | 1.19 | 5 | 0.974 | 236 | -- |
| Active Idle | 204 | 300 | 1.14 | 5 | 0.974 | 226 | -- |
