SPECpower_ssj2008
Copyright © 2007-2009 Standard Performance Evaluation Corporation
| Hewlett-Packard Company ProLiant DL380 G5 (2.66GHz, Intel Xeon L5430 processor) | SPECpower_ssj2008 = 734 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett-Packard Company | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett-Packard Company | Test Location: | Houston, TX | Test Date: | Mar 24, 2009 |
| Hardware Availability: | Jun-2008 | Software Availability: | Apr-2008 | Publication: | Apr 8, 2009 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

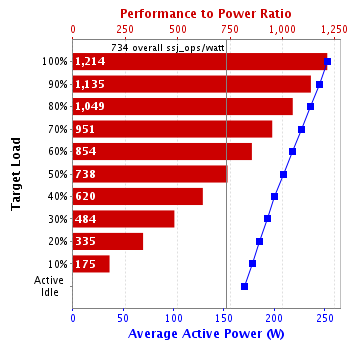

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.3% | 306,620 | 253 | 1,214 |
| 90% | 90.2% | 278,606 | 245 | 1,135 |
| 80% | 80.3% | 247,903 | 236 | 1,049 |
| 70% | 69.8% | 215,426 | 227 | 951 |
| 60% | 60.2% | 185,938 | 218 | 854 |
| 50% | 50.0% | 154,251 | 209 | 738 |
| 40% | 40.3% | 124,358 | 201 | 620 |
| 30% | 30.2% | 93,322 | 193 | 484 |
| 20% | 20.1% | 62,003 | 185 | 335 |
| 10% | 10.1% | 31,061 | 178 | 175 |
| Active Idle | 0 | 170 | 0 | |
| ∑ssj_ops / ∑power = | 734 | |||
| Set Identifier: | sut |
| Set Description: | ProLiant DL380 G5 (2.66GHz, Intel Xeon L5430 processor) |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Software | |
|---|---|
| Power Management: | HP Dynamic Power Regulator enabled |
| Operating System (OS): | Microsoft Windows Server 2003 x64 Enterprise Edition |
| OS Version: | R2 |
| Filesystem: | NTFS |
| JVM Vendor: | BEA Systems,Inc. |
| JVM Version: | BEA JRockit(R) (build P27.5.0-5-97156-1.6.0_03-20080403-1524-windows-x86_64, compiled mode) |
| JVM Command-line Options: | -Xms3600m -Xmx3600m -Xns3100m -XXaggressive -XlargePages -XXthroughputCompaction -XXcallprofiling -XXlazyUnlocking -Xgc:genpar -XXgcthreads:2 -XXtlasize:min=4k,preferred=512k |
| JVM Affinity: | Used "start /AFFINITY" "0x3","0xc","0x30","0xc0" CPU masks. |
| JVM Instances: | 8 |
| JVM Initial Heap (MB): | 3600 |
| JVM Maximum Heap (MB): | 3600 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | -- |
| Management Firmware Version: | -- |
| Workload Version: | SSJ 1.1.3 |
| Director Location: | Controller |
| Other Software: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Hewlett Packard |
| Model: | ProLiant DL360 G3 |
| CPU Description: | Intel Xeon |
| Memory amount (GB): | 2 |
| Software | |
|---|---|
| Operating System (OS): | Windows XP Professional |
| JVM Vendor: | BEA Systems,Inc. |
| JVM Version: | BEA JRockit(R) (build R27.2.0-131-78843-1.6.0-20070320-1457-windows-ia32, compiled mode) |
| CCS Version: | 1.1.3 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91GB45371 |
| Connectivity: | GPIB |
| Input Connection: | Default |
| Calibration Institute: | NIST |
| Accredited by: | HP Metrology |
| Calibration Label: | 705420 |
| Date of Calibration: | 26-Nov-2008 |
| PTDaemon Host System: | Controller |
| PTDaemon Host OS: | Windows XP Professional |
| PTDaemon Version: | 1.3.2-e0c92e60 |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | Controller |
| PTDaemon Host OS: | Windows XP Professional |
| Setup Description: | -- |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 253 | 22.1 |
| 90% | 245 | 22.1 |
| 80% | 236 | 22.1 |
| 70% | 227 | 22.1 |
| 60% | 218 | 22.1 |
| 50% | 209 | 21.9 |
| 40% | 201 | 21.9 |
| 30% | 193 | 21.9 |
| 20% | 185 | 21.9 |
| 10% | 178 | 21.9 |
| Active Idle | 170 | 21.9 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 208V / 60 Hz / 1 phase / 2 wires | 21.9 | 132 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 305,892 | ||
| Calibration 2 | 308,631 | ||
| Calibration 3 | 308,894 | ||
| ssj_ops@calibrated=308,763 | |||
| 100% | 99.3% | 308,763 | 306,620 |
| 90% | 90.2% | 277,887 | 278,606 |
| 80% | 80.3% | 247,010 | 247,903 |
| 70% | 69.8% | 216,134 | 215,426 |
| 60% | 60.2% | 185,258 | 185,938 |
| 50% | 50.0% | 154,381 | 154,251 |
| 40% | 40.3% | 123,505 | 124,358 |
| 30% | 30.2% | 92,629 | 93,322 |
| 20% | 20.1% | 61,753 | 62,003 |
| 10% | 10.1% | 30,876 | 31,061 |
| Active Idle | 0 | 0 | |
