SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2009 Standard Performance Evaluation Corporation
| Hewlett-Packard Company ProLiant DL380 G5 (3.00GHz, Intel Xeon 5160 processor) | SPECpower_ssj2008 = 382 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett-Packard Company | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett-Packard Company | Test Location: | Houston, TX | Test Date: | Mar 24, 2009 |
| Hardware Availability: | May-2006 | Software Availability: | Apr-2008 | Publication: | Apr 8, 2009 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

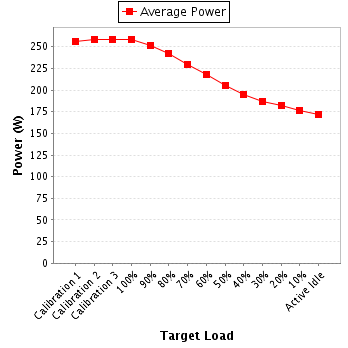

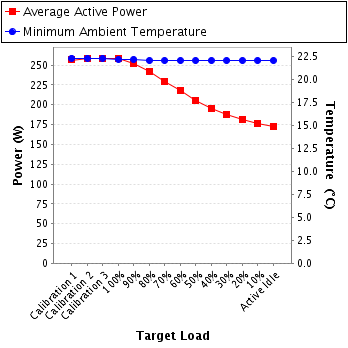

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 256 | 22.3 |
| Calibration 2 | 258 | 22.3 |
| Calibration 3 | 259 | 22.3 |
| 100% | 258 | 22.2 |
| 90% | 252 | 22.2 |
| 80% | 242 | 22.1 |
| 70% | 229 | 22.1 |
| 60% | 218 | 22.1 |
| 50% | 205 | 22.1 |
| 40% | 195 | 22.1 |
| 30% | 187 | 22.1 |
| 20% | 182 | 22.1 |
| 10% | 177 | 22.1 |
| Active Idle | 172 | 22.1 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91GB45371 |
| Connectivity: | GPIB |
| Input Connection: | Default |
| Calibration Institute: | NIST |
| Accredited by: | HP Metrology |
| Calibration Label: | 705420 |
| Date of Calibration: | 26-Nov-2008 |
| PTDaemon Host System: | Controller |
| PTDaemon Host OS: | Windows XP Professional |
| PTDaemon Version: | 1.3.2-e0c92e60 |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | Controller |
| PTDaemon Host OS: | Windows XP Professional |
| Setup Description: | -- |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 205 | 300 | 1.30 | 2 | 0.963 | 256 | -- |
| Calibration 2 | 205 | 300 | 1.31 | 2 | 0.963 | 258 | -- |
| Calibration 3 | 205 | 300 | 1.31 | 2 | 0.963 | 259 | -- |
| 100% | 205 | 300 | 1.31 | 2 | 0.963 | 258 | -- |
| 90% | 206 | 300 | 1.28 | 2 | 0.961 | 252 | -- |
| 80% | 206 | 300 | 1.23 | 2 | 0.957 | 242 | -- |
| 70% | 205 | 300 | 1.17 | 2 | 0.952 | 229 | -- |
| 60% | 205 | 300 | 1.12 | 2 | 0.948 | 218 | -- |
| 50% | 206 | 300 | 1.06 | 2 | 0.943 | 205 | -- |
| 40% | 204 | 300 | 1.02 | 2 | 0.942 | 195 | -- |
| 30% | 203 | 300 | 0.980 | 2 | 0.939 | 187 | -- |
| 20% | 203 | 300 | 0.953 | 2 | 0.937 | 182 | -- |
| 10% | 204 | 300 | 0.930 | 2 | 0.935 | 177 | -- |
| Active Idle | 204 | 300 | 0.906 | 2 | 0.933 | 172 | -- |
