Apple Inc. Xserve2,1 ssj_ops@100% = 141,739
ssj_ops@100% per JVM = 35,435
Test Sponsor: Apple Inc. SPEC License #: 77 Test Method: Single Node
Tested By: Apple Inc. Test Location: Cupertino, CA, USA Test Date: Mar 16, 2009
Hardware Availability: Jan-2008 Software Availability: Jan-2008 Publication: Apr 8, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     143,896
Calibration 2     143,818
Calibration 3     143,969
ssj_ops@calibrated=143,894
100% 98.5% 143,894 141,739
90% 90.0% 129,504 129,541
80% 79.8% 115,115 114,893
70% 69.9% 100,726 100,585
60% 59.7% 86,336 85,907
50% 50.4% 71,947 72,541
40% 39.4% 57,557 56,623
30% 30.1% 43,168 43,382
20% 20.1% 28,779 28,946
10% 9.9% 14,389 14,206
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: Xserve2,1
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Apple Inc.
Model: Xserve2,1
Form Factor: --
CPU Name: Intel(R) Xeon(R) CPU E5472
CPU Characteristics: 2 x Xeon 4-Core, 3.0GHz
CPU Frequency (MHz): 3000
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 32 (4 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip
Tertiary Cache: None
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 8 x 2 GB
Memory Details: DDR2 FB-DIMM, 800 MHz; slots 1-8 populated
Power Supply Quantity and Rating (W): 1 x 750
Power Supply Details: Apple Xserve 750W power supply
Disk Drive: 1 X Seagate ST380815AS N 80GB SATA
Disk Controller: Integrated SAS controller
# and type of Network Interface Cards (NICs) Installed: 2 x integrated 10/100/1000 NIC
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: Yes
Other Hardware: None
Software
Power Management: None
Operating System (OS): Mac OS X Server
OS Version: 10.5.6 (9G55)
Filesystem: Journaled HFS+
JVM Vendor: Sun Microsystems Inc.
JVM Version: Java HotSpot(TM) 64-Bit Server VM on Mac OS X Server version 1.6.0_07-b06-153
JVM Command-line Options: -Djava.awt.headless=true -server -d64 -XX:+UseParallelGC -Xms2048m -Xmx2048m
JVM Affinity: None
JVM Instances: 8
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: --
Management Firmware Version: --
Workload Version: SSJ 1.1.3
Director Location: SUT
Other Software: None
Boot Firmware Settings
--
Management Firmware Settings
--
System Under Test Notes
None
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
0001.001 35,463
0001.002 35,391
0001.003 35,451
0001.004 35,435
ssj_ops@100% 141,739
ssj_ops@100% per JVM 35,435

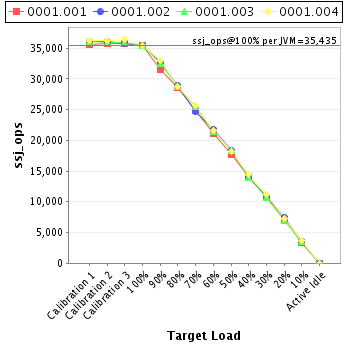

Graph of per-instance results

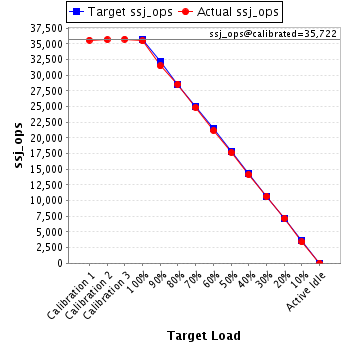

JVM '0001.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     35,611
Calibration 2     35,691
Calibration 3     35,754
ssj_ops@calibrated=35,722
100% 99.3% 35,722 35,463
90% 88.1% 32,150 31,477
80% 79.9% 28,578 28,558
70% 69.5% 25,006 24,843
60% 59.3% 21,433 21,183
50% 49.4% 17,861 17,650
40% 39.5% 14,289 14,127
30% 29.9% 10,717 10,667
20% 20.0% 7,144 7,158
10% 9.5% 3,572 3,396
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

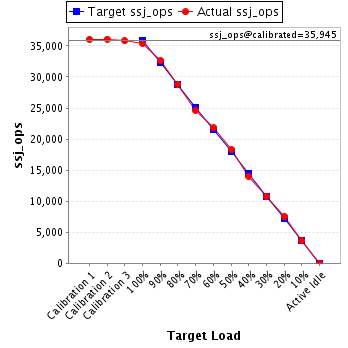

JVM '0001.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     36,051
Calibration 2     36,086
Calibration 3     35,805
ssj_ops@calibrated=35,945
100% 98.5% 35,945 35,391
90% 90.8% 32,351 32,640
80% 80.3% 28,756 28,856
70% 68.5% 25,162 24,621
60% 60.6% 21,567 21,783
50% 51.0% 17,973 18,337
40% 39.0% 14,378 14,004
30% 30.1% 10,784 10,829
20% 20.9% 7,189 7,517
10% 10.1% 3,595 3,617
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM '0001.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     36,045
Calibration 2     35,863
Calibration 3     35,944
ssj_ops@calibrated=35,904
100% 98.7% 35,904 35,451
90% 90.3% 32,313 32,429
80% 80.0% 28,723 28,740
70% 71.1% 25,133 25,515
60% 59.6% 21,542 21,409
50% 51.0% 17,952 18,317
40% 38.9% 14,361 13,977
30% 30.0% 10,771 10,757
20% 19.6% 7,181 7,037
10% 9.9% 3,590 3,542
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM '0001.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     36,189
Calibration 2     36,178
Calibration 3     36,467
ssj_ops@calibrated=36,322
100% 97.6% 36,322 35,435
90% 90.8% 32,690 32,994
80% 79.1% 29,058 28,739
70% 70.5% 25,426 25,606
60% 59.3% 21,793 21,532
50% 50.2% 18,161 18,237
40% 40.0% 14,529 14,515
30% 30.6% 10,897 11,129
20% 19.9% 7,264 7,233
10% 10.1% 3,632 3,652
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
