SPECpower_ssj2008
Copyright © 2007-2009 Standard Performance Evaluation Corporation
| Apple Inc. Xserve3,1 | SPECpower_ssj2008 = 464 overall ssj_ops/watt | ||||
| Test Sponsor: | Apple Inc. | SPEC License #: | 77 | Test Method: | Single Node |
| Tested By: | Apple Inc. | Test Location: | Cupertino, CA, USA | Test Date: | Mar 16, 2009 |
| Hardware Availability: | Apr-2009 | Software Availability: | Apr-2009 | Publication: | Apr 8, 2009 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

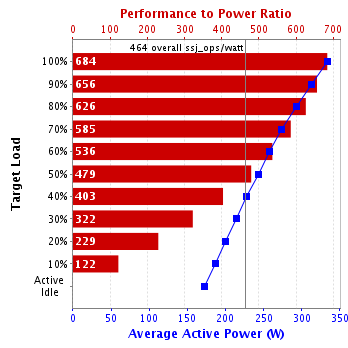

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.5% | 227,974 | 334 | 684 |
| 90% | 89.7% | 205,597 | 313 | 656 |
| 80% | 80.0% | 183,328 | 293 | 626 |
| 70% | 69.8% | 160,055 | 273 | 585 |
| 60% | 60.3% | 138,209 | 258 | 536 |
| 50% | 50.9% | 116,692 | 244 | 479 |
| 40% | 40.2% | 92,038 | 228 | 403 |
| 30% | 30.1% | 68,994 | 214 | 322 |
| 20% | 20.1% | 45,979 | 200 | 229 |
| 10% | 9.9% | 22,776 | 187 | 122 |
| Active Idle | 0 | 173 | 0 | |
| ∑ssj_ops / ∑power = | 464 | |||
| Set Identifier: | sut |
| Set Description: | Xserve3,1 |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Apple Inc. |
| Model: | Xserve3,1 |
| Form Factor: | -- |
| CPU Name: | Intel(R) Xeon(R) CPU X5570 |
| CPU Characteristics: | Quad-Core, 2.93GHz, L3 8MB I+D on chip per chip |
| CPU Frequency (MHz): | 2930 |
| CPU(s) Enabled: | 8 cores, 2 chips, 4 cores/chip |
| Hardware Threads: | 16 (2 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 18 |
| # and size of DIMM: | 6 x 2 GB, 6 x 1 GB |
| Memory Details: | DDR3 ECC FB-DIMM, 1066 MHZ; 1GB in A1, A2, A3, B1, B2, B3; 2GB in A4, A5, A6, B4, B5, B6 |
| Power Supply Quantity and Rating (W): | 1 x 750 |
| Power Supply Details: | Apple Xserve 750W power supply |
| Disk Drive: | 1 X Western Digital WDC WD1602ABJS-43P5A0 160GB SATA drive |
| Disk Controller: | Integrated SAS controller |
| # and type of Network Interface Cards (NICs) Installed: | 2 x integrated 10/100/1000 NIC |
| NICs Enabled in Firmware / OS / Connected: | 2/1/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | Yes |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | None |
| Operating System (OS): | Mac OS X Server |
| OS Version: | 10.5.6 (9G3550) |
| Filesystem: | Journaled HFS+ |
| JVM Vendor: | Sun Microsystems Inc. |
| JVM Version: | Java HotSpot(TM) 64-Bit Server VM on Mac OS X Server version 1.6.0_07-b06-153 |
| JVM Command-line Options: | -Djava.awt.headless=true -server -d64 -XX:+UseParallelGC -Xms2048m -Xmx2048m |
| JVM Affinity: | None |
| JVM Instances: | 8 |
| JVM Initial Heap (MB): | 2048 |
| JVM Maximum Heap (MB): | 2048 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | -- |
| Management Firmware Version: | -- |
| Workload Version: | SSJ 1.1.3 |
| Director Location: | SUT |
| Other Software: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Dell |
| Model: | Inspiron 9400 |
| CPU Description: | Intel Core Duo T2600 |
| Memory amount (GB): | 2 |
| Software | |
|---|---|
| Operating System (OS): | Microsoft Windows XP Professional SP3 |
| JVM Vendor: | Sun |
| JVM Version: | Java(TM) SE Runtime Environment (build 1.6.0_12-b04) |
| CCS Version: | 1.1.3 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT210 |
| Serial Number: | 91H730508 |
| Connectivity: | USB2 |
| Input Connection: | Default |
| Calibration Institute: | NIST |
| Accredited by: | Yokogawa Corp. of America |
| Calibration Label: | SM760401-01E |
| Date of Calibration: | 15-Jul-2008 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.2-e0c92e60 |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Temperature@lert |
| Model: | Temperature@lert |
| Driver Version: | 2.2.4.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | -- |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 334 | 22.2 |
| 90% | 313 | 22.2 |
| 80% | 293 | 22.2 |
| 70% | 273 | 22.2 |
| 60% | 258 | 22.2 |
| 50% | 244 | 22.2 |
| 40% | 228 | 21.9 |
| 30% | 214 | 21.9 |
| 20% | 200 | 21.9 |
| 10% | 187 | 21.9 |
| Active Idle | 173 | 21.9 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 120V / 60 Hz / 1 phase / 2 wires | 21.9 | 77 |

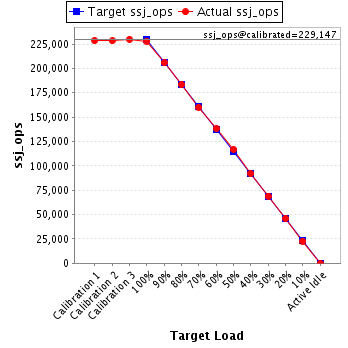

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 228,520 | ||
| Calibration 2 | 228,302 | ||
| Calibration 3 | 229,992 | ||
| ssj_ops@calibrated=229,147 | |||
| 100% | 99.5% | 229,147 | 227,974 |
| 90% | 89.7% | 206,232 | 205,597 |
| 80% | 80.0% | 183,317 | 183,328 |
| 70% | 69.8% | 160,403 | 160,055 |
| 60% | 60.3% | 137,488 | 138,209 |
| 50% | 50.9% | 114,573 | 116,692 |
| 40% | 40.2% | 91,659 | 92,038 |
| 30% | 30.1% | 68,744 | 68,994 |
| 20% | 20.1% | 45,829 | 45,979 |
| 10% | 9.9% | 22,915 | 22,776 |
| Active Idle | 0 | 0 | |
