SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2009 Standard Performance Evaluation Corporation
| Fujitsu Siemens Computers PRIMERGY RX300 S4 (Intel Xeon L5430) | SPECpower_ssj2008 = 854 overall ssj_ops/watt | ||||
| Test Sponsor: | Fujitsu Siemens Computers | SPEC License #: | 22 | Test Method: | Single Node |
| Tested By: | Fujitsu Siemens Computers | Test Location: | Paderborn, NRW, Germany | Test Date: | 12.02.2009 |
| Hardware Availability: | Sep-2008 | Software Availability: | May-2009 | Publication: | Mar 11, 2009 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

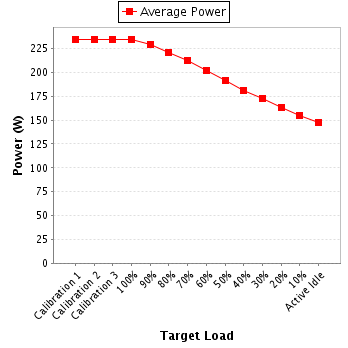

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 235 | 23.7 |
| Calibration 2 | 235 | 23.7 |
| Calibration 3 | 235 | 23.7 |
| 100% | 235 | 23.7 |
| 90% | 229 | 23.7 |
| 80% | 221 | 23.7 |
| 70% | 212 | 23.7 |
| 60% | 202 | 23.7 |
| 50% | 192 | 23.7 |
| 40% | 181 | 23.7 |
| 30% | 172 | 23.7 |
| 20% | 164 | 23.7 |
| 10% | 155 | 23.6 |
| Active Idle | 147 | 23.6 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | ZES Zimmer Electronic Systems GmbH |
| Model: | LMG95 |
| Serial Number: | 11780806 |
| Connectivity: | RS-232 |
| Input Connection: | Default (20A) |
| Calibration Institute: | PTB (Physikalisch Technische Bundesanstalt) |
| Accredited by: | ZES |
| Calibration Label: | 11780806.1f |
| Date of Calibration: | 25-Jun-2008 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.2-e0c92e60 |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.0.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | -- |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 230 | 250V | 1.13 | 1.20A | 0.904 | 235 | -- |
| Calibration 2 | 230 | 250V | 1.13 | 1.20A | 0.904 | 235 | -- |
| Calibration 3 | 231 | 250V | 1.13 | 1.20A | 0.903 | 235 | -- |
| 100% | 232 | 250V | 1.12 | 1.20A | 0.903 | 235 | -- |
| 90% | 231 | 250V | 1.10 | 1.20A | 0.901 | 229 | -- |
| 80% | 231 | 250V | 1.06 | 1.20A | 0.897 | 221 | -- |
| 70% | 231 | 250V | 1.03 | 1.20A | 0.893 | 212 | -- |
| 60% | 232 | 250V | 0.980 | 1.20A | 0.888 | 202 | -- |
| 50% | 232 | 250V | 0.935 | 1.20A | 0.882 | 192 | -- |
| 40% | 233 | 250V | 0.890 | 1.20A | 0.877 | 181 | -- |
| 30% | 233 | 250V | 0.850 | 1.20A | 0.871 | 172 | -- |
| 20% | 229 | 250V | 0.822 | 1.20A | 0.869 | 164 | -- |
| 10% | 229 | 250V | 0.785 | 1.20A | 0.863 | 155 | -- |
| Active Idle | 230 | 250V | 0.749 | 1.20A | 0.857 | 147 | -- |
