SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2009 Standard Performance Evaluation Corporation
| Fujitsu PRIMERGY RX200 S4 (Intel Xeon L5430) | SPECpower_ssj2008 = 851 overall ssj_ops/watt | ||||
| Test Sponsor: | Fujitsu | SPEC License #: | 19 | Test Method: | Single Node |
| Tested By: | Fujitsu Siemens Computers | Test Location: | Paderborn, NRW, Germany | Test Date: | 16.02.2009 |
| Hardware Availability: | Sep-2008 | Software Availability: | May-2009 | Publication: | Mar 11, 2009 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

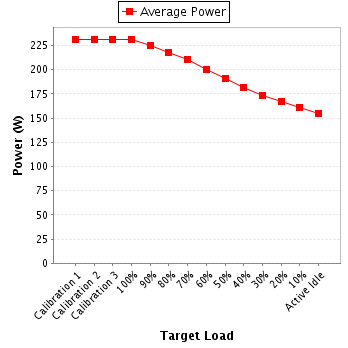

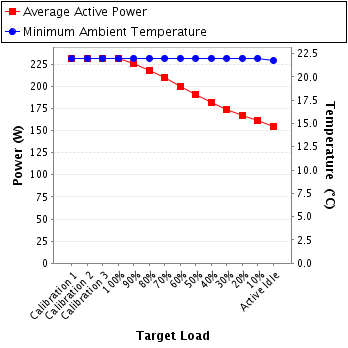

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 232 | 22.0 |
| Calibration 2 | 231 | 22.0 |
| Calibration 3 | 231 | 22.0 |
| 100% | 231 | 22.0 |
| 90% | 225 | 22.0 |
| 80% | 218 | 22.0 |
| 70% | 210 | 22.0 |
| 60% | 200 | 22.0 |
| 50% | 191 | 22.0 |
| 40% | 181 | 22.0 |
| 30% | 174 | 22.0 |
| 20% | 167 | 22.0 |
| 10% | 161 | 22.0 |
| Active Idle | 154 | 21.8 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | ZES Zimmer Electronic Systems GmbH |
| Model: | LMG95 |
| Serial Number: | 11780806 |
| Connectivity: | RS-232 |
| Input Connection: | Default (20A) |
| Calibration Institute: | PTB (Physikalisch Technische Bundesanstalt) |
| Accredited by: | ZES |
| Calibration Label: | 11780806.1f |
| Date of Calibration: | 25-Jun-2008 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.2-e0c92e60 |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.0.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | -- |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 229 | 250V | 1.45 | 2.50A | 0.697 | 232 | -- |
| Calibration 2 | 229 | 250V | 1.45 | 2.50A | 0.695 | 231 | -- |
| Calibration 3 | 229 | 250V | 1.45 | 2.50A | 0.695 | 231 | -- |
| 100% | 229 | 250V | 1.45 | 2.50A | 0.695 | 231 | -- |
| 90% | 230 | 250V | 1.42 | 2.50A | 0.689 | 225 | -- |
| 80% | 230 | 250V | 1.39 | 2.50A | 0.683 | 218 | -- |
| 70% | 230 | 250V | 1.35 | 2.50A | 0.677 | 210 | -- |
| 60% | 230 | 250V | 1.30 | 2.50A | 0.667 | 200 | -- |
| 50% | 230 | 250V | 1.25 | 2.50A | 0.661 | 191 | -- |
| 40% | 230 | 250V | 1.21 | 2.50A | 0.653 | 181 | -- |
| 30% | 231 | 250V | 1.16 | 2.50A | 0.649 | 174 | -- |
| 20% | 231 | 250V | 1.13 | 2.50A | 0.643 | 167 | -- |
| 10% | 230 | 250V | 1.10 | 2.50A | 0.641 | 161 | -- |
| Active Idle | 230 | 250V | 1.06 | 2.50A | 0.634 | 154 | -- |
