SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2009 Standard Performance Evaluation Corporation
| Fujitsu PRIMERGY TX150 S6 (Intel Xeon L3360) | SPECpower_ssj2008 = 1,271 overall ssj_ops/watt | ||||
| Test Sponsor: | Fujitsu | SPEC License #: | 19 | Test Method: | Single Node |
| Tested By: | Fujitsu Siemens Computers | Test Location: | Paderborn, NRW, Germany | Test Date: | 13.02.2009 |
| Hardware Availability: | Apr-2009 | Software Availability: | May-2009 | Publication: | Mar 11, 2009 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

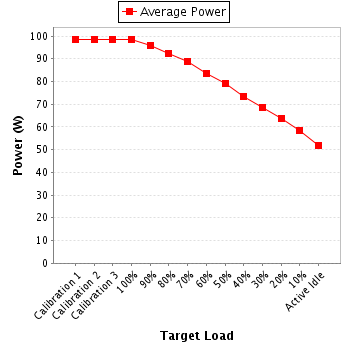

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 98.6 | 22.6 |
| Calibration 2 | 98.6 | 22.6 |
| Calibration 3 | 98.5 | 22.5 |
| 100% | 98.4 | 22.5 |
| 90% | 96.0 | 22.5 |
| 80% | 92.5 | 22.5 |
| 70% | 88.7 | 22.5 |
| 60% | 83.7 | 22.4 |
| 50% | 79.0 | 22.4 |
| 40% | 73.2 | 22.4 |
| 30% | 68.7 | 22.4 |
| 20% | 63.7 | 22.4 |
| 10% | 58.3 | 22.4 |
| Active Idle | 51.7 | 22.4 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric Corporation |
| Model: | WT210 |
| Serial Number: | 91HA48097 |
| Connectivity: | RS-232 |
| Input Connection: | Default (20A) |
| Calibration Institute: | PTB (Physikalisch Technische Bundesanstalt) |
| Accredited by: | Deutscher Kalibrierdienst |
| Calibration Label: | DKD-K-21901 |
| Date of Calibration: | 04-Dec-2008 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.2-e0c92e60 |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.0.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | -- |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 232 | 300V | 0.475 | 0.50A | 0.896 | 98.6 | -- |
| Calibration 2 | 232 | 300V | 0.474 | 0.50A | 0.896 | 98.6 | -- |
| Calibration 3 | 232 | 300V | 0.474 | 0.50A | 0.896 | 98.5 | -- |
| 100% | 232 | 300V | 0.474 | 0.50A | 0.896 | 98.4 | -- |
| 90% | 232 | 300V | 0.467 | 0.50A | 0.887 | 96.0 | -- |
| 80% | 232 | 300V | 0.456 | 0.50A | 0.873 | 92.5 | -- |
| 70% | 232 | 300V | 0.447 | 0.50A | 0.855 | 88.7 | -- |
| 60% | 232 | 300V | 0.431 | 0.50A | 0.835 | 83.7 | -- |
| 50% | 233 | 300V | 0.415 | 0.50A | 0.819 | 79.0 | -- |
| 40% | 233 | 300V | 0.393 | 0.50A | 0.801 | 73.2 | -- |
| 30% | 233 | 300V | 0.378 | 0.50A | 0.783 | 68.7 | -- |
| 20% | 232 | 300V | 0.362 | 0.50A | 0.759 | 63.7 | -- |
| 10% | 232 | 300V | 0.341 | 0.50A | 0.737 | 58.3 | -- |
| Active Idle | 232 | 300V | 0.299 | 0.50A | 0.743 | 51.7 | -- |
