SPECpower_ssj2008
Copyright © 2007-2009 Standard Performance Evaluation Corporation
| Fujitsu Siemens Computers PRIMERGY TX150 S6 (Intel Xeon L3360) | SPECpower_ssj2008 = 1,273 overall ssj_ops/watt | ||||
| Test Sponsor: | Fujitsu Siemens Computers | SPEC License #: | 22 | Test Method: | Single Node |
| Tested By: | Fujitsu Siemens Computers | Test Location: | Paderborn, NRW, Germany | Test Date: | 14.02.2009 |
| Hardware Availability: | Apr-2009 | Software Availability: | May-2009 | Publication: | Mar 11, 2009 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

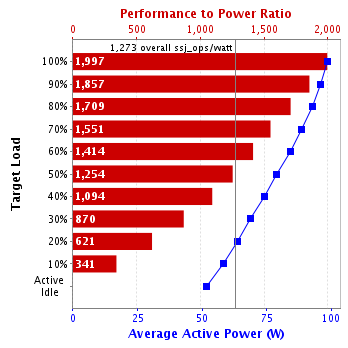

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.5% | 196,515 | 98.4 | 1,997 |
| 90% | 90.0% | 177,834 | 95.8 | 1,857 |
| 80% | 80.1% | 158,214 | 92.6 | 1,709 |
| 70% | 69.5% | 137,311 | 88.5 | 1,551 |
| 60% | 60.3% | 119,008 | 84.2 | 1,414 |
| 50% | 50.0% | 98,839 | 78.8 | 1,254 |
| 40% | 41.0% | 80,887 | 74.0 | 1,094 |
| 30% | 30.3% | 59,747 | 68.7 | 870 |
| 20% | 20.1% | 39,624 | 63.8 | 621 |
| 10% | 10.1% | 19,900 | 58.3 | 341 |
| Active Idle | 0 | 51.8 | 0 | |
| ∑ssj_ops / ∑power = | 1,273 | |||
| Set Identifier: | sut |
| Set Description: | PRIMERGY TX150 S6 (Intel Xeon L3360) |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Fujitsu Siemens Computers |
| Model: | PRIMERGY TX150 S6 (Intel Xeon L3360) |
| Form Factor: | -- |
| CPU Name: | Intel Xeon L3360 |
| CPU Characteristics: | 2.83GHz, 2x6MB L2 cache, 1333MHz system bus |
| CPU Frequency (MHz): | 2833 |
| CPU(s) Enabled: | 4 cores, 1 chip, 4 cores/chip |
| Hardware Threads: | 4 (1 / core) |
| CPU(s) Orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| Tertiary Cache: | None |
| Other Cache: | None |
| Memory Amount (GB): | 4 |
| # and size of DIMM: | 2 x 2048 MB |
| Memory Details: | 2GB 2Rx8 PC2-6400E ECC CL6; slots 1A, 1B populated |
| Power Supply Quantity and Rating (W): | 1 x 350 |
| Power Supply Details: | HIPRO HP-U3528F1 |
| Disk Drive: | 1 x Seagate (3.5", SATA, 250GB, 7.2krpm) |
| Disk Controller: | Integrated SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 1 x Broadcom NetXtreme Gigabit Ethernet (onboard) |
| NICs Enabled in Firmware / OS / Connected: | 1/1/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Enabled ("Balanced" power scheme) |
| Operating System (OS): | Microsoft Windows Server 2008 Enterprise x64 Edition + SP2 |
| OS Version: | Version 6.0.6002 Service Pack 2, v.641 Build 6002 |
| Filesystem: | NTFS |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Oracle JRockit(R) 6 P28.0.0 (build P28.0.0-8-109238-1.6.0_05-20090130-1408-windows-x86_64) |
| JVM Command-line Options: | -Xms1625m -Xmx1625m -Xns1400m -XXaggressive -Xlargepages -Xgc:genpar -XXcallprofiling -XXgcthreads=2 -XXtlasize:min=4k,preferred=1024k -XXthroughputcompaction -XX:+UseStringCache |
| JVM Affinity: | start /affinity [0x3,0xC] |
| JVM Instances: | 4 |
| JVM Initial Heap (MB): | 1625 |
| JVM Maximum Heap (MB): | 1625 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | -- |
| Management Firmware Version: | -- |
| Workload Version: | SSJ 1.1.3 |
| Director Location: | Controller |
| Other Software: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Fujitsu Siemens Computers |
| Model: | PRIMERGY RX100 S3 |
| CPU Description: | Pentium D 940 |
| Memory amount (GB): | 2 |
| Software | |
|---|---|
| Operating System (OS): | Windows Server 2003 Enterprise Edition + SP1 |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Oracle JRockit(R) R27.6.0 (build R27.6.0-50_o-100423-1.6.0_05-20080626-2105-windows-ia32) |
| CCS Version: | 1.1.3 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric Corporation |
| Model: | WT210 |
| Serial Number: | 91HA48097 |
| Connectivity: | RS-232 |
| Input Connection: | Default (20A) |
| Calibration Institute: | PTB (Physikalisch Technische Bundesanstalt) |
| Accredited by: | Deutscher Kalibrierdienst |
| Calibration Label: | DKD-K-21901 |
| Date of Calibration: | 04-Dec-2008 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.2-e0c92e60 |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.0.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | -- |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 98.4 | 21.8 |
| 90% | 95.8 | 21.8 |
| 80% | 92.6 | 21.8 |
| 70% | 88.5 | 21.8 |
| 60% | 84.2 | 21.8 |
| 50% | 78.8 | 21.8 |
| 40% | 74.0 | 21.8 |
| 30% | 68.7 | 21.8 |
| 20% | 63.8 | 21.8 |
| 10% | 58.3 | 21.8 |
| Active Idle | 51.8 | 21.8 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 230V / 50 Hz / 1 phase / 2 wires | 21.8 | 117 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 199,355 | ||
| Calibration 2 | 197,692 | ||
| Calibration 3 | 197,302 | ||
| ssj_ops@calibrated=197,497 | |||
| 100% | 99.5% | 197,497 | 196,515 |
| 90% | 90.0% | 177,747 | 177,834 |
| 80% | 80.1% | 157,998 | 158,214 |
| 70% | 69.5% | 138,248 | 137,311 |
| 60% | 60.3% | 118,498 | 119,008 |
| 50% | 50.0% | 98,749 | 98,839 |
| 40% | 41.0% | 78,999 | 80,887 |
| 30% | 30.3% | 59,249 | 59,747 |
| 20% | 20.1% | 39,499 | 39,624 |
| 10% | 10.1% | 19,750 | 19,900 |
| Active Idle | 0 | 0 | |
