Hewlett-Packard Company ProLiant DL785 G5 (2.30GHz, AMD Opteron 8376 HE) ssj_ops@100% = 1,093,578
ssj_ops@100% per JVM = 136,697
Test Sponsor: Hewlett-Packard Company SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett-Packard Company Test Location: Cupertino, CA, USA Test Date: Feb 6, 2009
Hardware Availability: Jan-2009 Software Availability: May-2009 Publication: Feb 25, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,109,699
Calibration 2     1,101,459
Calibration 3     1,104,865
ssj_ops@calibrated=1,103,162
100% 99.1% 1,103,162 1,093,578
90% 90.1% 992,846 994,044
80% 80.0% 882,530 882,297
70% 70.0% 772,214 771,909
60% 60.1% 661,897 663,054
50% 50.4% 551,581 555,606
40% 40.3% 441,265 444,226
30% 29.9% 330,949 329,372
20% 19.9% 220,632 219,469
10% 9.9% 110,316 109,134
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: ProLiant DL785 G5 (2.30GHz, AMD Opteron 8376 HE)
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Hewlett-Packard Company
Model: ProLiant DL785 G5 (2.30GHz, AMD Opteron 8376 HE)
Form Factor: --
CPU Name: Quad-Core AMD Opteron(r) Processor 8376 HE
CPU Characteristics: Quad-Core, 2.3GHz, 6MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 32 cores, 8 chips, 4 cores/chip
Hardware Threads: 32 (1 / core)
CPU(s) Orderable: 4,8 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per chip
Tertiary Cache: 6 MB I+D off chip per chip
Other Cache: None
Memory Amount (GB): 32
# and size of DIMM: 16 x 2048 MB
Memory Details: 4GB Reg PC2-5300 2x2GB LP Kit 483401-B21; slots 1 and 2 populated on each board
Power Supply Quantity and Rating (W): 3 x 1200
Power Supply Details: HP P/N 437572-B21
Disk Drive: 1 x 73GB 10K RPM SAS
Disk Controller: Integrated P400i SmartArray controller
# and type of Network Interface Cards (NICs) Installed: 2 x NC373i NIC
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: None
Optical Drives: Yes
Other Hardware: none
Software
Power Management: HP Dynamic Power Regulator enabled
Operating System (OS): Red Hat Enterprise Linux 5.3
OS Version: 2.6.18-128.el5 (64-bit)
Filesystem: ext3
JVM Vendor: Oracle Corporation
JVM Version: Oracle JRockit(R) 6 P28.0.0 (build P28.0.0-8-109238-1.6.0_05-20090130-1405-linux-x86_64, compiled mode)
JVM Command-line Options: -Xms3600m -Xmx3600m -Xns3100m -XXaggressive -XlargePages -XXthroughputCompaction -XXcallprofiling -Xgc:genpar -XXgcthreads:4 -XXtlasize:min=12k,preferred=1024k
JVM Affinity: numactl --membind=N --cpunodebind=N (N from 0 to 7)
JVM Instances: 16
JVM Initial Heap (MB): 3600
JVM Maximum Heap (MB): 3600
JVM Address Bits: 64
Boot Firmware Version: --
Management Firmware Version: --
Workload Version: SSJ 1.1.3
Director Location: Controller
Other Software: None
Boot Firmware Settings
--
Management Firmware Settings
--
System Under Test Notes
Notes
The power connection between the power analyzer and the SUT power supplies was a passive power strip and 3 power cords
JVM Instance Summary
JVM Instance ssj_ops@100%
0001.001 131,855
0001.002 140,348
0001.003 133,062
0001.004 143,733
0001.005 139,560
0001.006 142,109
0001.007 130,367
0001.008 132,544
ssj_ops@100% 1,093,578
ssj_ops@100% per JVM 136,697
Graph of per-instance results

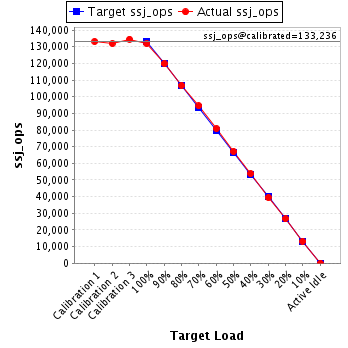

JVM '0001.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     133,163
Calibration 2     131,930
Calibration 3     134,541
ssj_ops@calibrated=133,236
100% 99.0% 133,236 131,855
90% 89.9% 119,912 119,758
80% 80.1% 106,588 106,760
70% 70.9% 93,265 94,493
60% 60.7% 79,941 80,855
50% 50.4% 66,618 67,206
40% 40.4% 53,294 53,804
30% 29.6% 39,971 39,424
20% 20.0% 26,647 26,641
10% 9.9% 13,324 13,234
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM '0001.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     141,865
Calibration 2     141,451
Calibration 3     141,238
ssj_ops@calibrated=141,344
100% 99.3% 141,344 140,348
90% 90.6% 127,210 128,016
80% 80.3% 113,075 113,433
70% 70.2% 98,941 99,266
60% 60.3% 84,807 85,299
50% 50.3% 70,672 71,091
40% 40.3% 56,538 56,949
30% 30.0% 42,403 42,449
20% 19.9% 28,269 28,154
10% 9.7% 14,134 13,741
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM '0001.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     134,621
Calibration 2     133,882
Calibration 3     134,421
ssj_ops@calibrated=134,152
100% 99.2% 134,152 133,062
90% 89.0% 120,736 119,421
80% 79.9% 107,321 107,241
70% 70.5% 93,906 94,563
60% 60.5% 80,491 81,110
50% 50.0% 67,076 67,071
40% 40.0% 53,661 53,696
30% 29.7% 40,245 39,899
20% 19.8% 26,830 26,567
10% 9.7% 13,415 13,049
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM '0001.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     145,405
Calibration 2     144,767
Calibration 3     144,770
ssj_ops@calibrated=144,769
100% 99.3% 144,769 143,733
90% 90.3% 130,292 130,669
80% 78.9% 115,815 114,277
70% 69.6% 101,338 100,723
60% 60.6% 86,861 87,717
50% 50.4% 72,384 72,928
40% 40.2% 57,907 58,175
30% 29.6% 43,431 42,806
20% 19.7% 28,954 28,564
10% 10.2% 14,477 14,782
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM '0001.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     141,053
Calibration 2     140,434
Calibration 3     140,526
ssj_ops@calibrated=140,480
100% 99.3% 140,480 139,560
90% 90.4% 126,432 126,997
80% 80.1% 112,384 112,556
70% 69.9% 98,336 98,231
60% 59.3% 84,288 83,334
50% 50.5% 70,240 70,940
40% 40.3% 56,192 56,620
30% 29.8% 42,144 41,802
20% 19.7% 28,096 27,639
10% 10.1% 14,048 14,193
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM '0001.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     144,496
Calibration 2     143,801
Calibration 3     143,546
ssj_ops@calibrated=143,674
100% 98.9% 143,674 142,109
90% 90.1% 129,306 129,481
80% 79.6% 114,939 114,414
70% 69.5% 100,572 99,900
60% 59.9% 86,204 86,017
50% 50.3% 71,837 72,314
40% 40.4% 57,469 57,981
30% 29.9% 43,102 42,953
20% 20.1% 28,735 28,863
10% 9.8% 14,367 14,103
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM '0001.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     134,184
Calibration 2     131,452
Calibration 3     131,918
ssj_ops@calibrated=131,685
100% 99.0% 131,685 130,367
90% 90.8% 118,516 119,585
80% 80.6% 105,348 106,120
70% 69.2% 92,179 91,189
60% 59.6% 79,011 78,508
50% 50.7% 65,842 66,740
40% 40.2% 52,674 52,942
30% 29.7% 39,505 39,161
20% 20.1% 26,337 26,428
10% 9.8% 13,168 12,849
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM '0001.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     134,912
Calibration 2     133,742
Calibration 3     133,904
ssj_ops@calibrated=133,823
100% 99.0% 133,823 132,544
90% 89.8% 120,441 120,118
80% 80.3% 107,059 107,496
70% 69.9% 93,676 93,544
60% 59.9% 80,294 80,214
50% 50.3% 66,912 67,316
40% 40.4% 53,529 54,058
30% 30.5% 40,147 40,879
20% 19.9% 26,765 26,611
10% 9.9% 13,382 13,183
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
