Hewlett-Packard Company ProLiant DL365 G5 (2.70GHz, AMD Opteron processor 2384) SPECpower_ssj2008 = 817 overall ssj_ops/watt
Test Sponsor: Hewlett-Packard Company SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett-Packard Company Test Location: Houston, TX Test Date: Dec 19, 2008
Hardware Availability: Nov-2008 Software Availability: Apr-2008 Publication: Jan 14, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 98.9% 337,543 268 1,258
90% 89.7% 306,117 256 1,194
80% 80.2% 273,775 245 1,119
70% 70.4% 240,228 233 1,029
60% 60.2% 205,384 222 925
50% 49.9% 170,423 211 809
40% 39.9% 136,135 200 679
30% 29.9% 102,171 190 538
20% 20.2% 68,940 173 398
10% 10.2% 34,686 152 229
Active Idle 0 144 0
∑ssj_ops / ∑power = 817

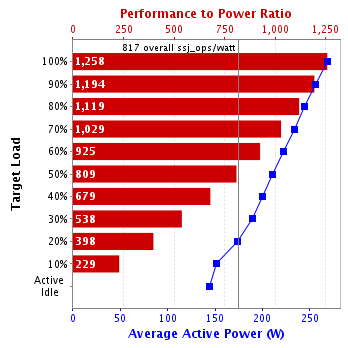

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: ProLiant DL365 G5 (2.70GHz, AMD Opteron processor 2384)
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Hewlett-Packard Company
Model: ProLiant DL365 G5 (2.70GHz, AMD Opteron processor 2384)
Form Factor: --
CPU Name: AMD Opteron 2384
CPU Characteristics: 2.7GHz, 6 MB L3 shared
CPU Frequency (MHz): 2700
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 8 (1 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 6 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 4 x 2048 MB
Memory Details: PC2-6400P CL5 LP; slots 1,2,5,6 populated
Power Supply Quantity and Rating (W): 1 x 700
Power Supply Details: HP Part# 393527-001
Disk Drive: 1 x 120GB HP, 1.5G, 5.4 K RPM 2.5" SATA
Disk Controller: 1 x HP Smart Array P400i
# and type of Network Interface Cards (NICs) Installed: 2 x NC373i NIC
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: Yes
Other Hardware: None
Software
Power Management: HP Dynamic Power Regulator enabled
Operating System (OS): Microsoft Windows Server 2003 x64 Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: BEA Systems,Inc.
JVM Version: BEA JRockit(R) (build P27.5.0-5-97156-1.6.0_03-20080403-1524-windows-x86_64, compiled mode)
JVM Command-line Options: -Xms3500m -Xmx3500m -Xns3100m -XXaggressive -XlargePages -XXthroughputCompaction -XXcallprofiling -XXlazyUnlocking -Xgc:genpar -XXgcthreads:4 -XXtlasize:min=12k,preferred=1024k
JVM Affinity: Used "start /affinity" with "0xf" and "0xf0" CPU masks.
JVM Instances: 4
JVM Initial Heap (MB): 3500
JVM Maximum Heap (MB): 3500
JVM Address Bits: 64
Boot Firmware Version: --
Management Firmware Version: --
Workload Version: SSJ 1.1.3
Director Location: Controller
Other Software: None
Boot Firmware Settings
--
Management Firmware Settings
--
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Hewlett Packard
Model: ProLiant DL360 G5
CPU Description: Intel Xeon E5440
Memory amount (GB): 2
Software
Operating System (OS): Windows 2003 R2 Enterprise Edition
JVM Vendor: Oracle Corporation
JVM Version: BEA JRockit(R) (build R27.6.0-50_o-100423-1.6.0_05-20080626-2105-windows-ia32, compiled mode)
CCS Version: 1.1.3
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91GC21887
Connectivity: GPIB
Input Connection: Default
Calibration Institute: NIST
Accredited by: Yokogawa Electric International Pte. Ltd.
Calibration Label: 705417
Date of Calibration: 26-Nov-2008
PTDaemon Host System: Controller
PTDaemon Host OS: Controller
PTDaemon Version: 1.3.2-e0c92e60
Setup Description: --
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 4.50.0.0
Connectivity: USB
PTDaemon Host System: Controller
PTDaemon Host OS: Controller
Setup Description: --
Notes
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 268 20.1
90% 256 20.1
80% 245 20.1
70% 233 20.1
60% 222 20.1
50% 211 20.1
40% 200 20.1
30% 190 20.1
20% 173 20.1
10% 152 20.1
Active Idle 144 20.1
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 20.1 132
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     340,289
Calibration 2     341,462
Calibration 3     340,927
ssj_ops@calibrated=341,194
100% 98.9% 341,194 337,543
90% 89.7% 307,075 306,117
80% 80.2% 272,955 273,775
70% 70.4% 238,836 240,228
60% 60.2% 204,717 205,384
50% 49.9% 170,597 170,423
40% 39.9% 136,478 136,135
30% 29.9% 102,358 102,171
20% 20.2% 68,239 68,940
10% 10.2% 34,119 34,686
Active Idle   0 0

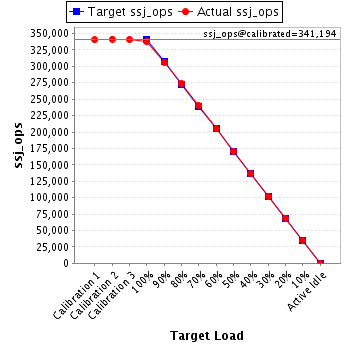

Graph of results
See the Host Performance Report for additional details.
