SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2009 Standard Performance Evaluation Corporation
| ASUSTeK Computer Inc. ASUS RS100-E5 (Intel Xeon X3360 Processor, 2.83 GHz) | SPECpower_ssj2008 = 905 overall ssj_ops/watt | ||||
| Test Sponsor: | ASUSTeK Company Inc. | SPEC License #: | 9016 | Test Method: | Single Node |
| Tested By: | ASUSTeK Company Inc. | Test Location: | Taipei, Taiwan R.O.C. | Test Date: | Dec 8, 2008 |
| Hardware Availability: | Apr-2008 | Software Availability: | Mar-2008 | Publication: | Jan 2, 2009 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

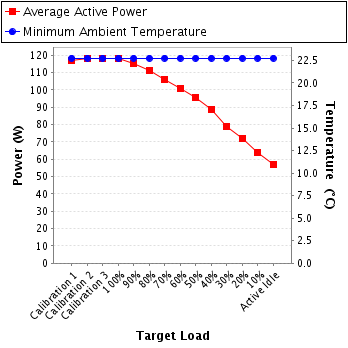

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 117 | 22.8 |
| Calibration 2 | 118 | 22.8 |
| Calibration 3 | 118 | 22.8 |
| 100% | 118 | 22.8 |
| 90% | 115 | 22.8 |
| 80% | 111 | 22.8 |
| 70% | 106 | 22.8 |
| 60% | 101 | 22.8 |
| 50% | 95.3 | 22.8 |
| 40% | 88.6 | 22.8 |
| 30% | 79.1 | 22.8 |
| 20% | 72.2 | 22.8 |
| 10% | 64.0 | 22.8 |
| Active Idle | 56.7 | 22.8 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91G541516 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Calibration Institute: | ETC,TAIWAN |
| Accredited by: | ETC,TAIWAN |
| Calibration Label: | 08-05-BAC-358-03 |
| Date of Calibration: | 22-May-2008 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.2-e0c92e60 |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 4.50.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | -- |

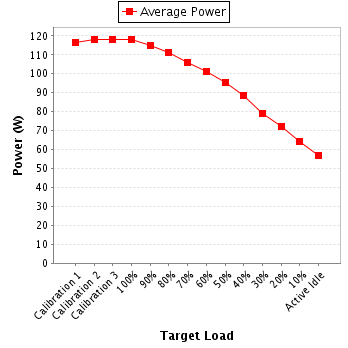

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 223 | 300V | 0.547 | 1A | 0.958 | 117 | -- |
| Calibration 2 | 222 | 300V | 0.555 | 1A | 0.959 | 118 | -- |
| Calibration 3 | 222 | 300V | 0.556 | 1A | 0.960 | 118 | -- |
| 100% | 222 | 300V | 0.555 | 1A | 0.960 | 118 | -- |
| 90% | 222 | 300V | 0.541 | 1A | 0.957 | 115 | -- |
| 80% | 223 | 300V | 0.525 | 1A | 0.952 | 111 | -- |
| 70% | 223 | 300V | 0.504 | 1A | 0.945 | 106 | -- |
| 60% | 223 | 300V | 0.484 | 1A | 0.937 | 101 | -- |
| 50% | 223 | 300V | 0.462 | 1A | 0.927 | 95.3 | -- |
| 40% | 223 | 300V | 0.434 | 1A | 0.915 | 88.6 | -- |
| 30% | 223 | 300V | 0.392 | 1A | 0.902 | 79.1 | -- |
| 20% | 225 | 300V | 0.361 | 1A | 0.888 | 72.2 | -- |
| 10% | 226 | 300V | 0.322 | 1A | 0.879 | 64.0 | -- |
| Active Idle | 226 | 300V | 0.287 | 1A | 0.875 | 56.7 | -- |
