Dell Inc. PowerEdge 2970 (AMD Opteron 2356, 2.30 GHz) ssj_ops@100% = 247,542
ssj_ops@100% per JVM = 123,771
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Single Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Dec 2, 2008
Hardware Availability: Nov-2007 Software Availability: Apr-2008 Publication: Jan 2, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     250,902
Calibration 2     250,537
Calibration 3     250,417
ssj_ops@calibrated=250,477
100% 98.8% 250,477 247,542
90% 91.5% 225,429 229,155
80% 79.8% 200,382 199,958
70% 69.8% 175,334 174,813
60% 60.1% 150,286 150,648
50% 50.3% 125,238 126,027
40% 40.7% 100,191 101,850
30% 30.1% 75,143 75,426
20% 20.0% 50,095 50,116
10% 9.8% 25,048 24,509
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: PowerEdge 2970 (AMD Opteron 2356, 2.30 GHz)
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge 2970 (AMD Opteron 2356, 2.30 GHz)
Form Factor: --
CPU Name: AMD Opteron 2356
CPU Characteristics: Quad-Core, 2.30 GHz, 2 MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 8 (1 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 2 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 4 x 4096 MB
Memory Details: DDR2-667 CL6; Slots A1,A2 and B1,B2 populated
Power Supply Quantity and Rating (W): 1 x 750
Power Supply Details: Dell Part Number GM266
Disk Drive: 1 x 73GB 10K RPM SAS
Disk Controller: SAS 6iR
# and type of Network Interface Cards (NICs) Installed: 2 x Onboard Gigabit NIC
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: Yes
Other Hardware: None
Software
Power Management: Enabled (Server Balanced Power and Performance)
Operating System (OS): Microsoft Windows Server 2003 R2 Enterprise x64 Edition
OS Version: SP2
Filesystem: NTFS
JVM Vendor: Oracle Inc.
JVM Version: Oracle JRockit(R) (build P27.5.0-5-97156-1.6.0_03-20080403-1524-windows-x86_64, compiled mode)
JVM Command-line Options: -Xms3700m -Xns3200m -Xmx3700m -XXaggressive -XXthroughputcompaction -XXlazyunlocking -XXcallprofiling -Xgc:genpar -XXgcthreads=4 -XXtlasize:min=4k,preferred=512k
JVM Affinity: start /affinity [0F,F0]
JVM Instances: 4
JVM Initial Heap (MB): 3700
JVM Maximum Heap (MB): 3700
JVM Address Bits: 64
Boot Firmware Version: --
Management Firmware Version: --
Workload Version: SSJ 1.1.3
Director Location: Controller
Other Software: None
Boot Firmware Settings
--
Management Firmware Settings
--
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
0001.001 122,776
0001.002 124,766
ssj_ops@100% 247,542
ssj_ops@100% per JVM 123,771

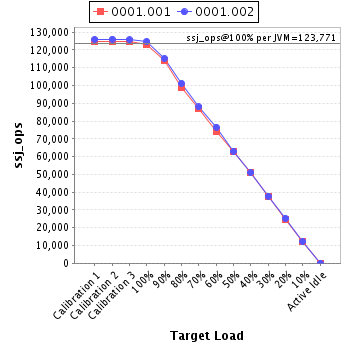

Graph of per-instance results
JVM '0001.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     125,008
Calibration 2     124,484
Calibration 3     124,736
ssj_ops@calibrated=124,610
100% 98.5% 124,610 122,776
90% 91.4% 112,149 113,922
80% 79.3% 99,688 98,806
70% 69.7% 87,227 86,897
60% 59.5% 74,766 74,100
50% 50.5% 62,305 62,909
40% 40.9% 49,844 50,926
30% 30.2% 37,383 37,630
20% 20.0% 24,922 24,866
10% 9.9% 12,461 12,284
Active Idle   0 0

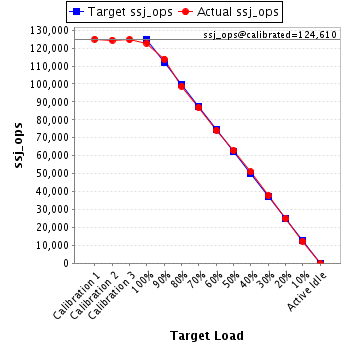

Graph of results
See the JVM Instance Performance Report for additional details.
JVM '0001.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     125,895
Calibration 2     126,053
Calibration 3     125,681
ssj_ops@calibrated=125,867
100% 99.1% 125,867 124,766
90% 91.6% 113,280 115,232
80% 80.4% 100,694 101,152
70% 69.8% 88,107 87,917
60% 60.8% 75,520 76,548
50% 50.1% 62,933 63,118
40% 40.5% 50,347 50,923
30% 30.0% 37,760 37,796
20% 20.1% 25,173 25,250
10% 9.7% 12,587 12,225
Active Idle   0 0

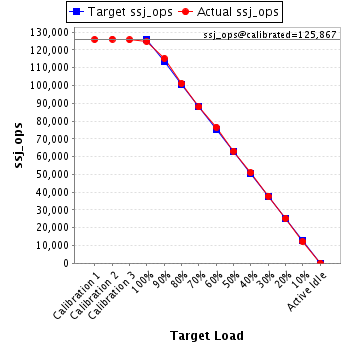

Graph of results
See the JVM Instance Performance Report for additional details.
