SPECpower_ssj2008
Host '0001' Performance Report
Copyright © 2007-2008 Standard Performance Evaluation Corporation
| Hewlett-Packard Company ProLiant DL385 G5p (2.70GHz, AMD Opteron processor 2384) | ssj_ops@100% = 341,306 ssj_ops@100% per JVM = 170,653 |
||||
| Test Sponsor: | Hewlett-Packard Company | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett-Packard Company | Test Location: | Houston, TX | Test Date: | Sep 15, 2008 |
| Hardware Availability: | Nov-2008 | Software Availability: | Apr-2008 | Publication: | Dec 4, 2008 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

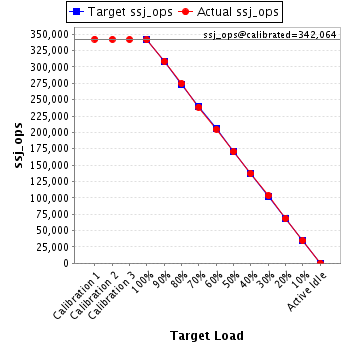

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 342,453 | ||
| Calibration 2 | 342,213 | ||
| Calibration 3 | 341,915 | ||
| ssj_ops@calibrated=342,064 | |||
| 100% | 99.8% | 342,064 | 341,306 |
| 90% | 90.2% | 307,858 | 308,646 |
| 80% | 80.3% | 273,651 | 274,732 |
| 70% | 69.8% | 239,445 | 238,763 |
| 60% | 59.9% | 205,238 | 204,941 |
| 50% | 49.8% | 171,032 | 170,425 |
| 40% | 40.0% | 136,826 | 136,933 |
| 30% | 30.2% | 102,619 | 103,448 |
| 20% | 20.0% | 68,413 | 68,428 |
| 10% | 10.1% | 34,206 | 34,655 |
| Active Idle | 0 | 0 | |
| Set Identifier: | sut |
| Set Description: | ProLiant DL385 G5p (2.70GHz, AMD Opteron processor 2384) |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Hewlett-Packard Company |
| Model: | ProLiant DL385 G5p (2.70GHz, AMD Opteron processor 2384) |
| Form Factor: | -- |
| CPU Name: | AMD Opteron 2384 |
| CPU Characteristics: | 2.7GHz, 6 MB L3 shared |
| CPU Frequency (MHz): | 2700 |
| CPU(s) Enabled: | 8 cores, 2 chips, 4 cores/chip |
| Hardware Threads: | 8 (1 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 64 KB I + 64 KB D on chip per core |
| Secondary Cache: | 512 KB I+D on chip per core |
| Tertiary Cache: | 6 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 8 |
| # and size of DIMM: | 4 x 2048 MB |
| Memory Details: | PC2-6400P CL5; slots 1,2,10,11 populated |
| Power Supply Quantity and Rating (W): | 1 x 1200 |
| Power Supply Details: | HP part # 399542-B21 |
| Disk Drive: | 1 x 120GB HP, 1.5G, 5.4 K RPM 2.5" SATA |
| Disk Controller: | 1 x HP Smart Array P400/256 PCIe |
| # and type of Network Interface Cards (NICs) Installed: | 4 x BCM5709C NIC |
| NICs Enabled in Firmware / OS / Connected: | 4/4/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | Yes |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | HP Dynamic Power Regulator enabled |
| Operating System (OS): | Microsoft Windows Server 2003 x64 Enterprise Edition |
| OS Version: | R2 |
| Filesystem: | NTFS |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | BEA JRockit(R) (build P27.5.0-5-97156-1.6.0_03-20080403-1524-windows-x86_64, compiled mode) |
| JVM Command-line Options: | -Xms3500m -Xmx3500m -Xns3100m -XXaggressive -XlargePages -XXthroughputCompaction -XXcallprofiling -XXlazyUnlocking -Xgc:genpar -XXgcthreads:4 -XXtlasize:min=12k,preferred=1024k |
| JVM Affinity: | Used "start /affinity" with "0xf" and "0xf0" CPU masks. |
| JVM Instances: | 4 |
| JVM Initial Heap (MB): | 3500 |
| JVM Maximum Heap (MB): | 3500 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | -- |
| Management Firmware Version: | -- |
| Workload Version: | SSJ 1.1.3 |
| Director Location: | Controller |
| Other Software: | None |

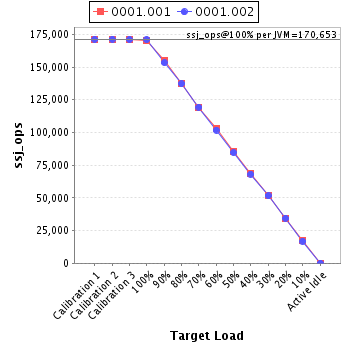

| JVM Instance | ssj_ops@100% |
|---|---|
| 0001.001 | 170,374 |
| 0001.002 | 170,932 |
| ssj_ops@100% | 341,306 |
| ssj_ops@100% per JVM | 170,653 |

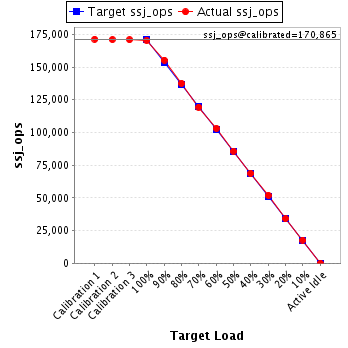

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 171,278 | ||
| Calibration 2 | 170,949 | ||
| Calibration 3 | 170,782 | ||
| ssj_ops@calibrated=170,865 | |||
| 100% | 99.7% | 170,865 | 170,374 |
| 90% | 90.9% | 153,779 | 155,338 |
| 80% | 80.5% | 136,692 | 137,582 |
| 70% | 69.9% | 119,606 | 119,409 |
| 60% | 60.3% | 102,519 | 103,104 |
| 50% | 50.2% | 85,433 | 85,760 |
| 40% | 40.2% | 68,346 | 68,740 |
| 30% | 30.4% | 51,260 | 51,987 |
| 20% | 19.9% | 34,173 | 33,974 |
| 10% | 10.4% | 17,087 | 17,760 |
| Active Idle | 0 | 0 | |

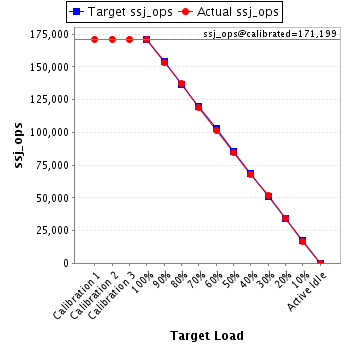

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 171,175 | ||
| Calibration 2 | 171,264 | ||
| Calibration 3 | 171,133 | ||
| ssj_ops@calibrated=171,199 | |||
| 100% | 99.8% | 171,199 | 170,932 |
| 90% | 89.5% | 154,079 | 153,308 |
| 80% | 80.1% | 136,959 | 137,150 |
| 70% | 69.7% | 119,839 | 119,354 |
| 60% | 59.5% | 102,719 | 101,836 |
| 50% | 49.5% | 85,599 | 84,665 |
| 40% | 39.8% | 68,480 | 68,193 |
| 30% | 30.1% | 51,360 | 51,461 |
| 20% | 20.1% | 34,240 | 34,455 |
| 10% | 9.9% | 17,120 | 16,895 |
| Active Idle | 0 | 0 | |
