Hewlett-Packard Company ProLiant DL385 G5 (2.30GHz, AMD Opteron processor 2356) SPECpower_ssj2008 = 498 overall ssj_ops/watt
Test Sponsor: Hewlett-Packard Company SPEC License #: 3 Hardware Availability: Mar-2008
Tested By: Hewlett-Packard Company Test Location: Houston, TX Software Availability: Apr-2008
System Source: Single Supplier Test Date: Nov 4, 2008 Publication: Nov 20, 2008
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Power (W)
100% 99.3% 240,914 299 806
90% 90.7% 219,979 291 756
80% 80.1% 194,276 282 690
70% 70.5% 170,927 271 630
60% 59.9% 145,299 258 562
50% 49.5% 120,062 245 490
40% 40.2% 97,534 232 420
30% 30.2% 73,199 219 334
20% 19.9% 48,386 207 233
10% 9.8% 23,819 197 121
Active Idle 0 178 0
∑ssj_ops / ∑power = 498

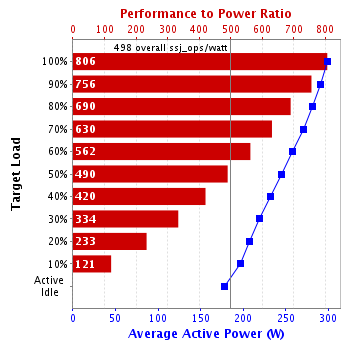

Graph of results
System Under Test
Hardware
Hardware Vendor: Hewlett-Packard Company
Model: ProLiant DL385 G5 (2.30GHz, AMD Opteron processor 2356)
CPU Name: AMD Opteron 2356
CPU Characteristics: 2.3GHz, 512 KB L2, 2 MB L3
CPU Frequency (MHz): 2300
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads / Core: 1
CPU(s) Orderable: 1,2 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 2 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 4 x 2048 MB
Memory Details: PC2-5300P CL5 LP; slots 1,2,5,6 populated
Power Supply Quantity and Rating (W): 1 x 1000
Power Supply Details: HP Part# 379123-001
Disk Drive: 1 x 120GB HP, 1.5G, 5.4 K RPM 2.5" SATA
Disk Controller: 1 x HP Smart Array P400
# and type of Network Interface Cards (NICs) Installed: 2 x NC373i NIC
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: No
Other Hardware: None
Software
Power Management: HP Dynamic Power Regulator enabled
Operating System (OS): Microsoft Windows Server 2003 x64 Enterprise Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: BEA JRockit(R) (build P27.5.0-5-97156-1.6.0_03-20080403-1524-windows-x86_64, compiled mode)
JVM Command-line Options: -Xms3500m -Xmx3500m -Xns3100m -XXaggressive -XlargePages -XXthroughputCompaction -XXcallprofiling -XXlazyUnlocking -Xgc:genpar -XXgcthreads:4 -XXtlasize:min=12k,preferred=1024k
JVM Affinity: Used "start /affinity" with "0xf" and "0xf0" CPU masks.
JVM Instances: 2
JVM Initial Heap (MB): 3500
JVM Maximum Heap (MB): 3500
JVM Address Bits: 64
Benchmark Version: SPECpower_ssj2008 1.1.3
Director Location: Controller
Other Software: None
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Hewlett Packard
Model: ProLiant DL360 G5
CPU Description: Intel Xeon E5440
Memory amount (GB): 1
Software
Operating System (OS): Windows 2003 R2 Enterprise Edition
JVM Vendor: Oracle Corporation
JVM Version: java version "1.6.0"
CCS Version: 1.1.3
Measurement Devices
Power Analyzer
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91GB47169
Connectivity: GPIB
Input Connection: Default
Voltage Range: 300
Current Range: 2
Calibration Institute: NIST
Accredited by: Yokogawa Electric International Pte. Ltd.
Calibration Label: 07-1739
Date of Calibration: 20-Dec-2007
PTDaemon Host System: Controller
PTDaemon Host OS: Controller
PTDaemon Version: 1.3.2-e0c92e60
Temperature Sensor
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 4.50.0.0
Connectivity: USB
PTDaemon Host System: Controller
PTDaemon Host OS: Controller
Notes
Electrical and Environmental Data
Target Load Electrical Data Environmental Data
Average Voltage (V) Average Current (A) Average Power Factor Average Power (W) Minimum Ambient Temperature (°C)
100% 207 1.51 0.958 299 21.0
90% 207 1.47 0.958 291 20.6
80% 207 1.42 0.956 282 20.6
70% 207 1.37 0.955 271 20.5
60% 207 1.31 0.952 258 20.4
50% 207 1.25 0.949 245 20.4
40% 207 1.19 0.947 232 20.4
30% 207 1.12 0.943 219 20.4
20% 207 1.07 0.939 207 20.4
10% 207 1.02 0.935 197 20.4
Active Idle 207 0.928 0.927 178 20.4
Line Standard Average Power Factor Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 0.947 20.4 132
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     246,803
Calibration 2     242,229
Calibration 3     242,937
ssj_ops@calibrated=242,583
100% 99.3% 242,583 240,914
90% 90.7% 218,325 219,979
80% 80.1% 194,067 194,276
70% 70.5% 169,808 170,927
60% 59.9% 145,550 145,299
50% 49.5% 121,292 120,062
40% 40.2% 97,033 97,534
30% 30.2% 72,775 73,199
20% 19.9% 48,517 48,386
10% 9.8% 24,258 23,819
Active Idle   0 0

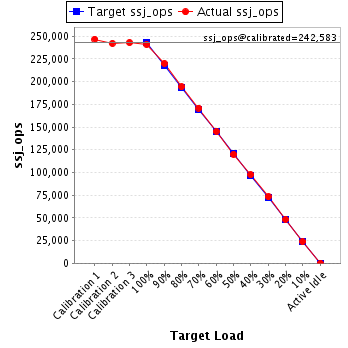

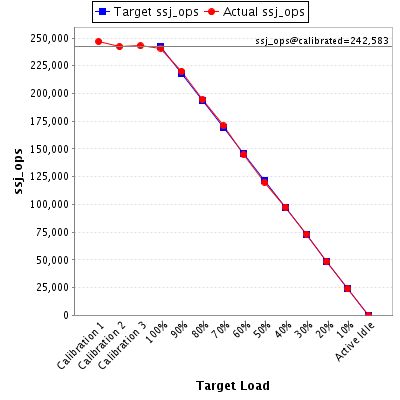

Graph of results
See the Aggregate Performance Report for additional details.
