SPECpower_ssj2008
Copyright © 2007-2008 Standard Performance Evaluation Corporation
| ASUSTeK Computer Inc. ASUS RS160-E5 (Intel Xeon L5420 Processor, 2.50 GHz) | SPECpower_ssj2008 = 1,009 overall ssj_ops/watt | ||||
| Test Sponsor: | ASUSTeK Company Inc. | SPEC License #: | 9016 | Test Method: | Single Node |
| Tested By: | ASUSTeK Company Inc. | Test Location: | Taipei, Taiwan R.O.C. | Test Date: | Oct 30, 2008 |
| Hardware Availability: | Oct-2008 | Software Availability: | Sep-2008 | Publication: | Nov 20, 2008 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.6% | 270,621 | 170 | 1,592 |
| 90% | 89.7% | 243,781 | 166 | 1,473 |
| 80% | 79.9% | 217,287 | 160 | 1,356 |
| 70% | 70.0% | 190,374 | 154 | 1,234 |
| 60% | 60.4% | 164,101 | 148 | 1,112 |
| 50% | 50.3% | 136,642 | 140 | 979 |
| 40% | 40.4% | 109,715 | 131 | 839 |
| 30% | 30.0% | 81,424 | 121 | 675 |
| 20% | 20.1% | 54,513 | 110 | 495 |
| 10% | 10.2% | 27,828 | 99.0 | 281 |
| Active Idle | 0 | 86.0 | 0 | |
| ∑ssj_ops / ∑power = | 1,009 | |||
| Set Identifier: | sut |
| Set Description: | ASUS RS160-E5 (Intel Xeon L5420 Processor, 2.50 GHz) |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | ASUSTeK Computer Inc. |
| Model: | ASUS RS160-E5 (Intel Xeon L5420 Processor, 2.50 GHz) |
| Form Factor: | -- |
| CPU Name: | Intel Xeon L5420 |
| CPU Characteristics: | 2.50 GHz, 2 x 6MB L2 Cache, 1333 MHz System Bus |
| CPU Frequency (MHz): | 2500 |
| CPU(s) Enabled: | 8 cores, 2 chips, 4 cores/chip |
| Hardware Threads: | 8 (1 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| Tertiary Cache: | None |
| Other Cache: | None |
| Memory Amount (GB): | 8 |
| # and size of DIMM: | 2 x 4096 MB |
| Memory Details: | DDR2-667 CL5 DIMM; Slots A1 and B1 are populated |
| Power Supply Quantity and Rating (W): | 1 x 460 |
| Power Supply Details: | FSP FSP460-701UG |
| Disk Drive: | 1 x Hitachi (3.5", SATA, 80 GB, 7.2K RPM) |
| Disk Controller: | Integrated ICH-9R SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 2 x Broadcom BCM5721 Gigabit Ethernet controllers (onboard) |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | Yes |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Enabled (Server Balanced Power and Performance) |
| Operating System (OS): | Windows Server 2003 R2, Enterprise x64 Edition |
| OS Version: | Service Pack 2 Build 3790 |
| Filesystem: | NTFS |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | BEA JRockit(R) (build R27.5.0-110_CR366951-97327-1.5.0_14-20080408-1708-windows-x86_64, compiled mode) |
| JVM Command-line Options: | -Xms1700m -Xns1300m -Xmx1700m -XXaggressive -XXthroughputcompaction -XXlazyunlocking -XXcallprofiling -Xgc:genpar -XXgcthreads=2 -XXtlasize:min=4k,preferred=512k |
| JVM Affinity: | start /affinity [0x3,0xc,0x30,0xc0] |
| JVM Instances: | 8 |
| JVM Initial Heap (MB): | 1700 |
| JVM Maximum Heap (MB): | 1700 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | -- |
| Management Firmware Version: | -- |
| Workload Version: | SSJ 1.1.3 |
| Director Location: | Controller |
| Other Software: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | ASUSTeK Computer Inc. |
| Model: | RS120-E3 |
| CPU Description: | Intel Pentium D 920 Processor |
| Memory amount (GB): | 1 |
| Software | |
|---|---|
| Operating System (OS): | Windows Server 2003 R2, Enterprise Edition with SP2 |
| JVM Vendor: | BEA Systems, Inc. |
| JVM Version: | BEA JRockit(R) (build R27.5.0-110-94909-1.6.0_03-20080204-1558-windows-ia32, compiled mode) |
| CCS Version: | 1.1.3 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91G541516 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Calibration Institute: | ETC,TAIWAN |
| Accredited by: | ETC,TAIWAN |
| Calibration Label: | 08-05-BAC-358-03 |
| Date of Calibration: | 22-May-2008 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.3.2-e0c92e60 |
| Setup Description: | -- |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 4.50.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | -- |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 170 | 22.3 |
| 90% | 166 | 22.3 |
| 80% | 160 | 22.3 |
| 70% | 154 | 22.3 |
| 60% | 148 | 22.3 |
| 50% | 140 | 22.3 |
| 40% | 131 | 22.3 |
| 30% | 121 | 22.3 |
| 20% | 110 | 22.3 |
| 10% | 99.0 | 22.3 |
| Active Idle | 86.0 | 22.3 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 220V / 60 Hz / 1 phase / 2 wires | 22.3 | 18 |

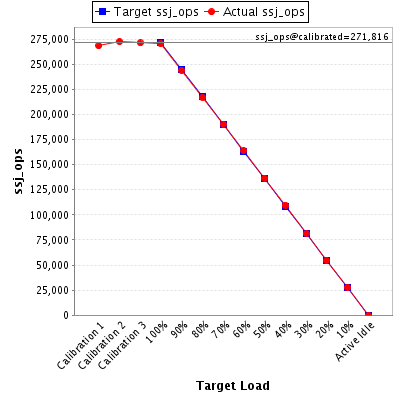

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 268,273 | ||
| Calibration 2 | 272,487 | ||
| Calibration 3 | 271,145 | ||
| ssj_ops@calibrated=271,816 | |||
| 100% | 99.6% | 271,816 | 270,621 |
| 90% | 89.7% | 244,635 | 243,781 |
| 80% | 79.9% | 217,453 | 217,287 |
| 70% | 70.0% | 190,271 | 190,374 |
| 60% | 60.4% | 163,090 | 164,101 |
| 50% | 50.3% | 135,908 | 136,642 |
| 40% | 40.4% | 108,726 | 109,715 |
| 30% | 30.0% | 81,545 | 81,424 |
| 20% | 20.1% | 54,363 | 54,513 |
| 10% | 10.2% | 27,182 | 27,828 |
| Active Idle | 0 | 0 | |
