SPECpower_ssj2008

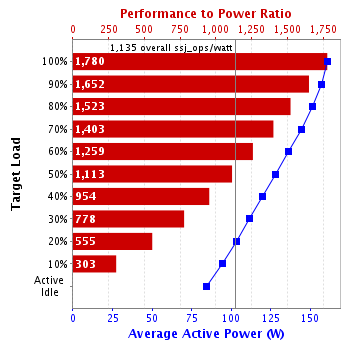

Powerleader PR2510D2				SPECpower_ssj2008 = 1,135 overall ssj_ops/watt
Test Sponsor:	Powerleader Company	SPEC License #:	3494	Hardware Availability:	Sep-2008
Tested By:	Powerleader Company	Test Location:	Shenzhen,Guangdong,China	Software Availability:	Jul-2008
System Source:	Single Supplier	Test Date:	Sep 22, 2008	Publication:	Oct 14, 2008

Hardware
Hardware Vendor:	Powerleader
Model:	PR2510D2
CPU Name:	Intel Xeon L5430
CPU Characteristics:	2.66GHz, 2x6MB L2 shared, 1333MHz system bus
CPU Frequency (MHz):	2660
CPU(s) Enabled:	8 cores, 2 chips, 4 cores/chip
Hardware Threads / Core:	1
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	12 MB I+D on chip per chip, 6 MB shared/2 cores
Tertiary Cache:	None
Other Cache:	None
Memory Amount (GB):	8
# and size of DIMM:	2 x 4096 MB
Memory Details:	DDR2-667 CL5;slots 1, 2, populated
Power Supply Quantity and Rating (W):	1 x 500
Power Supply Details:	Powerleader P/N:10500038 EFAP-S502
Disk Drive:	1 x 250GB 7200 RPM SATA Westen Digital
Disk Controller:	Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed:	2 x Onboard Gigabit
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	KVM
Mouse:	KVM
Monitor:	KVM
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (Server Balanced Power and Performance)
Operating System (OS):	Microsoft Windows Server 2003 Enterprise x64 Edition Service Pack 1
OS Version:	SP1 (64-bit)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle JRockit(R) (build P27.5.0-5_o_CR371811_CR374296-100684-1.6.0_03-20080702-1651-windows-x86_64, compiled mode)
JVM Command-line Options:	-Xms3500m -Xmx3500m -Xns3100m -XXaggressive -XXlargePages -XXthroughputCompaction -XXcallprofiling -XXlazyUnlocking -Xgc:genpar -XXgcthreads:4 -XXtlasize:min=12k,preferred=1024k
JVM Affinity:	start /affinity [0F,F0]
JVM Instances:	2
JVM Initial Heap (MB):	3500
JVM Maximum Heap (MB):	3500
JVM Address Bits:	64
Benchmark Version:	SPECpower_ssj2008 1.1.3
Director Location:	Controller
Other Software:	None

Each JVM instance was affinitized to a socket.
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
C1 Enhanced Mode Enabled in BIOS.
Hardware Prefetch Disabled in BIOS.
Adjacent Cache Line Prefetch Disabled in BIOS.
Intel EIST support Enabled in BIOS.
Fan speed control Mode 4-pin (server) in BIOS

Software
Operating System (OS):	Microsoft Windows Server 2003 Enterprise Edition Server Pack 1
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle JRockit(R) (build P27.5.0-5_o_CR371811_CR374296-100684-1.6.0_03-20080702-1651-windows-x86_64, compiled mode)
CCS Version:	1.1.3

Power Analyzer
Hardware Vendor:	Yokogawa Electric International Pte. Ltd.
Model:	WT210
Serial Number:	91H330404
Connectivity:	RS-232
Input Connection:	Default
Voltage Range:	300
Current Range:	2
Calibration Institute:	CNAS
Accredited by:	Shenzhen Calibration Station of Aqsiq
Calibration Label:	082012072
Date of Calibration:	04-Aug-2008
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.3.2-e0c92e60

None

Target Load	Electrical Data				Environmental Data
Target Load	Average Voltage (V)	Average Current (A)	Average Power Factor	Average Power (W)	Minimum Ambient Temperature (°C)
100%	213	0.806	0.935	161	22.3
90%	213	0.790	0.932	157	22.3
80%	213	0.766	0.928	151	22.3
70%	212	0.739	0.923	144	22.2
60%	212	0.702	0.915	136	22.1
50%	212	0.666	0.906	128	21.9
40%	212	0.627	0.897	120	21.8
30%	213	0.592	0.887	112	21.7
20%	213	0.556	0.875	104	21.7
10%	213	0.516	0.860	94.6	21.7
Active Idle	213	0.470	0.843	84.6	21.6

Line Standard	Average Power Factor	Minimum Temperature (°C)	Elevation (m)
220V / 50 Hz / 1 phase / 1 wire	0.900	21.6	70

See the Aggregate Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SPECpower_ssj2008 1.1.3, May 15, 2008]
