Fujitsu Siemens Computers PRIMERGY RX300 S4 (Intel Xeon L5430) ssj_ops@100% = 299,432
ssj_ops@100% per JVM = 74,858
Test Sponsor: Fujitsu Siemens Computers SPEC License #: 22 Test Method: Single Node
Tested By: Fujitsu Siemens Computers Test Location: Paderborn, NRW, Germany Test Date: Aug 20, 2008
Hardware Availability: Sep-2008 Software Availability: Jul-2008 Publication: Sep 10, 2008
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     298,494
Calibration 2     301,645
Calibration 3     302,613
ssj_ops@calibrated=302,129
100% 99.1% 302,129 299,432
90% 90.3% 271,916 272,807
80% 80.4% 241,703 242,910
70% 70.6% 211,490 213,244
60% 59.6% 181,278 180,156
50% 50.5% 151,065 152,621
40% 40.1% 120,852 121,076
30% 30.3% 90,639 91,454
20% 20.0% 60,426 60,366
10% 9.9% 30,213 29,972
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: PRIMERGY RX300 S4 (Intel Xeon L5430)
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Fujitsu Siemens Computers
Model: PRIMERGY RX300 S4 (Intel Xeon L5430)
Form Factor: --
CPU Name: Intel Xeon L5430
CPU Characteristics: 2.66GHz, 2x6MB L2 cache, 1333MHz system bus
CPU Frequency (MHz): 2667
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 8 (1 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
Tertiary Cache: None
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 4 x 2048 MB
Memory Details: PC2-5300F 2Rx8 (CAS 5-5-5)
Power Supply Quantity and Rating (W): 1 x 700
Power Supply Details: DPS-700KB B
Disk Drive: 1 x Seagate (3.5", SATA, 160GB, 7.2krpm)
Disk Controller: LSI Logic integrated SAS 3000 series, 8-port with 1068E
# and type of Network Interface Cards (NICs) Installed: 2 x Broadcom BCM5708C NetXtreme II GigE (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (Server Balanced Processor Power and Performance)
Operating System (OS): Microsoft Windows Server 2003 R2 Enterprise x64 Edition
OS Version: Version 5.2.3790 Service Pack 1 Build 3790
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle JRockit(R) 6.0 P27.5.0 (build P27.5.0-5_o_CR371811_CR374296-100684-1.6.0_03-20080702-1651-windows-x86_64)
JVM Command-line Options: -Xms1700m -Xmx1700m -Xns1500m -XXaggressive -Xlargepages -Xgc:genpar -XXcallprofiling -XXgcthreads=2 -XXtlasize:min=4k,preferred=1024k -XXthroughputcompaction
JVM Affinity: start /affinity [0x03,0x30,0x0C,0xC0]
JVM Instances: 8
JVM Initial Heap (MB): 1700
JVM Maximum Heap (MB): 1700
JVM Address Bits: 64
Boot Firmware Version: --
Management Firmware Version: --
Workload Version: SSJ 1.1.3
Director Location: Controller
Other Software: None
Boot Firmware Settings
--
Management Firmware Settings
--
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
0001.001 75,131
0001.002 75,072
0001.003 74,464
0001.004 74,764
ssj_ops@100% 299,432
ssj_ops@100% per JVM 74,858

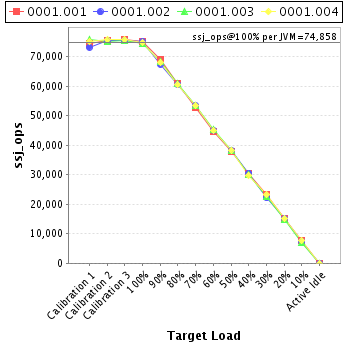

Graph of per-instance results

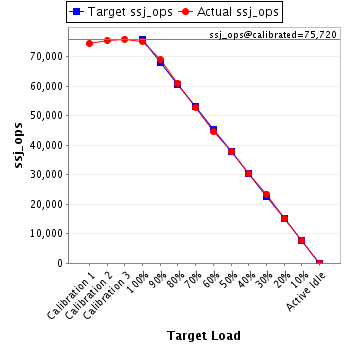

JVM '0001.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     74,477
Calibration 2     75,506
Calibration 3     75,935
ssj_ops@calibrated=75,720
100% 99.2% 75,720 75,131
90% 91.1% 68,148 69,015
80% 80.6% 60,576 61,025
70% 69.8% 53,004 52,817
60% 58.9% 45,432 44,627
50% 50.1% 37,860 37,971
40% 40.1% 30,288 30,392
30% 31.0% 22,716 23,466
20% 20.0% 15,144 15,145
10% 10.2% 7,572 7,722
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM '0001.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     73,243
Calibration 2     75,334
Calibration 3     75,477
ssj_ops@calibrated=75,406
100% 99.6% 75,406 75,072
90% 89.5% 67,865 67,456
80% 80.4% 60,324 60,647
70% 71.0% 52,784 53,550
60% 59.8% 45,243 45,118
50% 50.5% 37,703 38,112
40% 40.5% 30,162 30,567
30% 29.4% 22,622 22,161
20% 20.0% 15,081 15,087
10% 9.8% 7,541 7,379
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

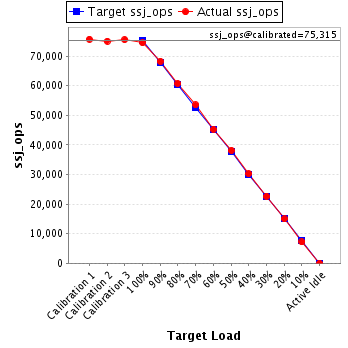

JVM '0001.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     75,734
Calibration 2     75,089
Calibration 3     75,540
ssj_ops@calibrated=75,315
100% 98.9% 75,315 74,464
90% 90.7% 67,783 68,291
80% 80.7% 60,252 60,759
70% 71.0% 52,720 53,502
60% 60.1% 45,189 45,292
50% 50.7% 37,657 38,166
40% 40.1% 30,126 30,216
30% 30.1% 22,594 22,691
20% 19.9% 15,063 14,977
10% 9.6% 7,531 7,204
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM '0001.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     75,041
Calibration 2     75,716
Calibration 3     75,661
ssj_ops@calibrated=75,688
100% 98.8% 75,688 74,764
90% 89.9% 68,120 68,045
80% 79.9% 60,551 60,479
70% 70.5% 52,982 53,375
60% 59.6% 45,413 45,120
50% 50.7% 37,844 38,372
40% 39.5% 30,275 29,901
30% 30.6% 22,707 23,136
20% 20.0% 15,138 15,158
10% 10.1% 7,569 7,668
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
