IBM Corporation IBM System x3350 ssj_ops@100% = 187,946
ssj_ops@100% per JVM = 93,973
Test Sponsor: IBM Corporation SPEC License #: 11 Hardware Availability: Sep-2008
Tested By: IBM Corporation Test Location: Taipei, Taiwan Software Availability: Jun-2008
System Source: Single Supplier Test Date: Jul 23, 2008 Publication: Unpublished
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     185,615
Calibration 2     189,332
Calibration 3     188,768
ssj_ops@calibrated=189,050
100% 99.4% 189,050 187,946
90% 90.5% 170,145 170,999
80% 79.7% 151,240 150,620
70% 70.1% 132,335 132,438
60% 59.4% 113,430 112,354
50% 50.6% 94,525 95,734
40% 40.4% 75,620 76,373
30% 30.6% 56,715 57,755
20% 19.9% 37,810 37,640
10% 10.0% 18,905 18,894
Active Idle   0 0
Graph of results
System Under Test
Hardware
Hardware Vendor: IBM Corporation
Model: IBM System x3350
CPU Name: Intel Xeon X3360
CPU Characteristics: Quad-Core, 2.83GHz, 12MB L2 Cache
CPU Frequency (MHz): 2830
CPU(s) Enabled: 4 cores, 1 chips, 4 cores/chip
Hardware Threads / Core: 1
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 6 MB I+D on chip per chip
Tertiary Cache: None
Other Cache: None
Memory Amount (GB): 4
# and size of DIMM: 2 x 2048 MB
Memory Details: PC2-6400E; slots 1 and 3 populated
Power Supply Quantity and Rating (W): 1 x 450
Power Supply Details: IBM P/N: 39Y7195
Disk Drive: 1 x 160GB 7.3K RPM SATA
Disk Controller: Onboard SATA controller
# and type of Network Interface Cards (NICs) Installed: 2 x Broadcom onboard NIC
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: Yes
Other Hardware: None
Software
Power Management: Server Balanced Processor Power and Performance
Operating System (OS): Windows Server 2003 Enterprise Edition SP1
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 2.4, JRE 1.6.0 Windows 64 (build pwa6460sr1-20080419_01)
JVM Command-line Options: -Xcompressedrefs -Xlp -Xgcpolicy:gencon -Xmn1000m -Xms1475m -Xmx1475m -XlockReservation -Xnoloa
JVM Affinity: start /affinity [03,0C]
JVM Instances: 2
JVM Initial Heap (MB): 1475
JVM Maximum Heap (MB): 1475
JVM Address Bits: 64
Benchmark Version: SPECpower_ssj2008 1.1
Director Location: Controller
Other Software: None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
0001.001 94,133
0001.002 93,813
ssj_ops@100% 187,946
ssj_ops@100% per JVM 93,973

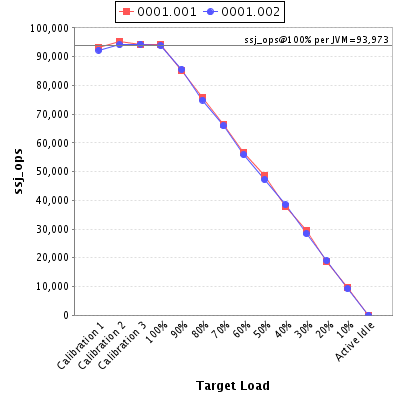

Graph of per-instance results
JVM 0001.001 Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,367
Calibration 2     95,238
Calibration 3     94,414
ssj_ops@calibrated=94,826
100% 99.3% 94,826 94,133
90% 90.0% 85,343 85,360
80% 79.8% 75,861 75,708
70% 70.2% 66,378 66,527
60% 59.6% 56,896 56,502
50% 51.2% 47,413 48,514
40% 40.0% 37,930 37,893
30% 31.0% 28,448 29,360
20% 19.7% 18,965 18,652
10% 10.1% 9,483 9,607
Active Idle   0 0

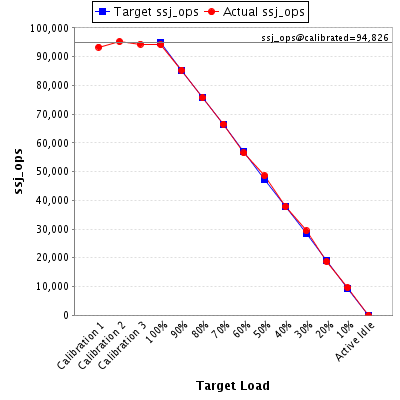

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 0001.002 Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,248
Calibration 2     94,094
Calibration 3     94,354
ssj_ops@calibrated=94,224
100% 99.6% 94,224 93,813
90% 90.9% 84,801 85,639
80% 79.5% 75,379 74,912
70% 70.0% 65,957 65,911
60% 59.3% 56,534 55,852
50% 50.1% 47,112 47,219
40% 40.8% 37,690 38,480
30% 30.1% 28,267 28,395
20% 20.2% 18,845 18,987
10% 9.9% 9,422 9,287
Active Idle   0 0

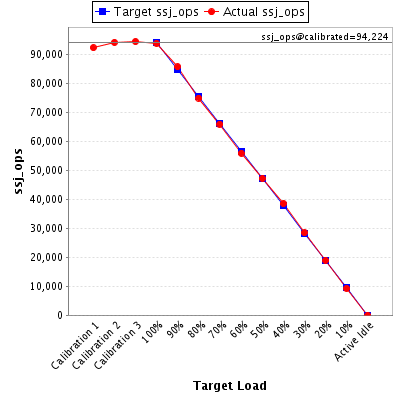

Graph of results
See the JVM Instance Performance Report for additional details.
