SPECpower_ssj2008
Copyright © 2008 Standard Performance Evaluation Corporation
| IBM Corporation IBM System x3250 M2 | SPECpower_ssj2008 = 940 overall ssj_ops/watt | ||||
| Test Sponsor: | IBM Corporation | SPEC License #: | 11 | Hardware Availability: | Aug-2008 |
| Tested By: | IBM Corporation | Test Location: | Taipei, Taiwan | Software Availability: | Jun-2008 |
| System Source: | Single Supplier | Test Date: | Jul 22, 2008 | Publication: | Aug 27, 2008 |

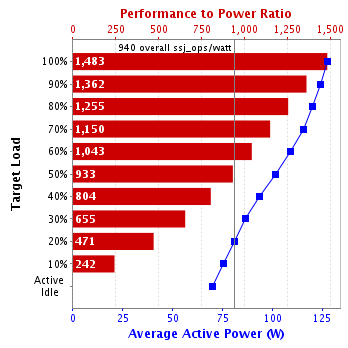

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Power (W) | |
| 100% | 100.0% | 188,975 | 127 | 1,483 |
| 90% | 89.3% | 168,787 | 124 | 1,362 |
| 80% | 79.8% | 150,801 | 120 | 1,255 |
| 70% | 70.4% | 133,049 | 116 | 1,150 |
| 60% | 60.2% | 113,856 | 109 | 1,043 |
| 50% | 50.2% | 94,836 | 102 | 933 |
| 40% | 39.7% | 75,107 | 93.4 | 804 |
| 30% | 29.9% | 56,450 | 86.2 | 655 |
| 20% | 20.1% | 37,985 | 80.7 | 471 |
| 10% | 9.7% | 18,275 | 75.5 | 242 |
| Active Idle | 0 | 70.0 | 0 | |
| ∑ssj_ops / ∑power = | 940 | |||
| Hardware | |
|---|---|
| Hardware Vendor: | IBM Corporation |
| Model: | IBM System x3250 M2 |
| CPU Name: | Intel Xeon X3360 |
| CPU Characteristics: | Quad-Core, 2.83GHz, 12MB L2 Cache |
| CPU Frequency (MHz): | 2830 |
| CPU(s) Enabled: | 4 cores, 1 chips, 4 cores/chip |
| Hardware Threads / Core: | 1 |
| CPU(s) Orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| Tertiary Cache: | None |
| Other Cache: | None |
| Memory Amount (GB): | 4 |
| # and size of DIMM: | 2 x 2048 MB |
| Memory Details: | PC2-6400E; slots 1 and 3 populated |
| Power Supply Quantity and Rating (W): | 1 x 350 |
| Power Supply Details: | IBM P/N: 39Y7288 |
| Disk Drive: | 1 x 160GB 7.3K RPM SATA |
| Disk Controller: | Onboard SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 2 x Broadcom onboard NIC |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | Yes |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Server Balanced Processor Power and Performance |
| Operating System (OS): | Windows Server 2003 Enterprise Edition SP1 |
| OS Version: | R2 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 2.4, JRE 1.6.0 Windows 64 (build pwa6460sr1-20080419_01) |
| JVM Command-line Options: | -Xcompressedrefs -Xlp -Xgcpolicy:gencon -Xmn1000m -Xms1475m -Xmx1475m -XlockReservation -Xnoloa |
| JVM Affinity: | start /affinity [03,0C] |
| JVM Instances: | 2 |
| JVM Initial Heap (MB): | 1475 |
| JVM Maximum Heap (MB): | 1475 |
| JVM Address Bits: | 64 |
| Benchmark Version: | SPECpower_ssj2008 1.1 |
| Director Location: | Controller |
| Other Software: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | IBM Corporation |
| Model: | ThinkCentre |
| CPU Description: | Intel Pentum 4 |
| Memory amount (GB): | 0.5 |
| Software | |
|---|---|
| Operating System (OS): | Windows XP Professional Edition |
| JVM Vendor: | IBM Corporation |
| JVM Version: | J9VM build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows XP x86-32 |
| CCS Version: | 1.1 |
| Power Analyzer | |
|---|---|
| Hardware Vendor: | YOKOGAWA, Inc. |
| Model: | WT210 |
| Serial Number: | 91H245649 |
| Connectivity: | RS-232 |
| Calibration Institute: | NML/ROC |
| Accredited by: | ETC, Taiwan |
| Calibration Label: | 08-04-BAC-068-02 |
| Date of Calibration: | 8-Apr-2008 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.1-45c8e665 |
| Temperature Sensor | |
|---|---|
| Hardware Vendor: | Digi International |
| Model: | Watchport/H |
| Driver Version: | 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Target Load | Electrical Data | Environmental Data | |||
|---|---|---|---|---|---|
| Average Voltage (V) | Average Current (A) | Average Power Factor | Average Power (W) | Minimum Ambient Temperature (°C) | |
| 100% | 209 | 0.682 | 0.891 | 127 | 27.1 |
| 90% | 210 | 0.666 | 0.888 | 124 | 27.1 |
| 80% | 210 | 0.649 | 0.883 | 120 | 27.1 |
| 70% | 210 | 0.629 | 0.878 | 116 | 27.1 |
| 60% | 209 | 0.599 | 0.869 | 109 | 27.1 |
| 50% | 209 | 0.565 | 0.859 | 102 | 27.1 |
| 40% | 209 | 0.526 | 0.849 | 93.4 | 27.1 |
| 30% | 209 | 0.491 | 0.839 | 86.2 | 27.1 |
| 20% | 209 | 0.464 | 0.831 | 80.7 | 27.1 |
| 10% | 209 | 0.439 | 0.821 | 75.5 | 27.1 |
| Active Idle | 209 | 0.412 | 0.812 | 70.0 | 27.1 |
| Line Standard | Average Power Factor | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|---|
| 208V / 60 Hz / 1 phase / 2 wires | 0.856 | 27.1 | 63 |

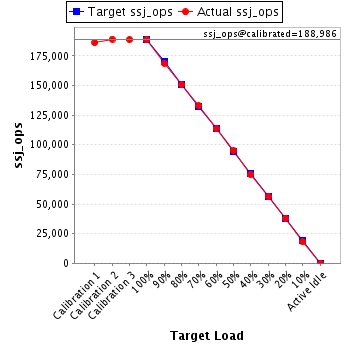

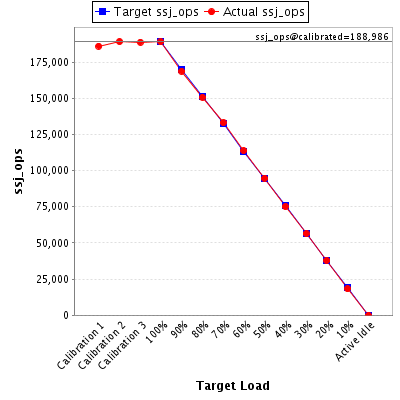

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 186,126 | ||
| Calibration 2 | 189,156 | ||
| Calibration 3 | 188,817 | ||
| ssj_ops@calibrated=188,986 | |||
| 100% | 100.0% | 188,986 | 188,975 |
| 90% | 89.3% | 170,087 | 168,787 |
| 80% | 79.8% | 151,189 | 150,801 |
| 70% | 70.4% | 132,290 | 133,049 |
| 60% | 60.2% | 113,392 | 113,856 |
| 50% | 50.2% | 94,493 | 94,836 |
| 40% | 39.7% | 75,594 | 75,107 |
| 30% | 29.9% | 56,696 | 56,450 |
| 20% | 20.1% | 37,797 | 37,985 |
| 10% | 9.7% | 18,899 | 18,275 |
| Active Idle | 0 | 0 | |
